AFAM chain kit for Triumph Speedmaster 865 2017 520 XMR3 chain kit

AFAM chain kit for Triumph Speedmaster 865 2017 520 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless stated otherwise: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Speedmaster 865 986ML2 2017-2017 chain kit

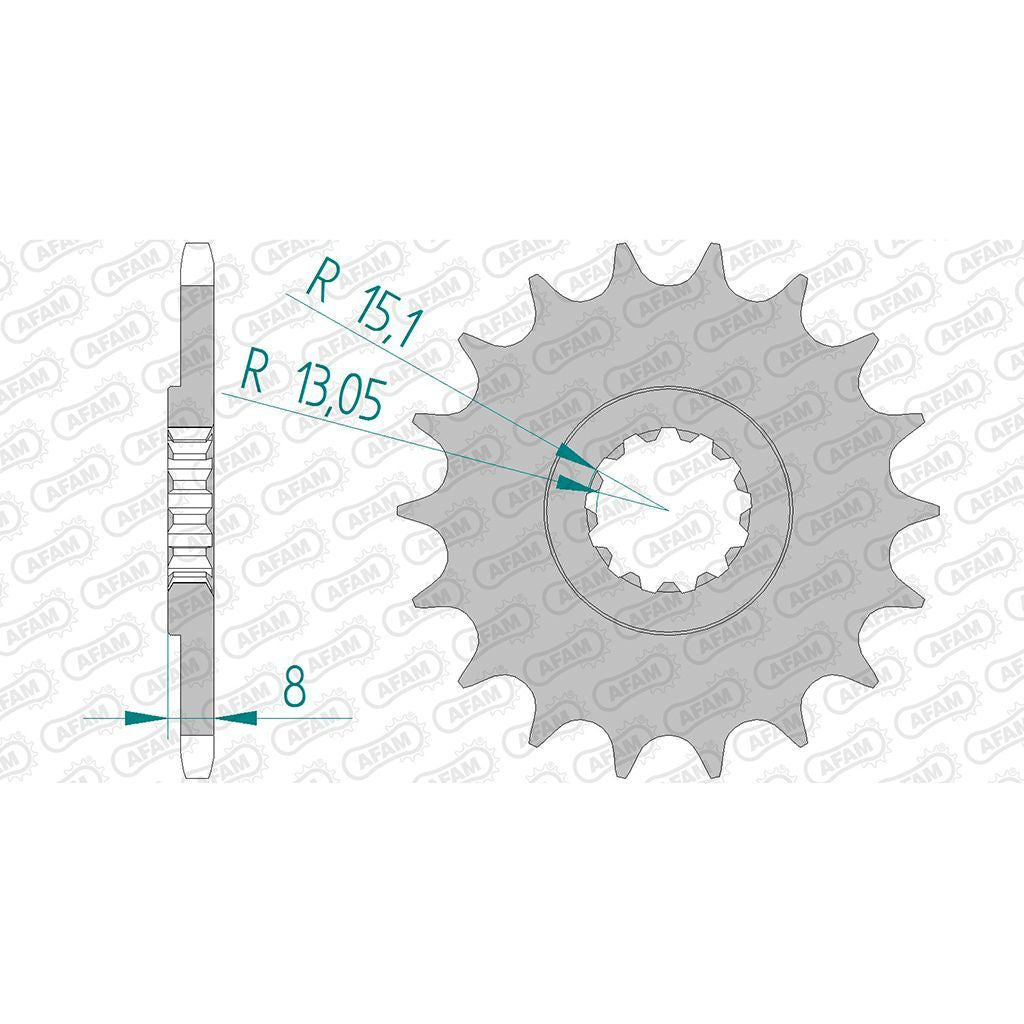

• Front sprocket: AFAM front sprocket #520 18 teeth - a88802.18

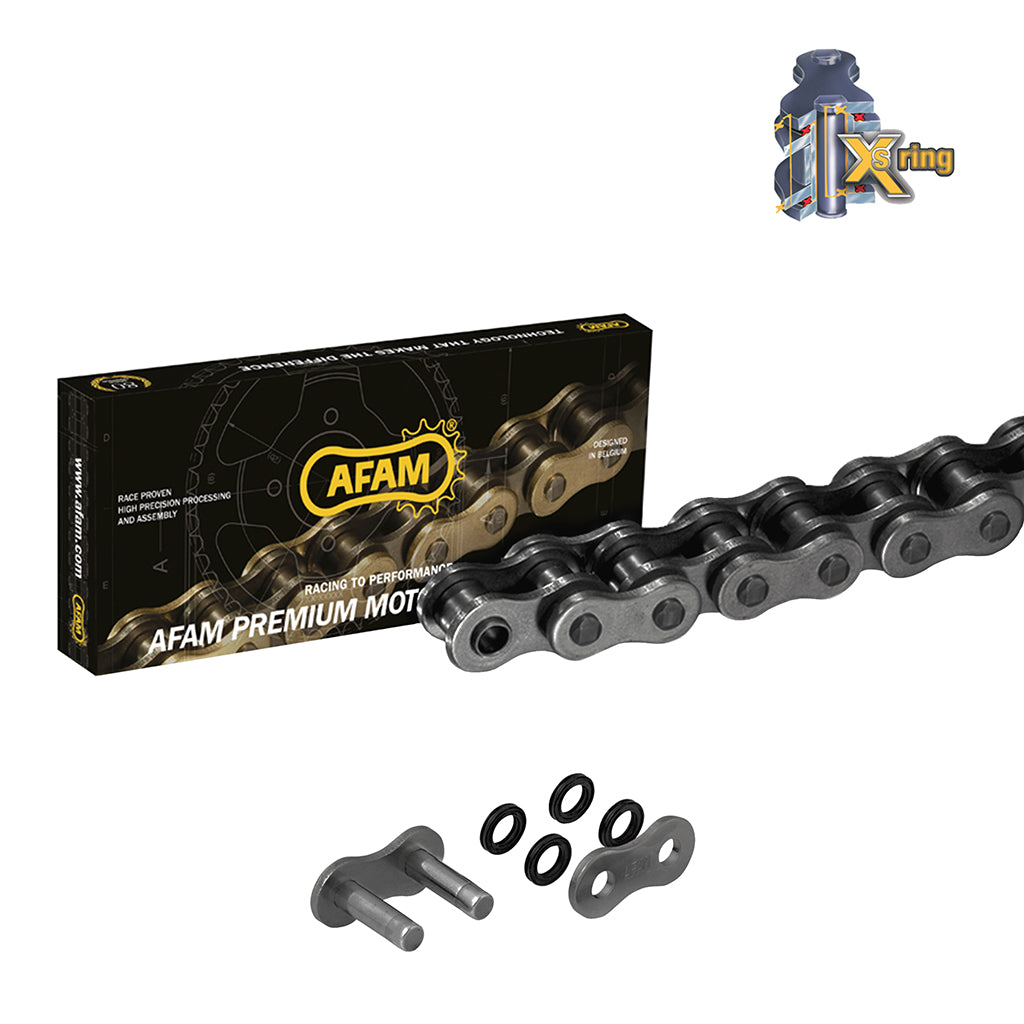

• Chain: AFAM chain 520 XMR3 Xs-ring 112 with rivet link - a520xmr3.112

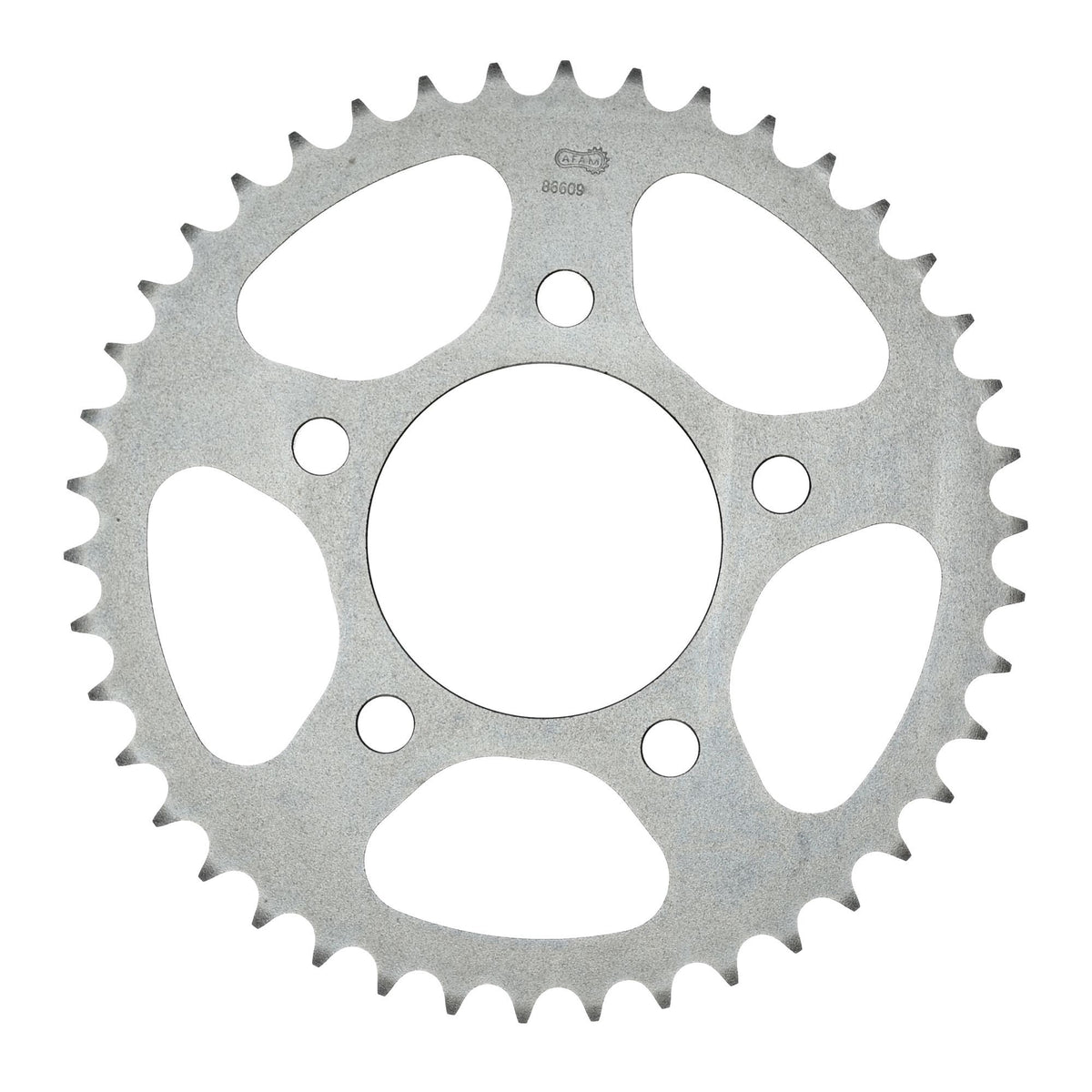

• Rear sprocket: AFAM STEEL rear sprocket #520 42 teeth - a86609.42
• Gear ratio front sprocket-chain-rear sprocket: 18-112-42

AFAM 520 XMR3

Reinforced chain with smooth-running characteristics
Xs-ring chain
Color: Steel
Application by displacement: up to 650 cc / street

Technical specifications:
Pitch: 520
Pin length: 21.40 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.90 kg

Unless stated otherwise: The offered product is an accessory/spare part from a third-party manufacturer that was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-52851

Suitable for

Triumph 751 - 1000 cc Speedmaster 865 986ML2 2017
