AFAM chain kit for Triumph Sprint 900 Sport 1997 530 XHR2G chain kit

AFAM Chain Kit for Triumph Sprint 900 Sport 1997 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer name mentioned only to indicate compatibility!

Components of the chain kit Triumph Sprint 900 Sport T300A 1997-1997

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 17 teeth - a88800.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 w. rivet link - a530xhr2.g.110

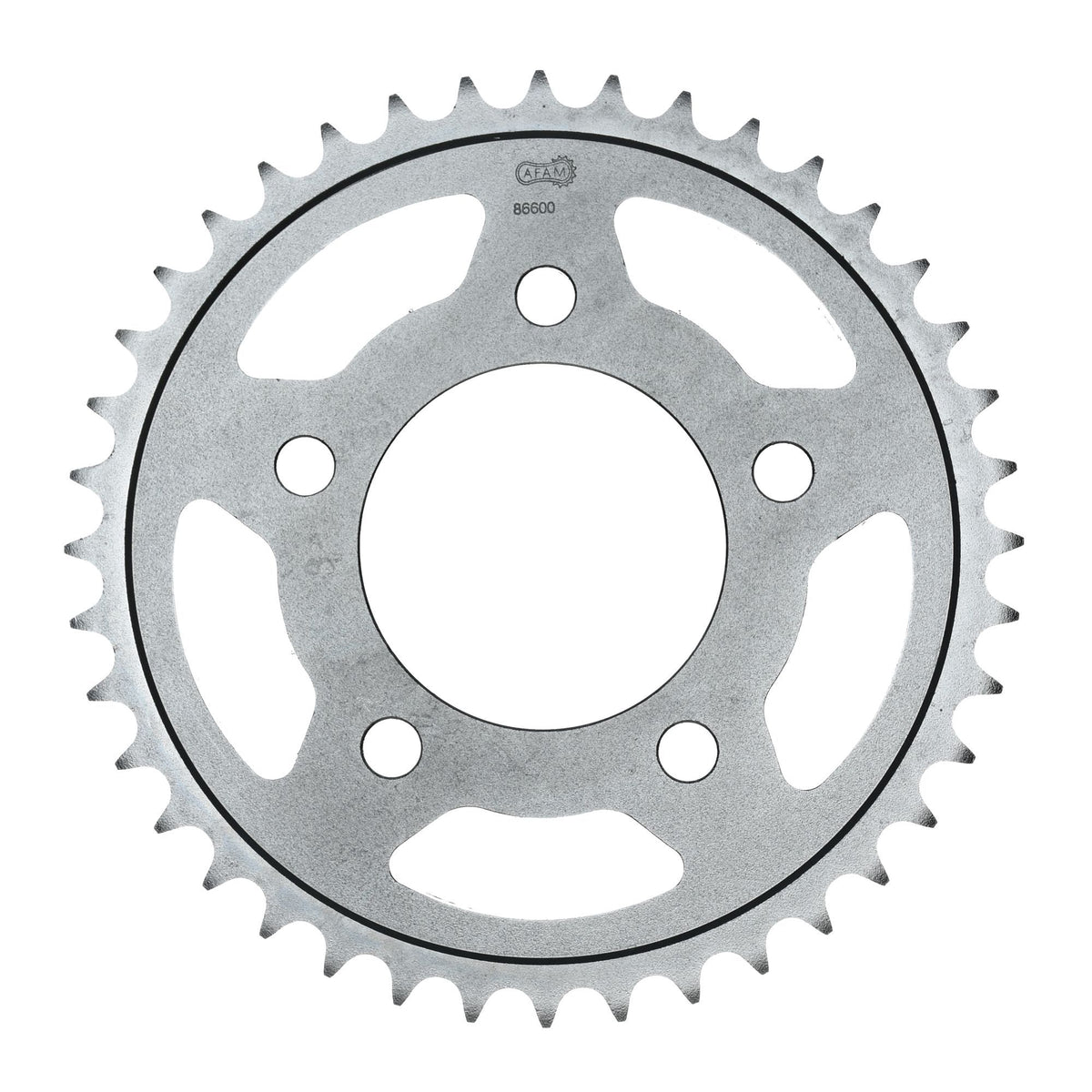

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86600.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-38147

Suitable for

Triumph 751 - 1000 cc Sprint 900 Sport T300A 1997
