AFAM chain kit for Triumph Sprint RS 955 00-01 530 XSR2G chain kit

AFAM Chain Kit for Triumph Sprint RS 955 00-01 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Sprint RS 955 T695 2000-2001

• Sprocket: AFAM sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 w. rivet link - a530xsr2.g.108

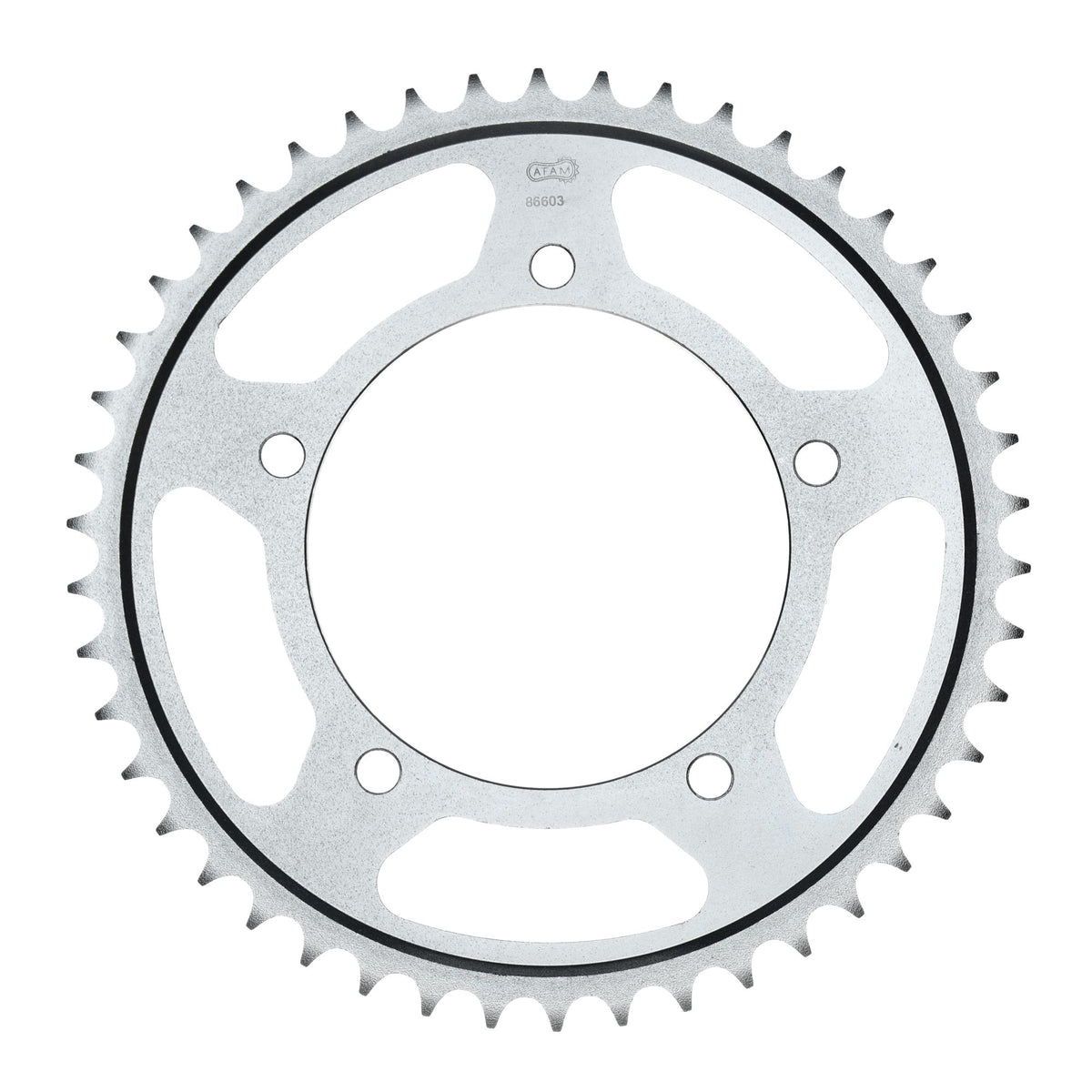

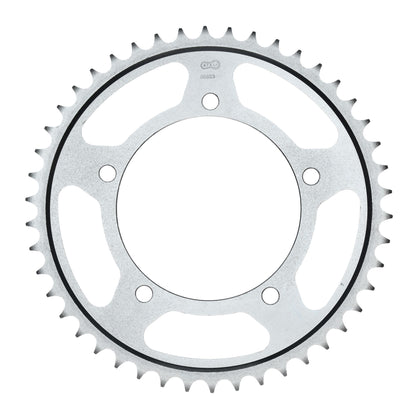

• Chain wheel: AFAM STEEL chain wheel #530 43 teeth - a86603.43
• Gear ratio sprocket-chain-chain wheel: 19-108-43

AFAM 530 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51333

Suitable for

Triumph 751 - 1000 cc Sprint RS 955 T695 2000
Triumph 751 - 1000 cc Sprint RS 955 T695 2001
