AFAM chain kit for Triumph Sprint RS 955 2002 530 XSR2G chain kit

AFAM Chain Kit for Triumph Sprint RS 955 2002 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Sprint RS 955 T695AC 2002-2002

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XSR2-G Xs-Ring 108 w. rivet link - a530xsr2.g.108

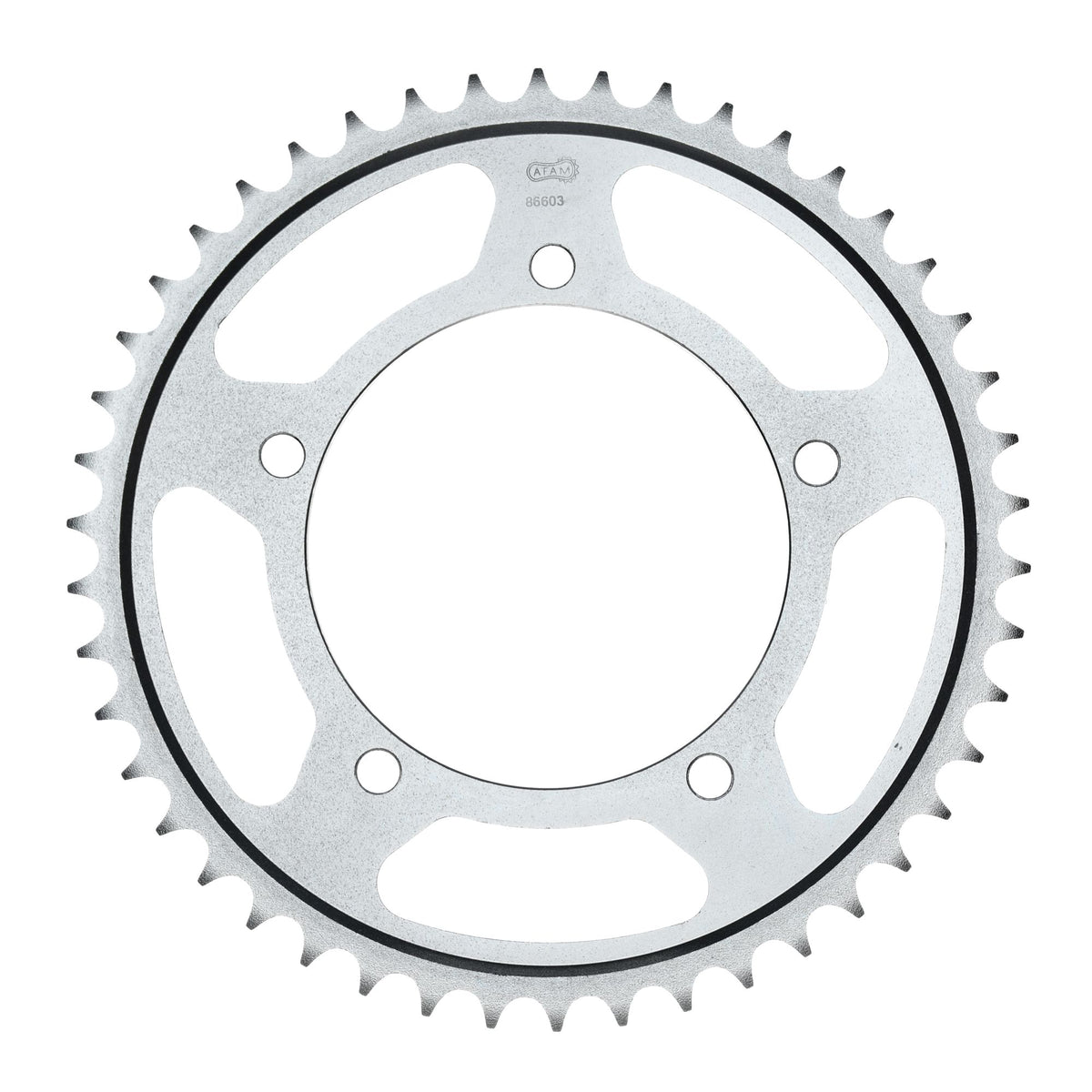

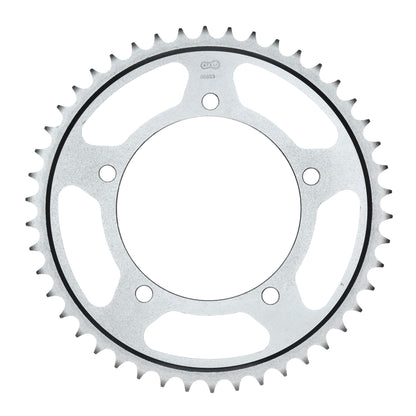

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86603.43
• Gear ratio front sprocket-chain-rear sprocket: 19-108-43

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52955

Suitable for

Triumph 751 - 1000 cc Sprint RS 955 T695AC 2002
