AFAM chain kit for Triumph Sprint ST 1050 05-10 530 XHR2G chain kit

AFAM Chain kit for Triumph Sprint ST 1050 05-10 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Sprint ST 1050 215NA 2005-2010 chain kit

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XHR2-G Xs-ring 106 with rivet link - a530xhr2.g.106

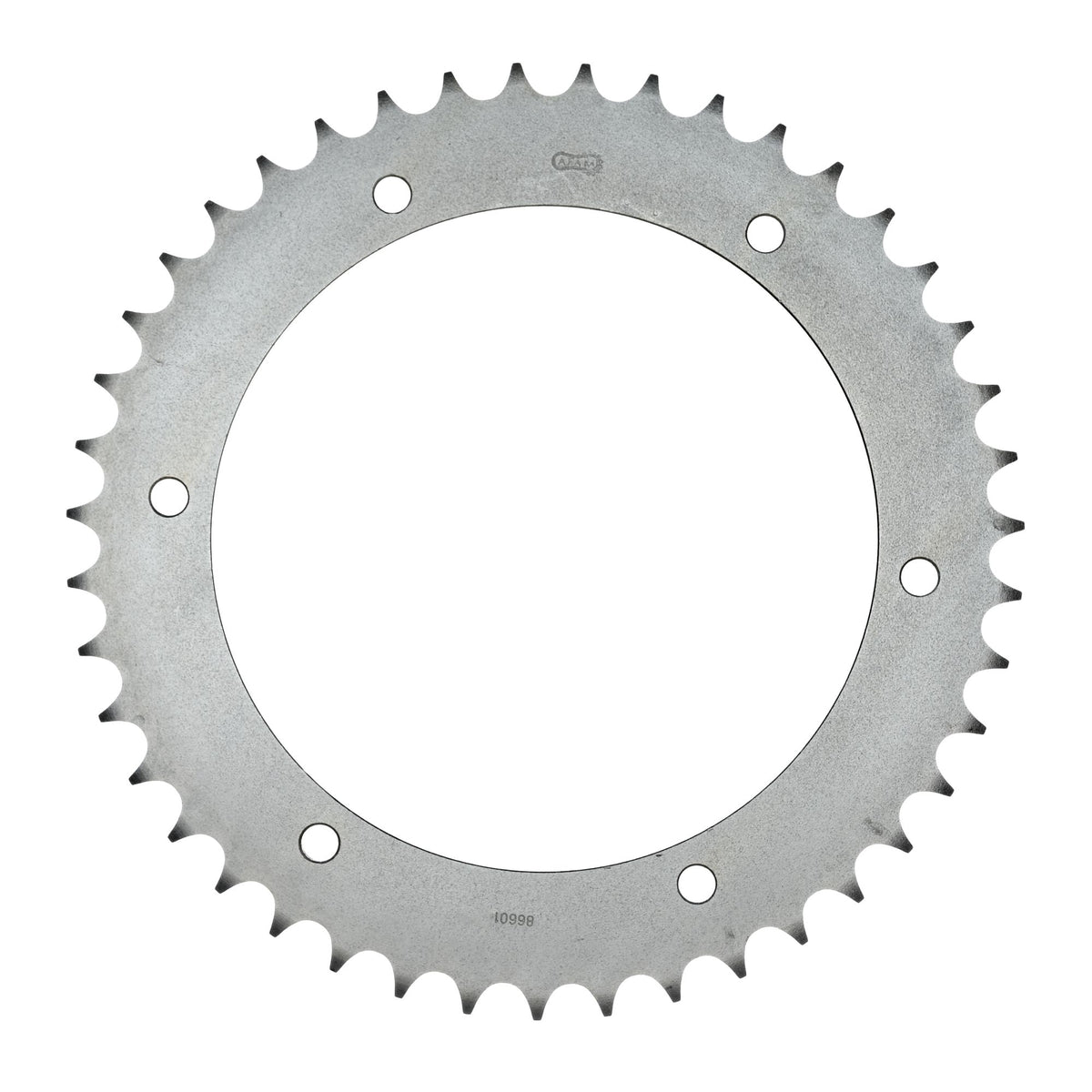

• Rear sprocket: AFAM STEEL sprocket #530 42 teeth - a86601.42
• Gear ratio front sprocket-chain-rear sprocket: 19-106-42

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51120

Suitable for

Triumph over 1001 cc Sprint ST 1050 215NA 2005
Triumph over 1001 cc Sprint ST 1050 215NA 2006
Triumph over 1001 cc Sprint ST 1050 215NA 2007
Triumph over 1001 cc Sprint ST 1050 215NA 2008
Triumph over 1001 cc Sprint ST 1050 215NA 2009
Triumph over 1001 cc Sprint ST 1050 215NA 2010
