AFAM chain kit for Triumph Sprint ST 955 02-04 530 XHR2G chain kit

AFAM Chain Kit for Triumph Sprint ST 955 02-04 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Sprint ST 955 T695AB from VIN 89000737 2002-2004

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

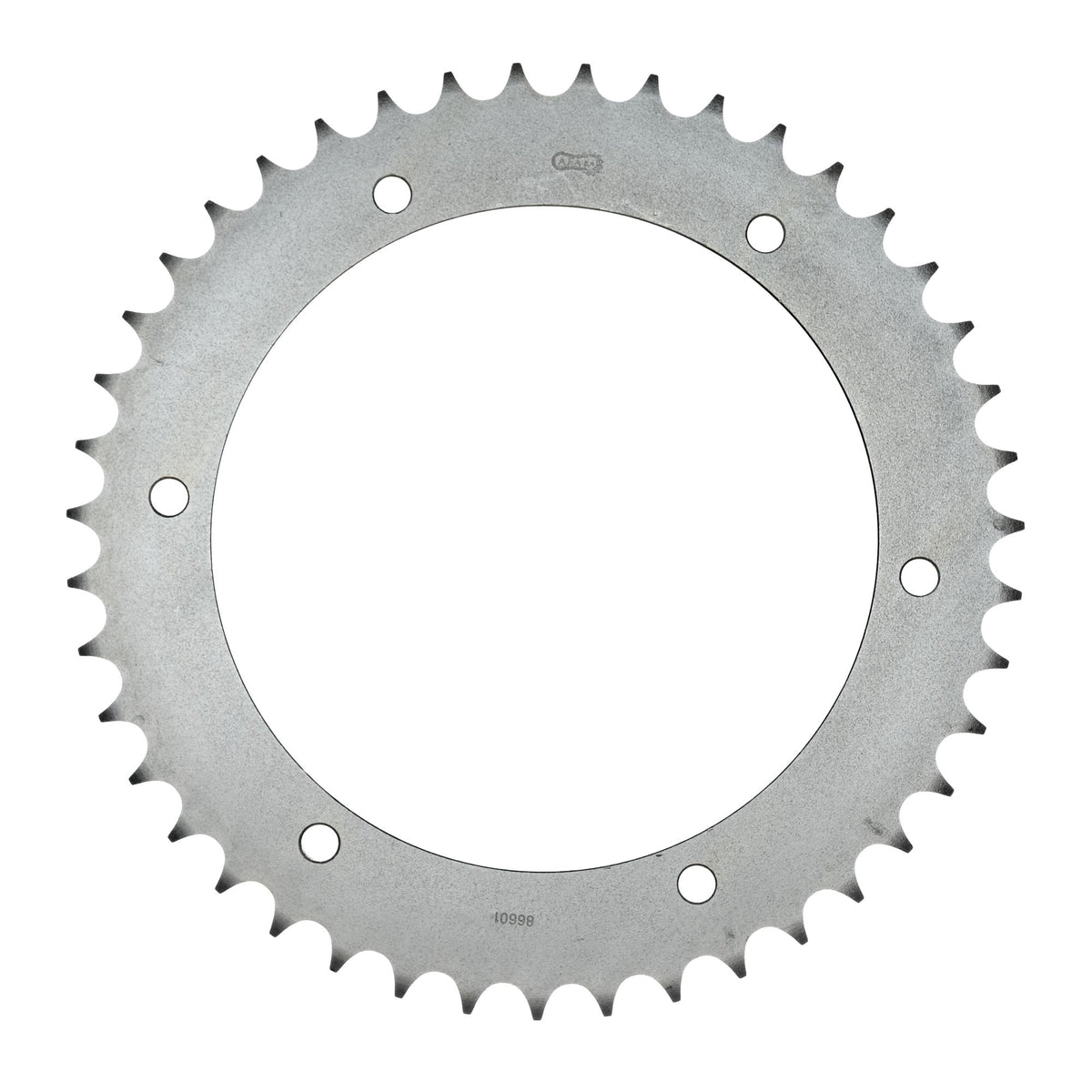

• Rear sprocket: AFAM steel rear sprocket #530 43 teeth - a86601.43
• Gear ratio front sprocket-chain-rear sprocket: 19-108-43

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-39240

Fits

Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2002
Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2003
Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2004
