AFAM chain kit for Triumph Sprint ST 955 02-04 530 XSR2G chain kit

AFAM chain kit for Triumph Sprint ST 955 02-04 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Sprint ST 955 T695AB from VIN 89000737 2002-2004

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XSR2-G Xs-ring 108 links w. rivet link - a530xsr2.g.108

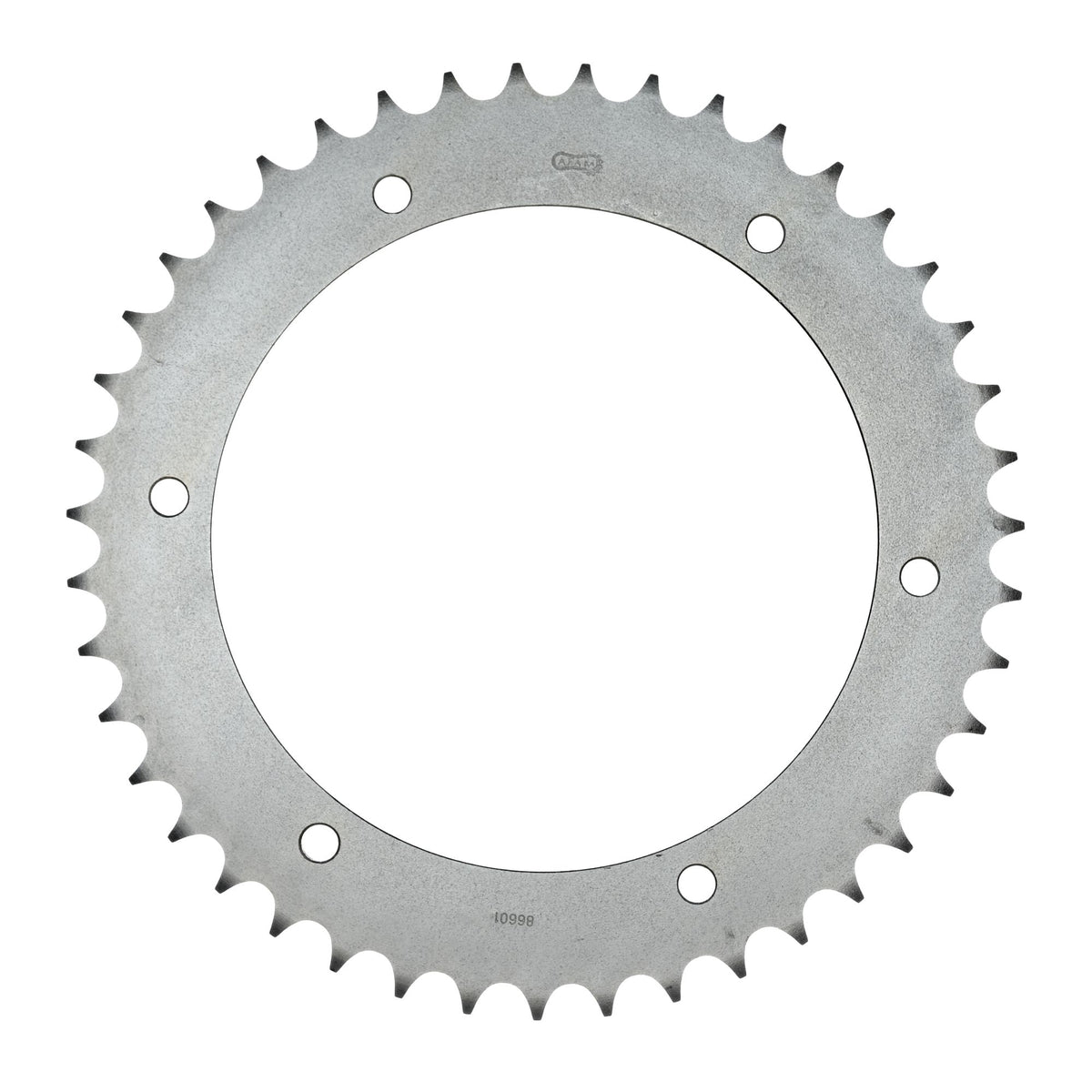

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86601.43
• Gear ratio sprocket-chain-rear sprocket: 19-108-43

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52980

Suitable for

Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2002
Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2003
Triumph 751 - 1000 cc Sprint ST 955 T695AB from VIN 89000737 2004
