AFAM chain kit for Triumph Street Triple 765 R ABS 23-24 525 XHR3G chain kit

AFAM chain kit for Triumph Street Triple 765 R ABS 23-24 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Street Triple 765 R ABS H801 2023-2024

• Sprocket: AFAM sprocket #525 15 teeth - a28401.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 118 with rivet link - a525xhr3.g.118

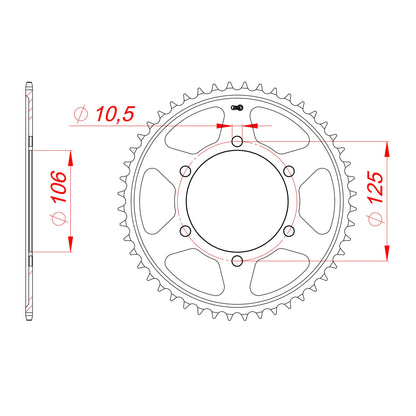

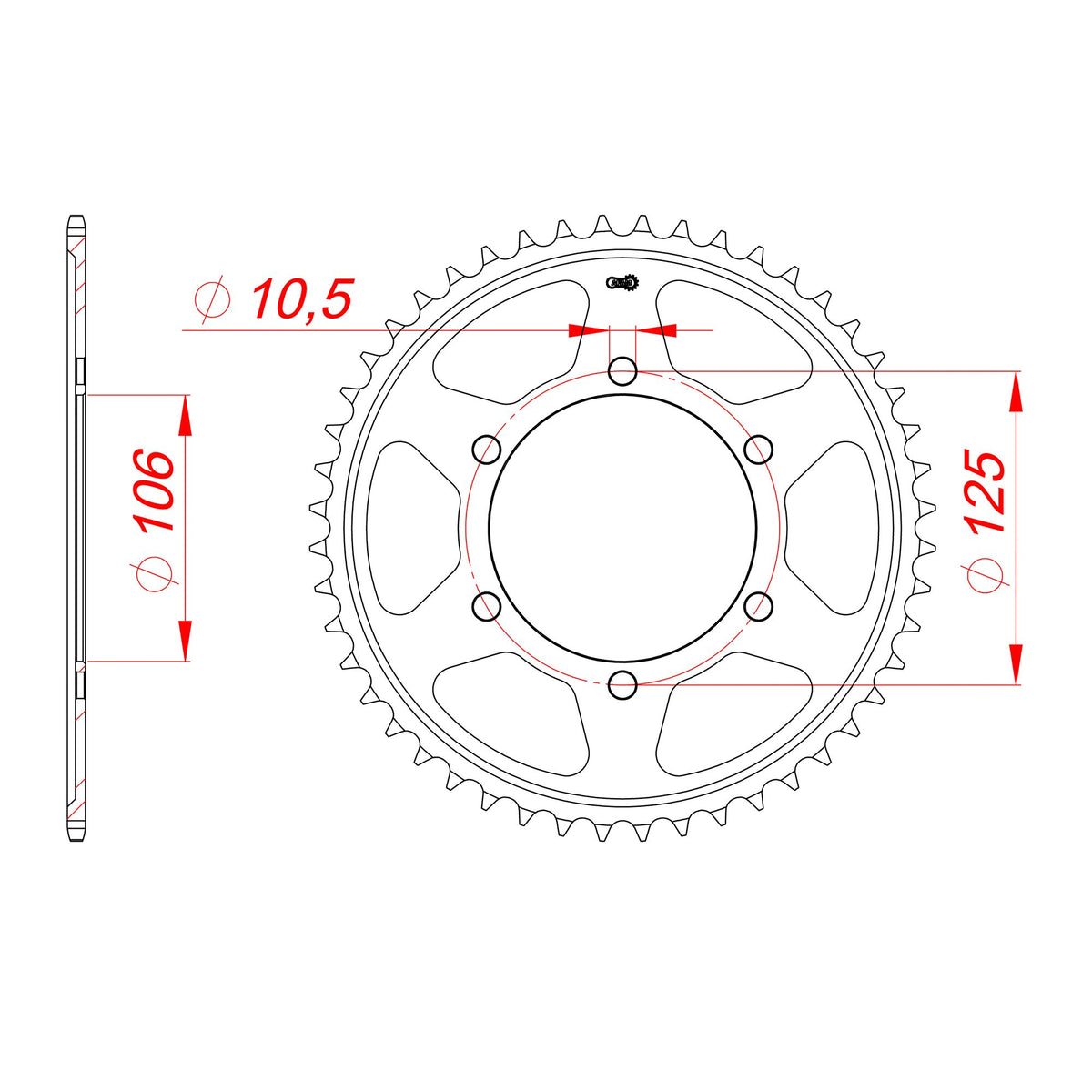

• Rear sprocket: AFAM STEEL rear sprocket #525 48 teeth - a86605.48
• Gear ratio sprocket-chain-rear sprocket: 15-118-48

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-77997

Suitable for

Triumph 751 - 1000 ccm Street Triple 765 R ABS H801 2023
Triumph 751 - 1000 ccm Street Triple 765 R ABS H801 2024
