AFAM chain kit for Triumph Street Triple 765 RS ABS 2025 525 XSR2G chain kit

AFAM Chain Kit for Triumph Street Triple 765 RS ABS 2025 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Triumph Street Triple 765 RS ABS H802 2025-2025

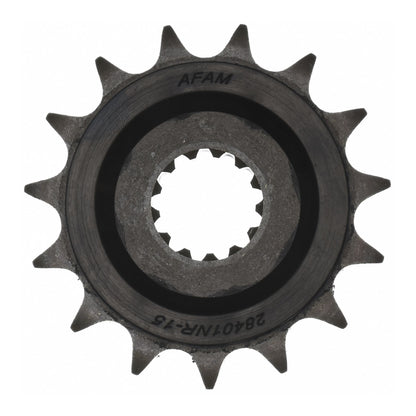

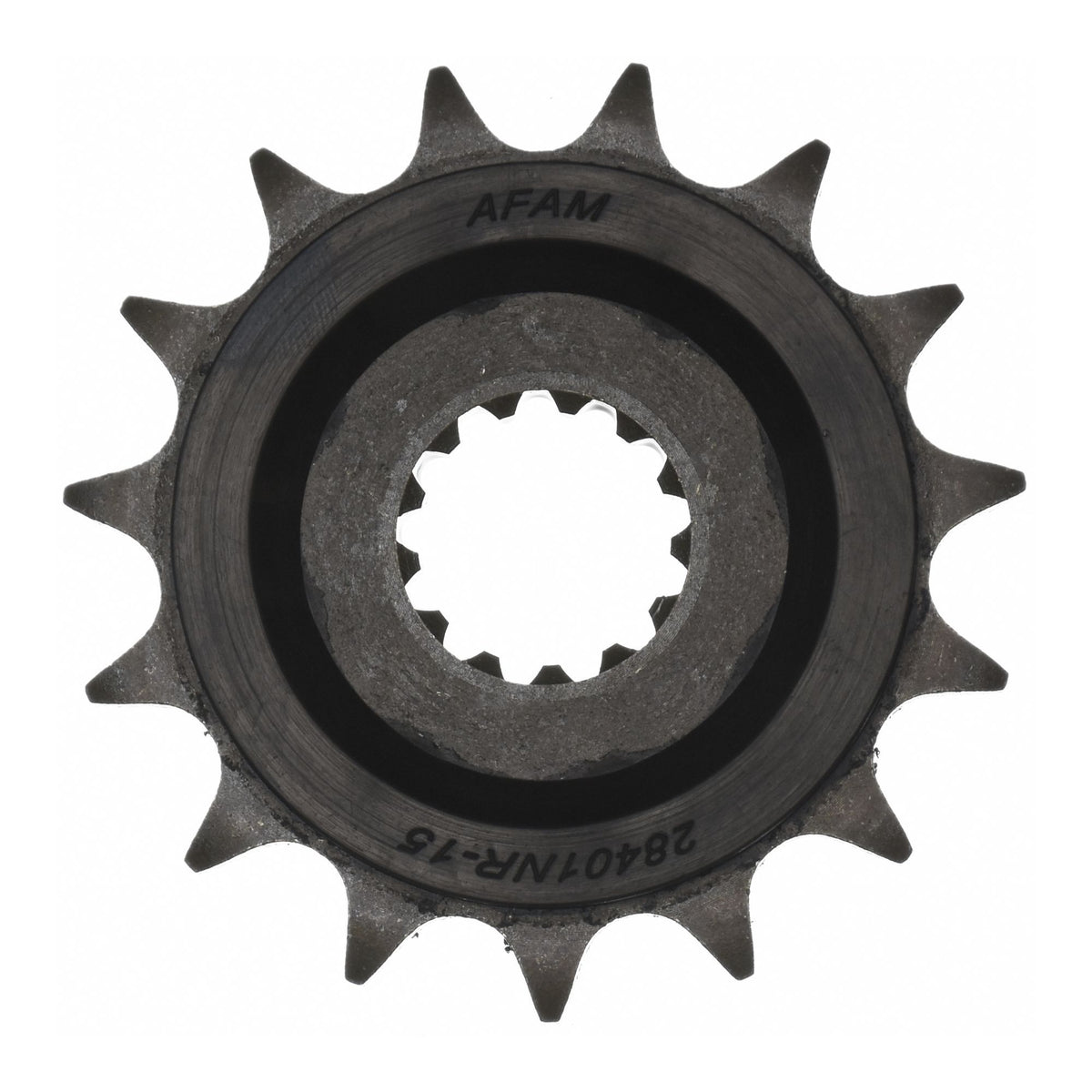

• Sprocket: AFAM sprocket 28401-15 rubberized #525 15 teeth - a28401oem.15
• Chain: AFAM chain 525 XSR2-G Xs-Ring 118 with rivet link - a525xsr2.g.118

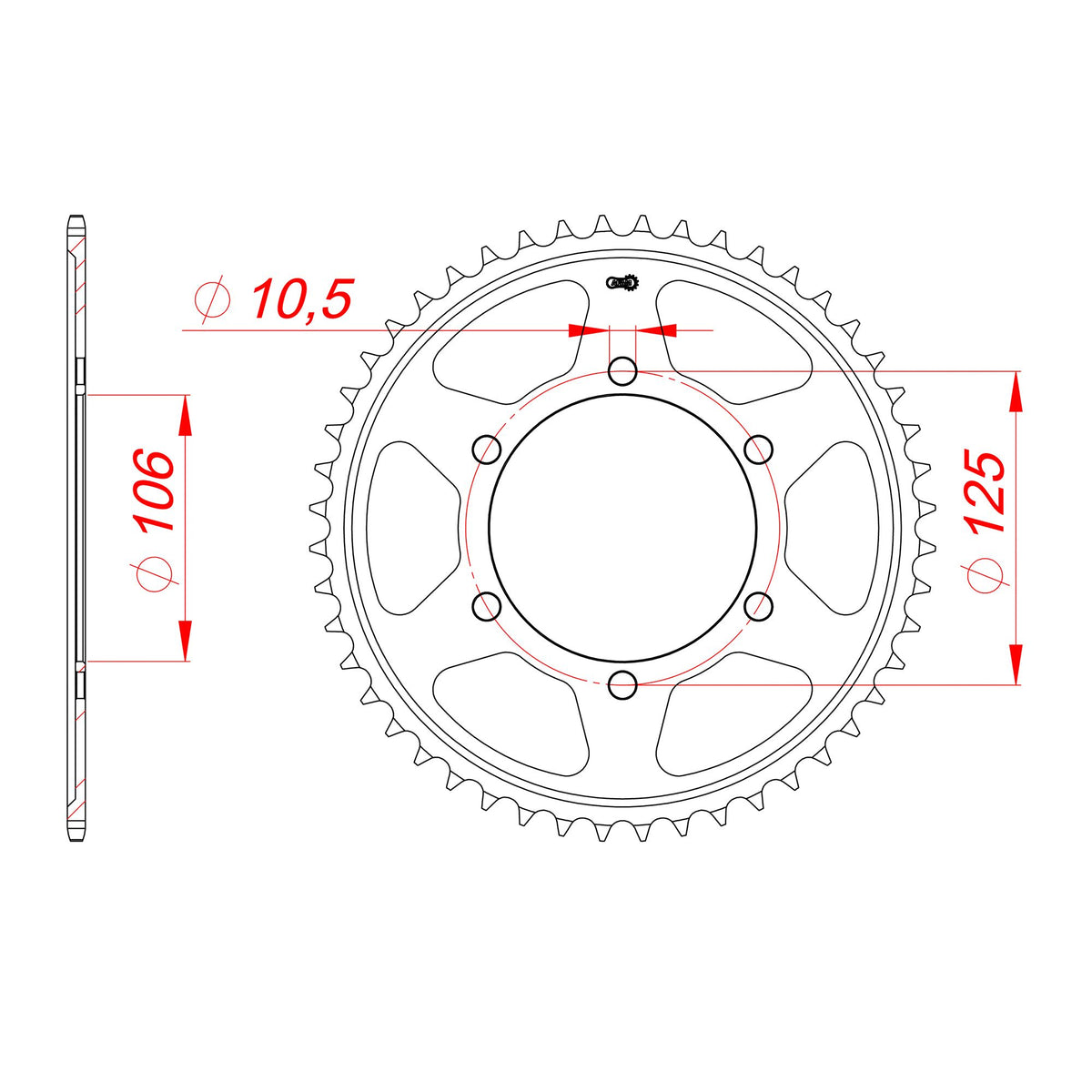

• Chainwheel: AFAM chainwheel STEEL #525 48 teeth - a86605.48
• Gear ratio sprocket-chain-chainwheel: 15-118-48

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-77948

Fits

Triumph 751 - 1000 cc Street Triple 765 RS ABS H802 2025
