AFAM chain kit for Triumph TF 450 E 2025 520 MR2G chain kit

AFAM chain kit for Triumph TF 450 E 2025 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph TF 450 E 2025-2025 chain kit

• Sprocket: AFAM sprocket #520 - a88400.13
• Chain: AFAM chain 520 MR2-G w. clip link - a520mr2.g.114

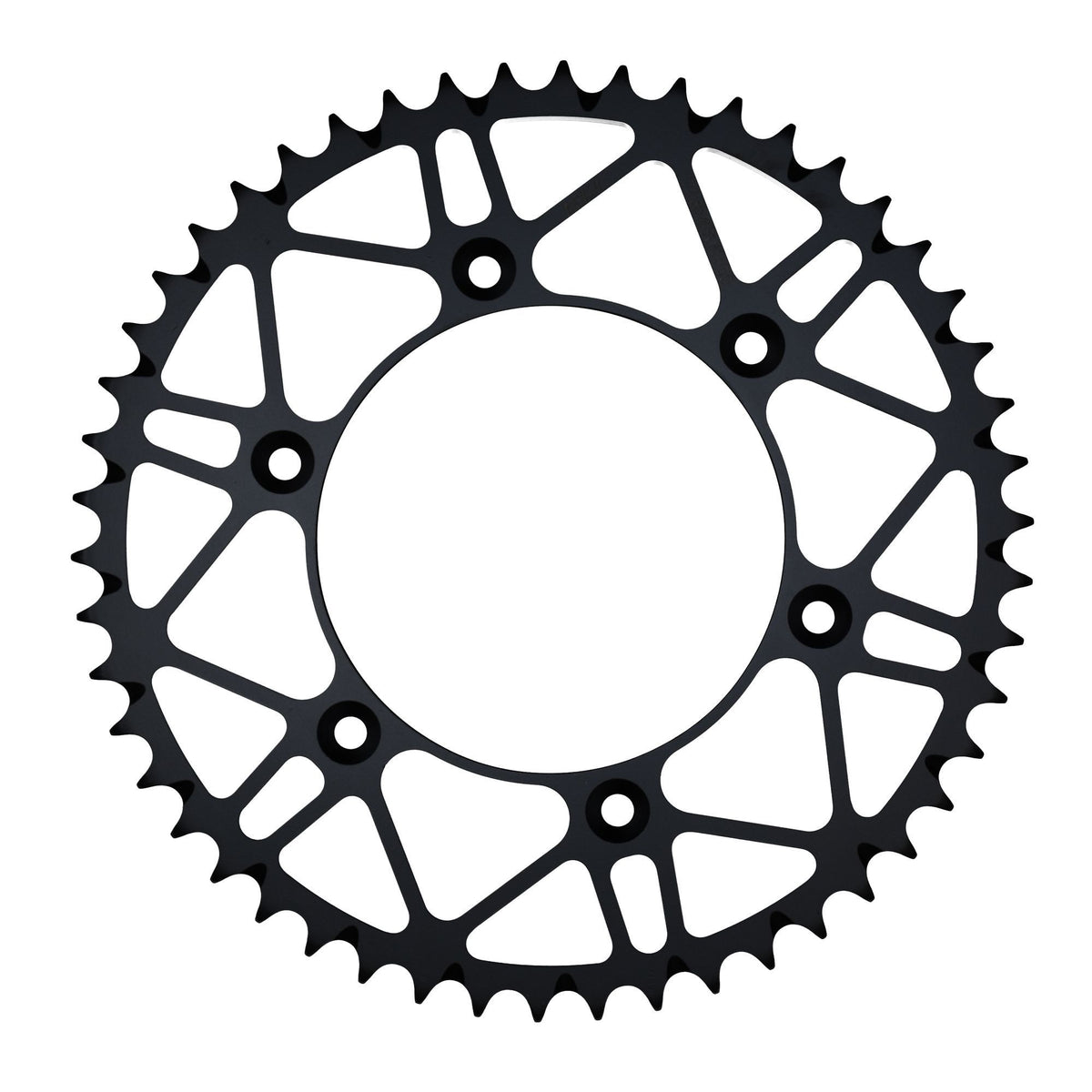

• Rear sprocket: AFAM steel rear sprocket #520 with mud grooves 48 T - a71304slk.48
• Gear ratio sprocket-chain-rear sprocket: 13-114-48

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / street, offroad and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78263

Suitable for

Triumph 251 - 500 cc TF 450 E 2025
