AFAM chain kit for Triumph Thruxton 1200 ABS 2020 525 XSR2G chain kit

AFAM Chain Kit for Triumph Thruxton 1200 ABS 2020 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Thruxton 1200 ABS DF01 2020-2020

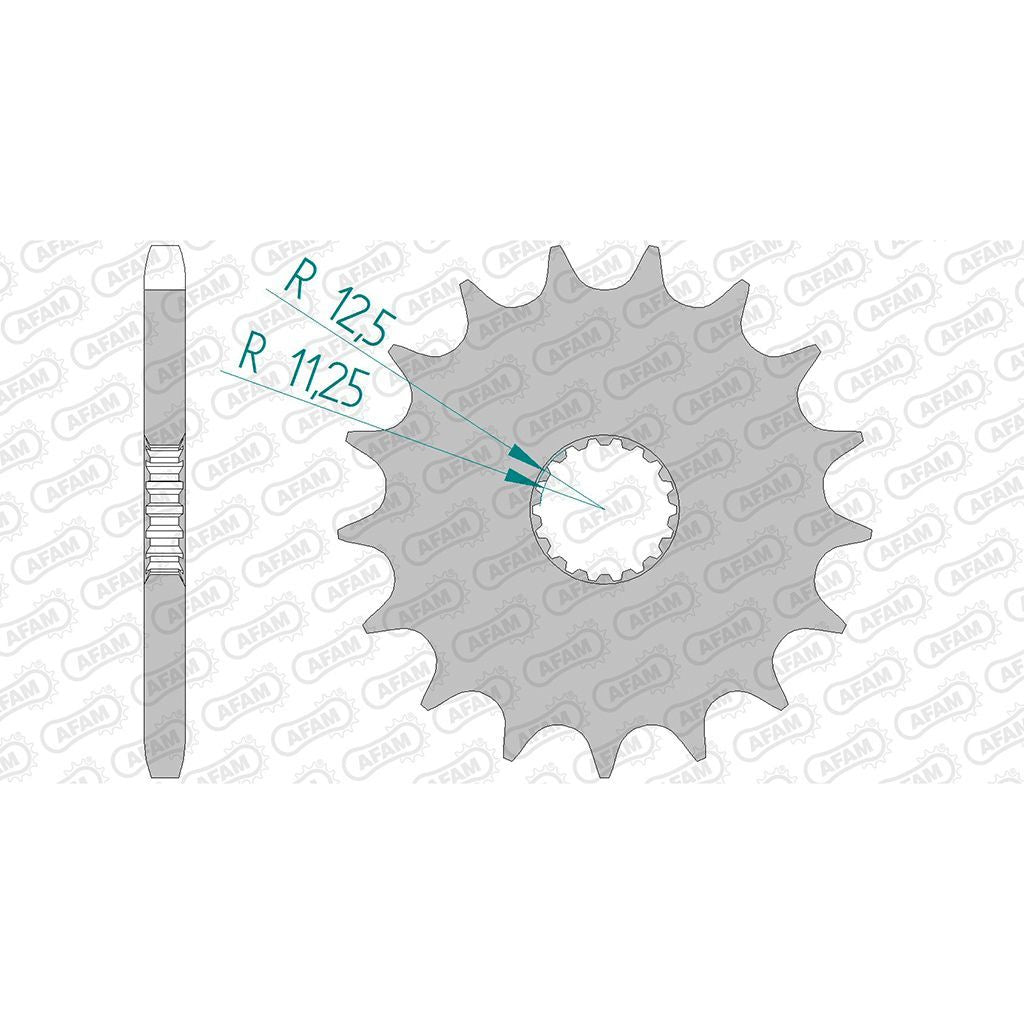

• Front sprocket: AFAM Front sprocket #525 16 teeth - a88900.16
• Chain: AFAM Chain 525 XSR2-G Xs-Ring 100 with rivet link - a525xsr2.g.100

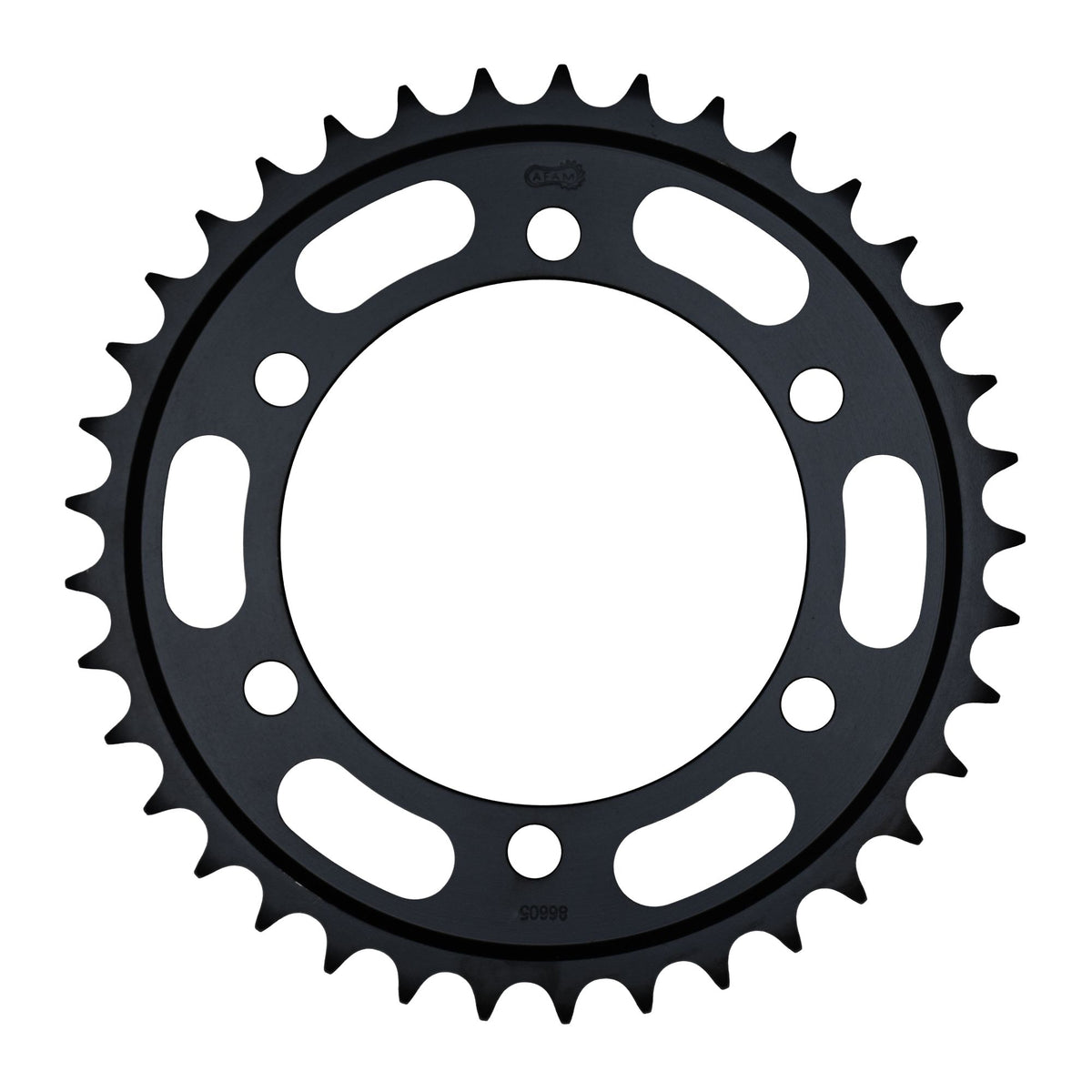

• Rear sprocket: AFAM Rear sprocket STEEL #525 42 teeth - a86605.42
• Gear ratio sprocket-chain-rear sprocket: 16-100-42

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51137

Suitable for

Triumph over 1001 cc Thruxton 1200 ABS DF01 2020
