AFAM chain kit for Triumph Thruxton 865 08-14 525 XSR2G chain kit

AFAM Chain kit for Triumph Thruxton 865 08-14 525 XSR2G Chain kit

Chain kit or chain set for the assigned model as per the product name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Thruxton 865 986ME2 2008-2014 chain kit

• Front sprocket: AFAM sprocket #525 TRI 800/865 18 teeth - a88600.18
• Chain: AFAM chain 525 XSR2-G Xs-ring 104 with rivet master link - a525xsr2.g.104

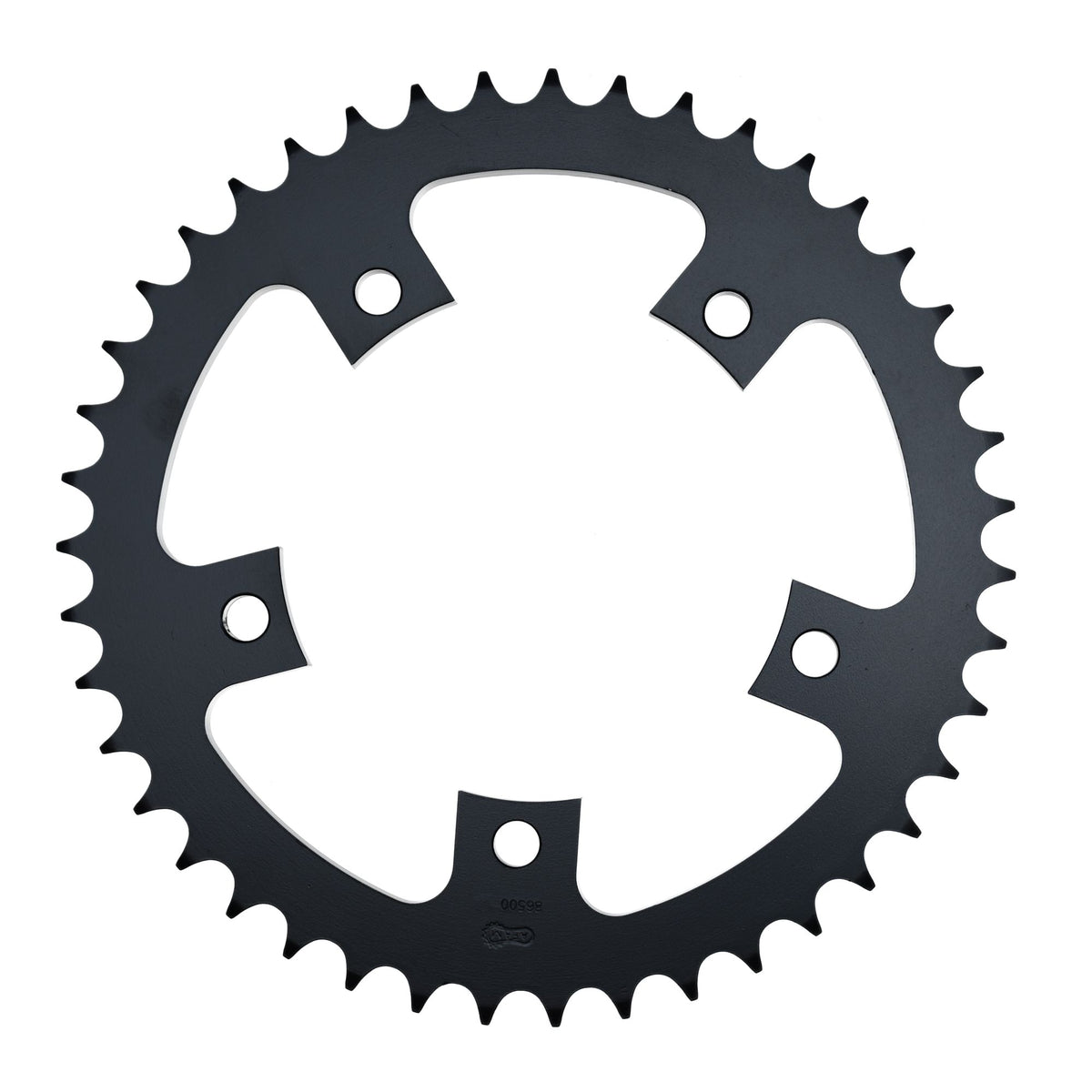

• Rear sprocket: AFAM STEEL rear sprocket #525 43 teeth - a86500.43
• Gear ratio sprocket-chain-rear sprocket: 18-104-43

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-51265

Suitable for

Triumph 751 - 1000 cc Thruxton 865 986ME2 2008
Triumph 751 - 1000 cc Thruxton 865 986ME2 2009
Triumph 751 - 1000 cc Thruxton 865 986ME2 2010
Triumph 751 - 1000 cc Thruxton 865 986ME2 2011
Triumph 751 - 1000 cc Thruxton 865 986ME2 2012
Triumph 751 - 1000 cc Thruxton 865 986ME2 2013
Triumph 751 - 1000 cc Thruxton 865 986ME2 2014
