AFAM chain kit for Triumph Thruxton RS 1200 ABS 20-24 525 XSR2G chain kit

AFAM chain kit for Triumph Thruxton RS 1200 ABS 20-24 525 XSR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Thruxton RS 1200 ABS DF01 2020-2024

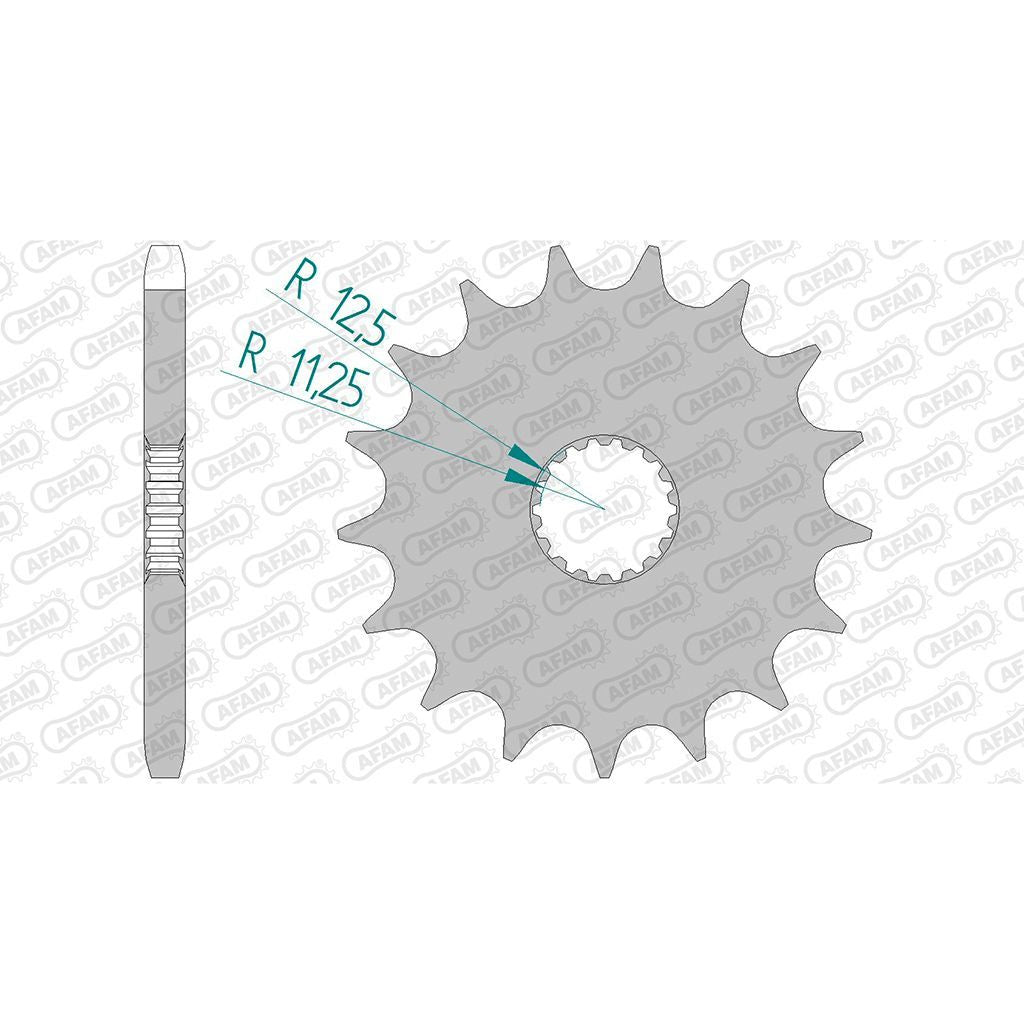

• Sprocket: AFAM sprocket #525 16 teeth - a88900.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 100 with rivet link - a525xsr2.g.100

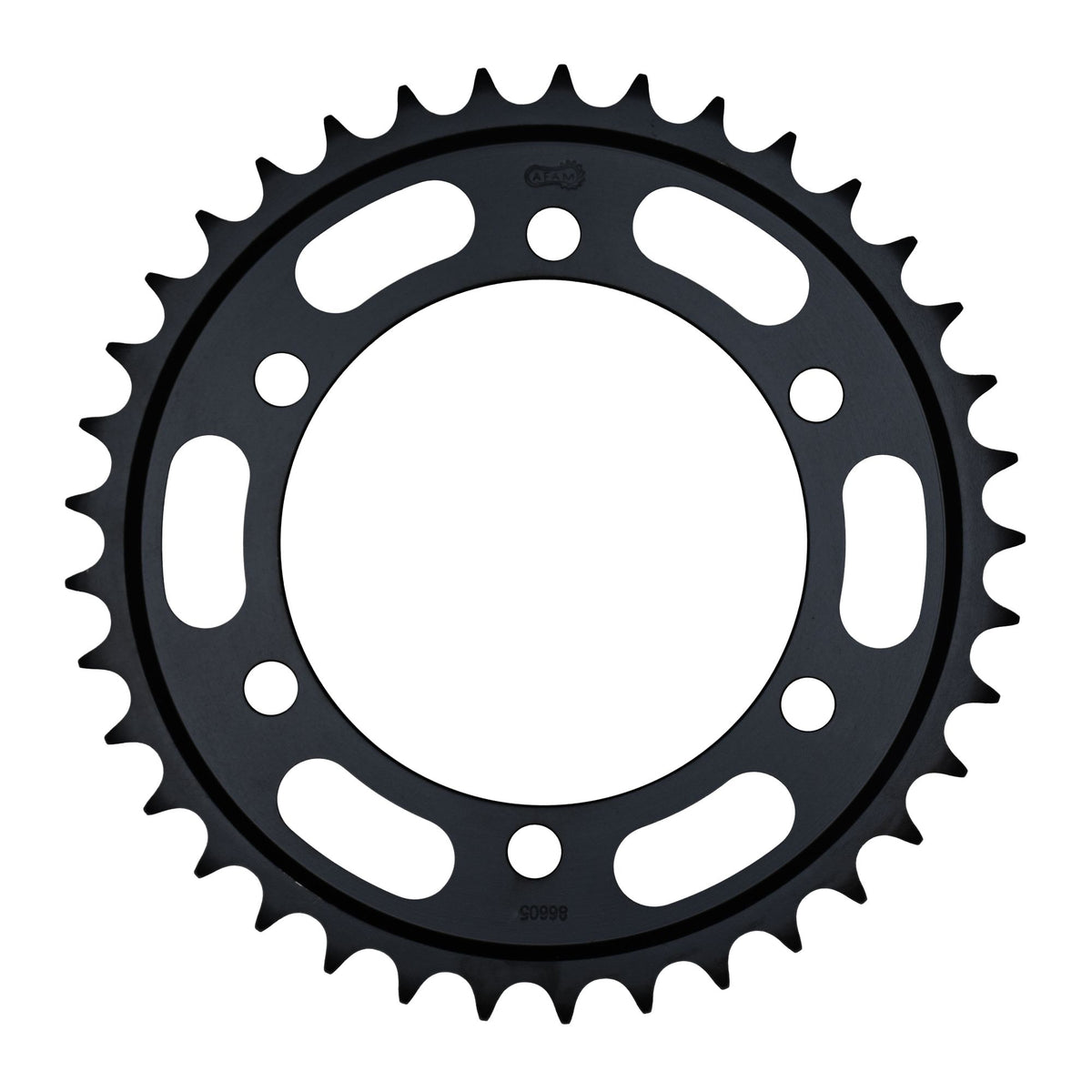

• Rear sprocket: AFAM STEEL rear sprocket #525 42 teeth - a86605.42
• Gear ratio sprocket-chain-rear sprocket: 16-100-42

AFAM 525 XSR2-G

Super reinforced chain with smooth running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78246

Suitable for

Triumph over 1001 cc Thruxton RS 1200 ABS DF01 2020
Triumph over 1001 cc Thruxton RS 1200 ABS DF01 2021
Triumph over 1001 cc Thruxton RS 1200 ABS DF01 2022
Triumph over 1001 cc Thruxton RS 1200 ABS DF01 2023
Triumph over 1001 cc Thruxton RS 1200 ABS DF01 2024
