AFAM chain kit for Triumph Tiger 1050 07-11 530 XHR2G chain kit

AFAM Chain Kit for Triumph Tiger 1050 07-11 530 XHR2G Chain Kit

Chain kit or chain set for the specified model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Tiger 1050 115NG 2007-2011

• Sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 114 with rivet link - a530xhr2.g.114

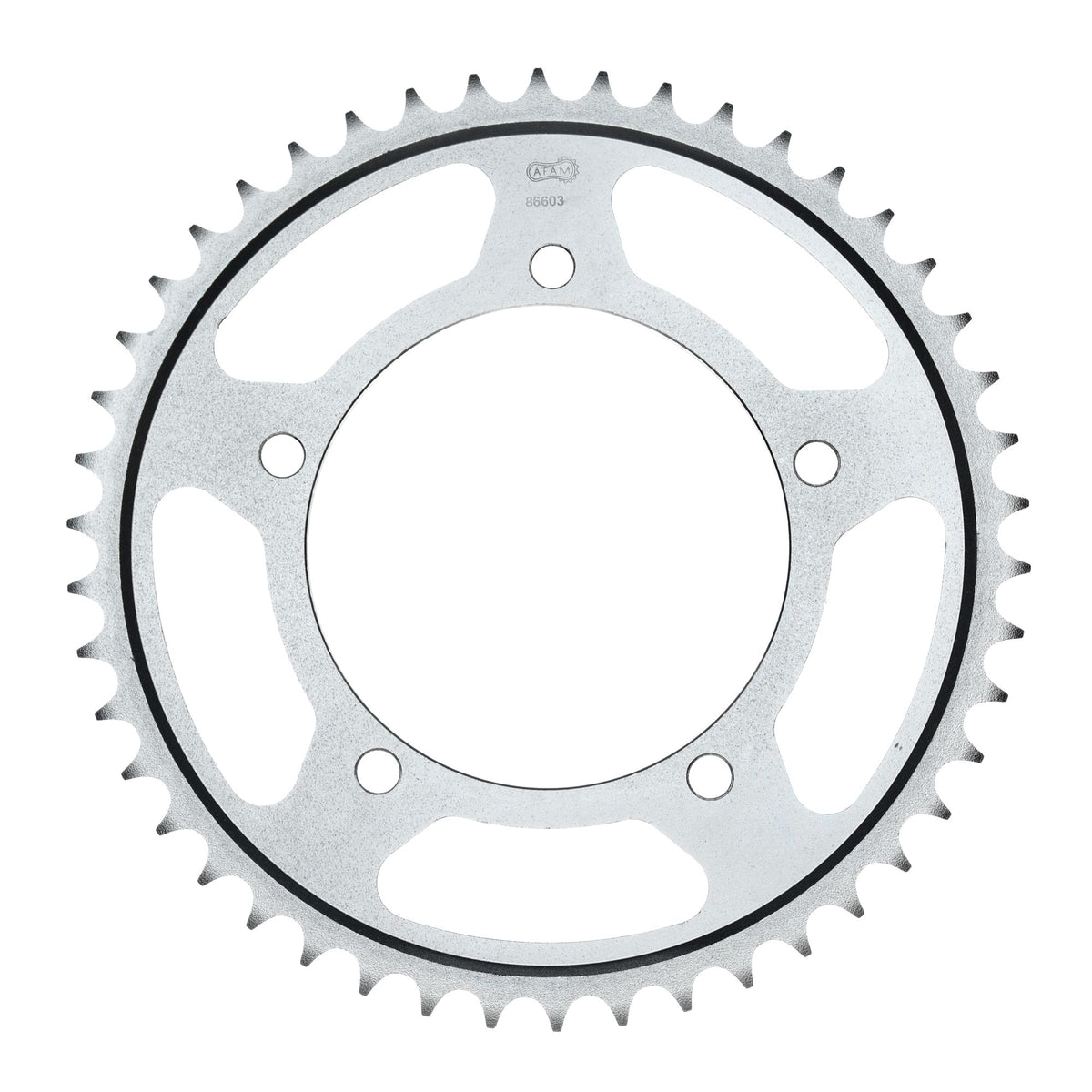

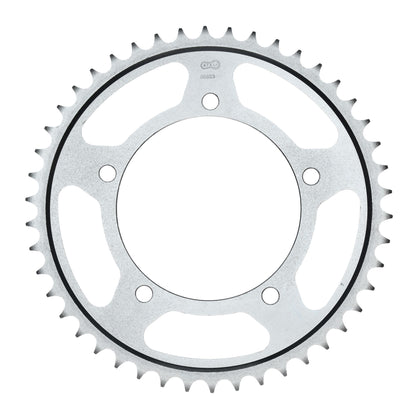

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a86603.44
• Gear ratio sprocket-chain-rear sprocket: 18-114-44

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Inner plate thickness: 2.4 mm
Outer plate thickness: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52604

Suitable for

Triumph over 1001 cc Tiger 1050 115NG 2007
Triumph over 1001 cc Tiger 1050 115NG 2008
Triumph over 1001 cc Tiger 1050 115NG 2009
Triumph over 1001 cc Tiger 1050 115NG 2010
Triumph over 1001 cc Tiger 1050 115NG 2011
