AFAM chain kit for Triumph Tiger 1050 07-11 530 XSR2G chain kit

AFAM chain kit for Triumph Tiger 1050 07-11 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Tiger 1050 115NG 2007-2011

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XSR2-G Xs-ring 114 w. rivet link - a530xsr2.g.114

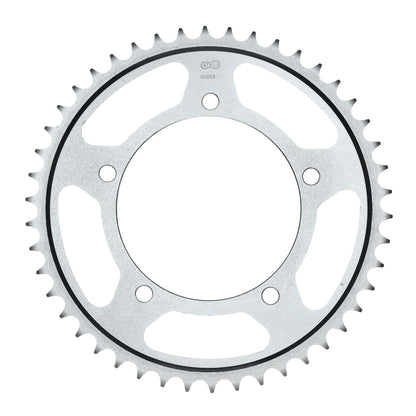

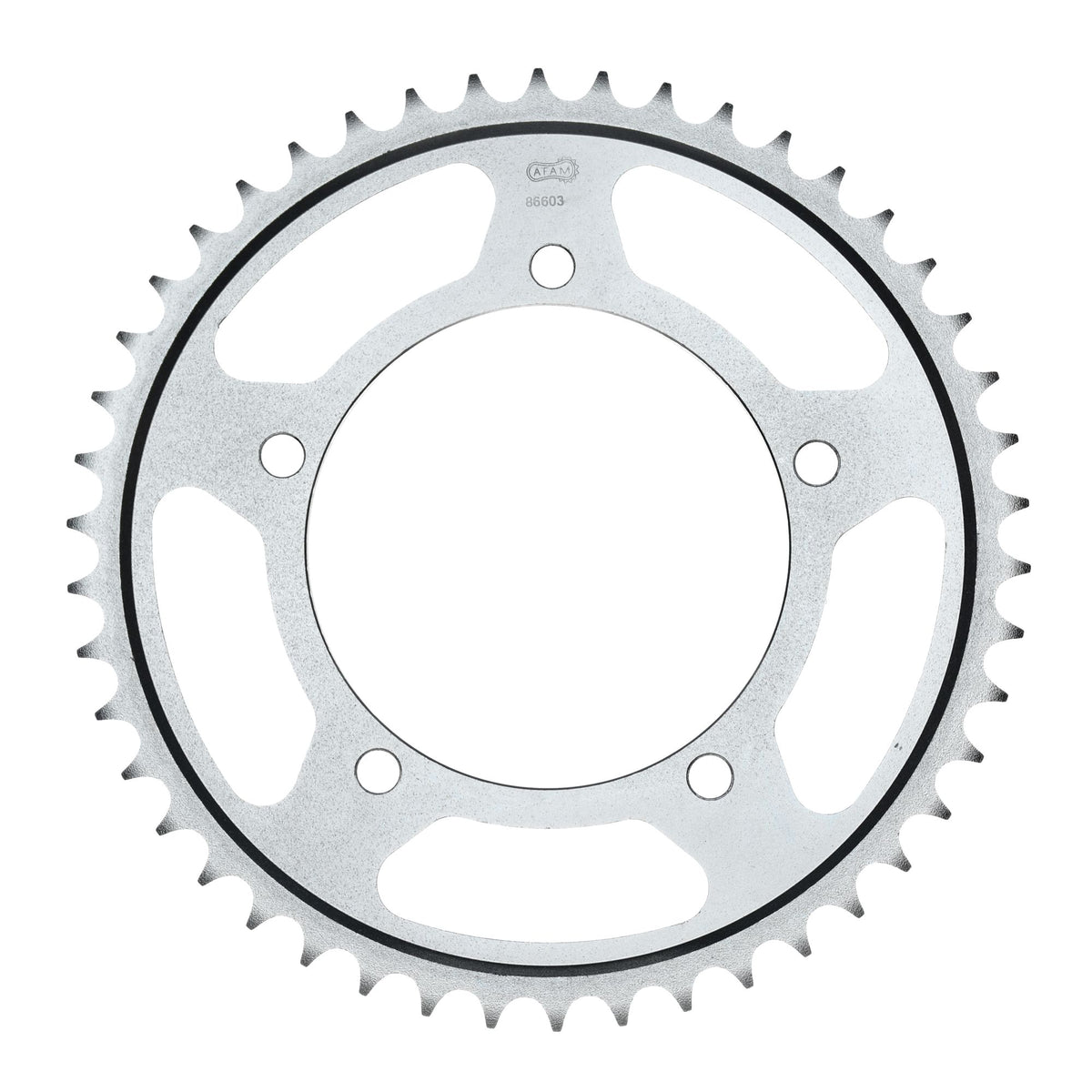

• Rear sprocket: AFAM rear sprocket STEEL #530 44 teeth - a86603.44
• Gear ratio sprocket-chain-rear sprocket: 18-114-44

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-37672

Suitable for

Triumph over 1001 cc Tiger 1050 115NG 2007
Triumph over 1001 cc Tiger 1050 115NG 2008
Triumph over 1001 cc Tiger 1050 115NG 2009
Triumph over 1001 cc Tiger 1050 115NG 2010
Triumph over 1001 cc Tiger 1050 115NG 2011
