AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XMR3 chain kit

AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XMR3 chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

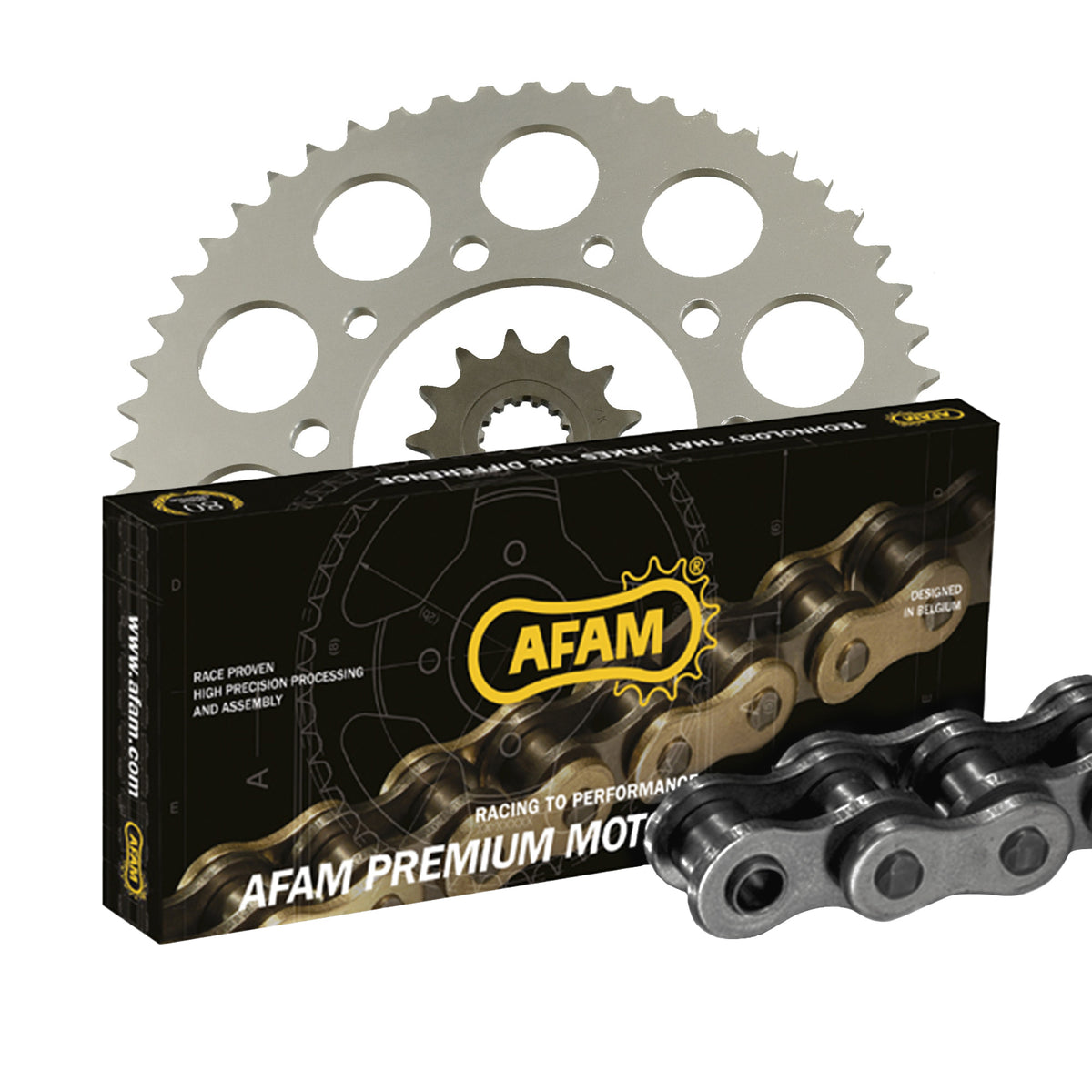

Components of the chain kit Triumph Tiger 850 Sport C701 2021-2025

• Front sprocket: AFAM front sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XMR3 Xs-ring 122 w. rivet master link - a525xmr3.122

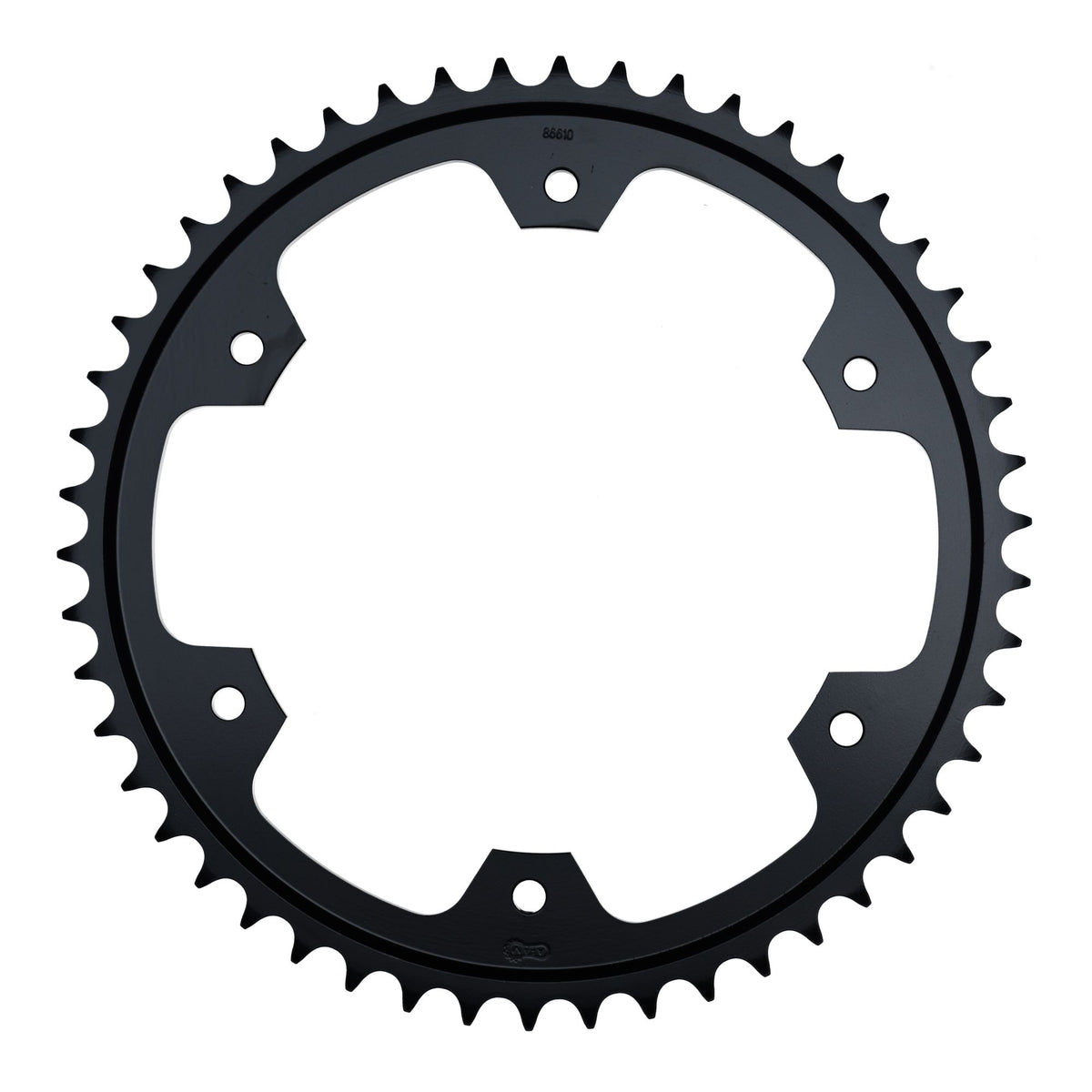

• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86610.50
• Gear ratio front sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XMR3

Reinforced chain with low-friction properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / street

Technical data:
Pitch: 525
Pin length: 23.3 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.99 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78271

Suitable for

Triumph 751 - 1000 cc Tiger 850 Sport C701 2021
Triumph 751 - 1000 cc Tiger 850 Sport C701 2022
Triumph 751 - 1000 cc Tiger 850 Sport C701 2023
Triumph 751 - 1000 cc Tiger 850 Sport C701 2024
Triumph 751 - 1000 cc Tiger 850 Sport C701 2025
