AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XMR3 chain kit

AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility identification purposes only!

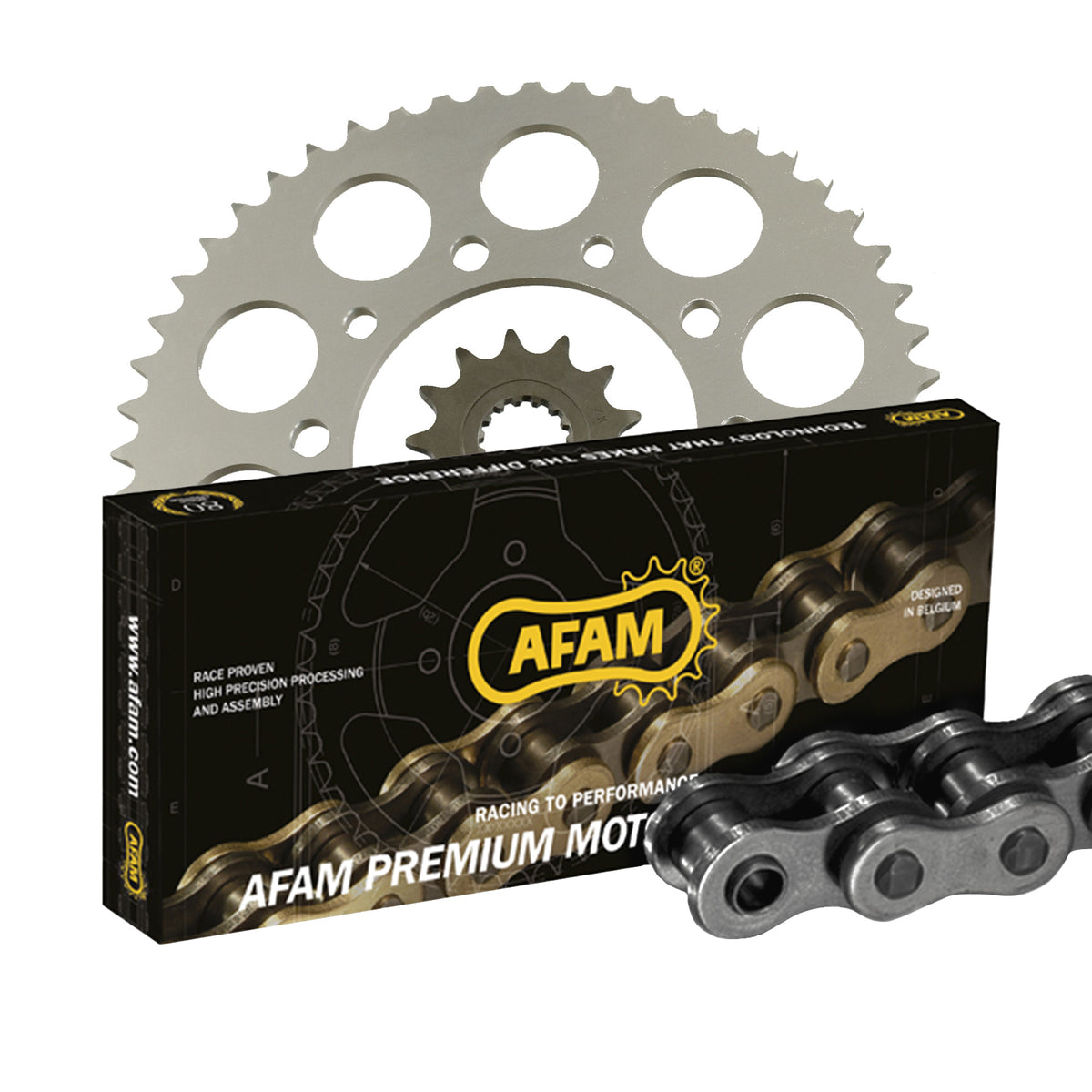

Components of the chain kit Triumph Tiger 850 Sport C701 2021-2025

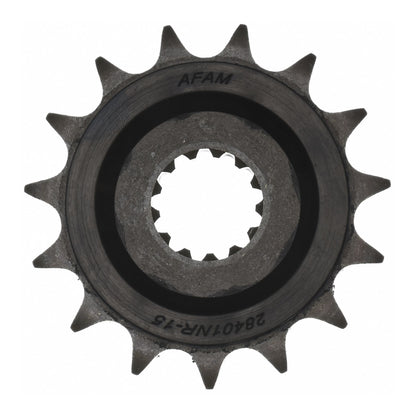

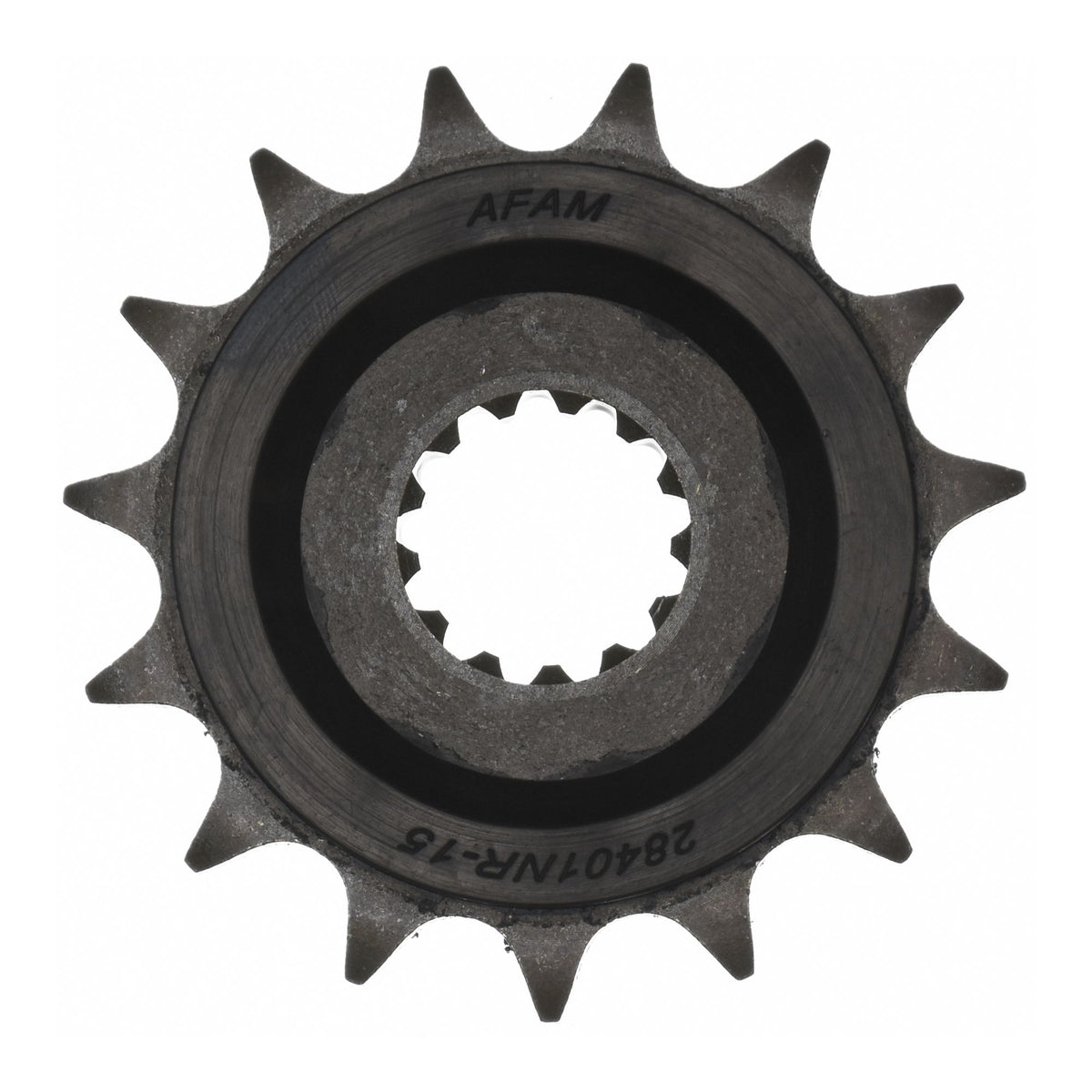

• Front sprocket: AFAM front sprocket 28401-16 rubber #525 16 teeth - a28401oem.16
• Chain: AFAM chain 525 XMR3 Xs-ring 122 w. rivet link - a525xmr3.122
• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86610.50
• Gear ratio front sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 525
Pin length: 23.3 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 1.99 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78431

Suitable for

Triumph 751 - 1000 cc Tiger 850 Sport C701 2021
Triumph 751 - 1000 cc Tiger 850 Sport C701 2022
Triumph 751 - 1000 cc Tiger 850 Sport C701 2023
Triumph 751 - 1000 cc Tiger 850 Sport C701 2024
Triumph 751 - 1000 cc Tiger 850 Sport C701 2025
