AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XSR2G chain kit

AFAM chain kit for Triumph Tiger 850 Sport 21-25 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are for compatibility representation only!

Components of the chain kit Triumph Tiger 850 Sport C701 2021-2025

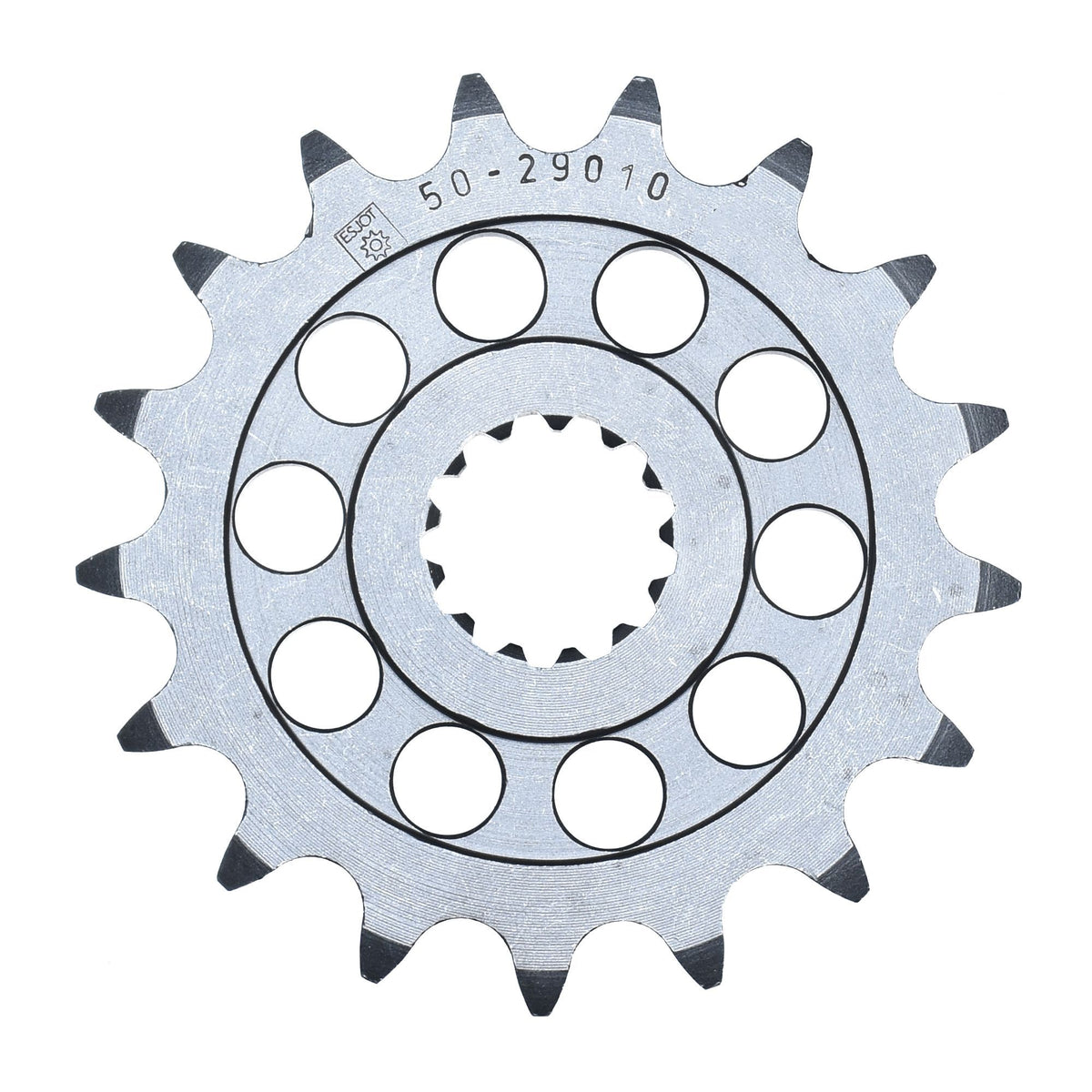

• Front sprocket: Esjot front sprocket 28401-16 #525 Sport 16 teeth - a28401s.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 122 with rivet link - a525xsr2.g.122

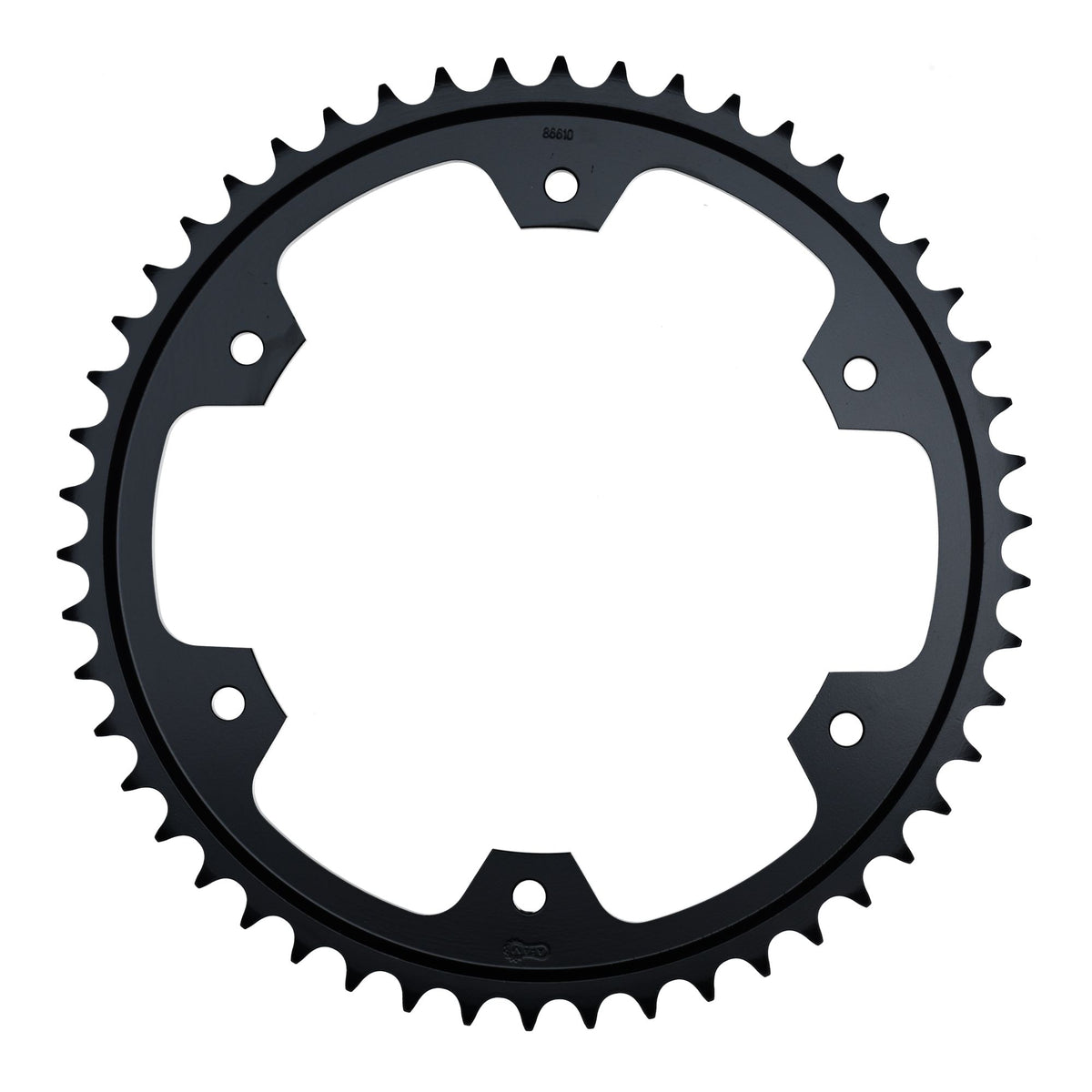

• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86610.50
• Gear ratio front sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The goods offered are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78378

Suitable for

Triumph 751 - 1000 cc Tiger 850 Sport C701 2021
Triumph 751 - 1000 cc Tiger 850 Sport C701 2022
Triumph 751 - 1000 cc Tiger 850 Sport C701 2023
Triumph 751 - 1000 cc Tiger 850 Sport C701 2024
Triumph 751 - 1000 cc Tiger 850 Sport C701 2025
