AFAM chain kit for Triumph Tiger 900 99-00 530 XSR2G chain kit

AFAM Chain Kit for Triumph Tiger 900 99-00 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - Manufacturer names are used solely to indicate compatibility!

Components of the chain kit for Triumph Tiger 900 T709 1999-2000

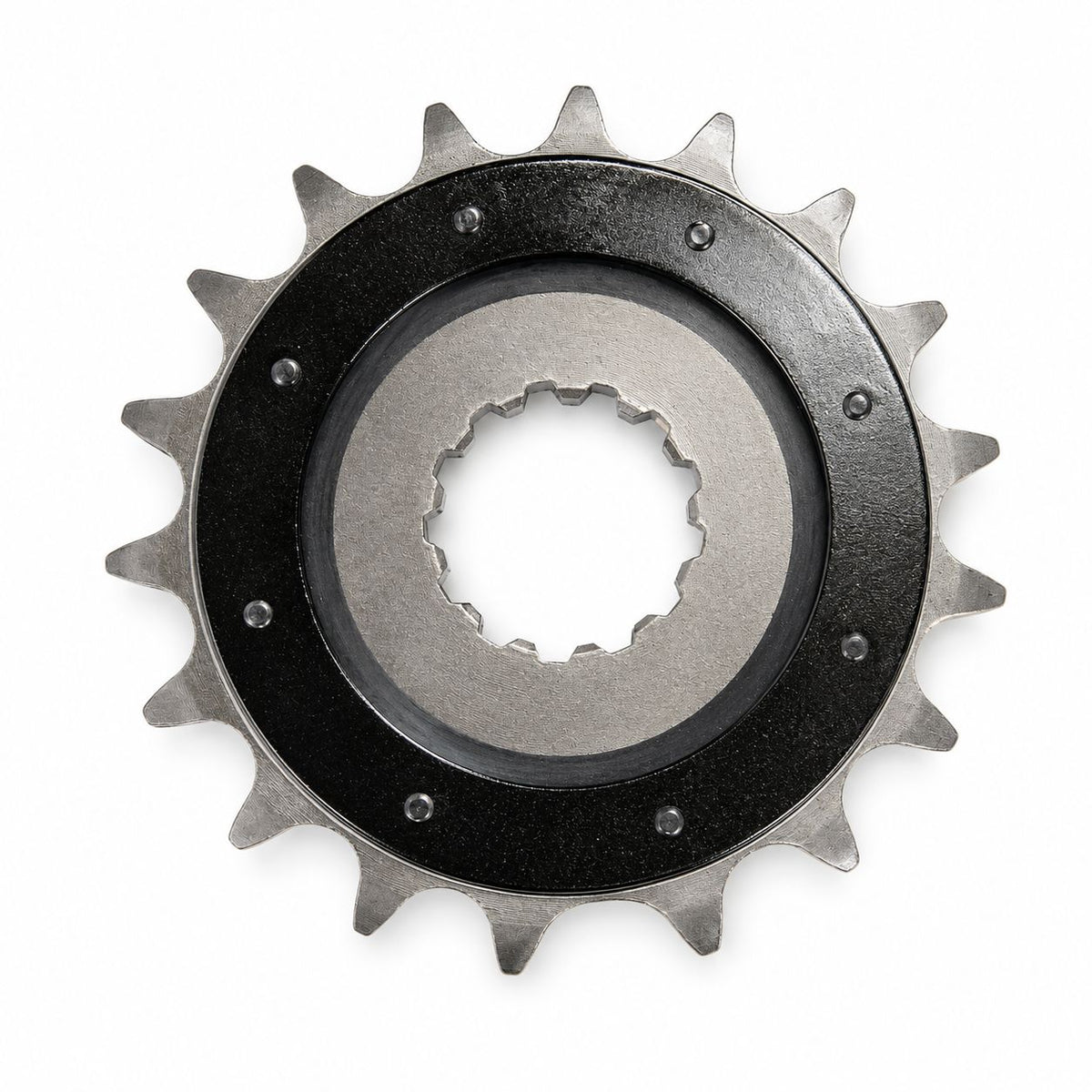

• Front sprocket: Esjot Front Sprocket 50-35030-18P Rubber #530 Silent 18 teeth - e503503018p.18
• Chain: AFAM Chain 530 XSR2-G Xs-Ring 116 with rivet link - a530xsr2.g.116
• Rear sprocket: AFAM Rear Sprocket STEEL #530 48 teeth - a86600.48
• Gear ratio sprocket-chain-rear sprocket: 18-116-48

AFAM 530 XSR2-G

Super-reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical specifications:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the authorization of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-78770

Suitable for

Triumph 751 - 1000 cc Tiger 900 T709 1999
Triumph 751 - 1000 cc Tiger 900 T709 2000
