AFAM chain kit for Triumph Tiger 900 GT ABS 20-21 525 XHR3G chain kit

AFAM Chain Kit for Triumph Tiger 900 GT ABS 20-21 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Tiger 900 GT ABS C7 2020-2021

• Front sprocket: AFAM front sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 122 w. rivet link - a525xhr3.g.122

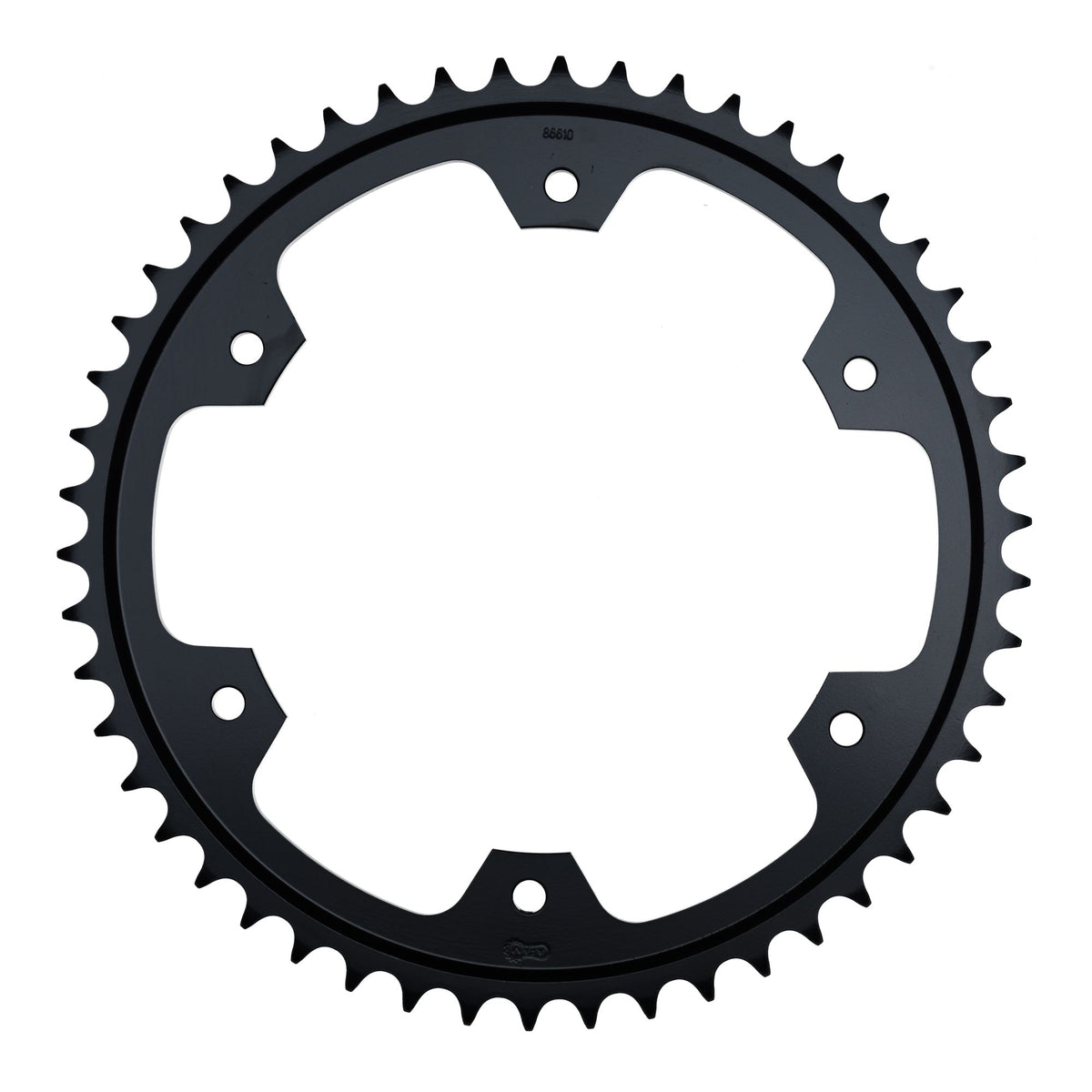

• Rear sprocket: AFAM STEEL rear sprocket #525 50 teeth - a86610.50
• Gear ratio front sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-39066

Suitable for

Triumph 751 - 1000 cc Tiger 900 GT ABS C7 2020
Triumph 751 - 1000 cc Tiger 900 GT ABS C7 2021
