AFAM chain kit for Triumph Tiger 900 GT ABS 24-25 525 XSR2G chain kit

AFAM Chain Kit for Triumph Tiger 900 GT ABS 24-25 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - Manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Triumph Tiger 900 GT ABS C080 2024-2025

• Sprocket: AFAM sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XSR2-G Xs-Ring 122 w. rivet link - a525xsr2.g.122

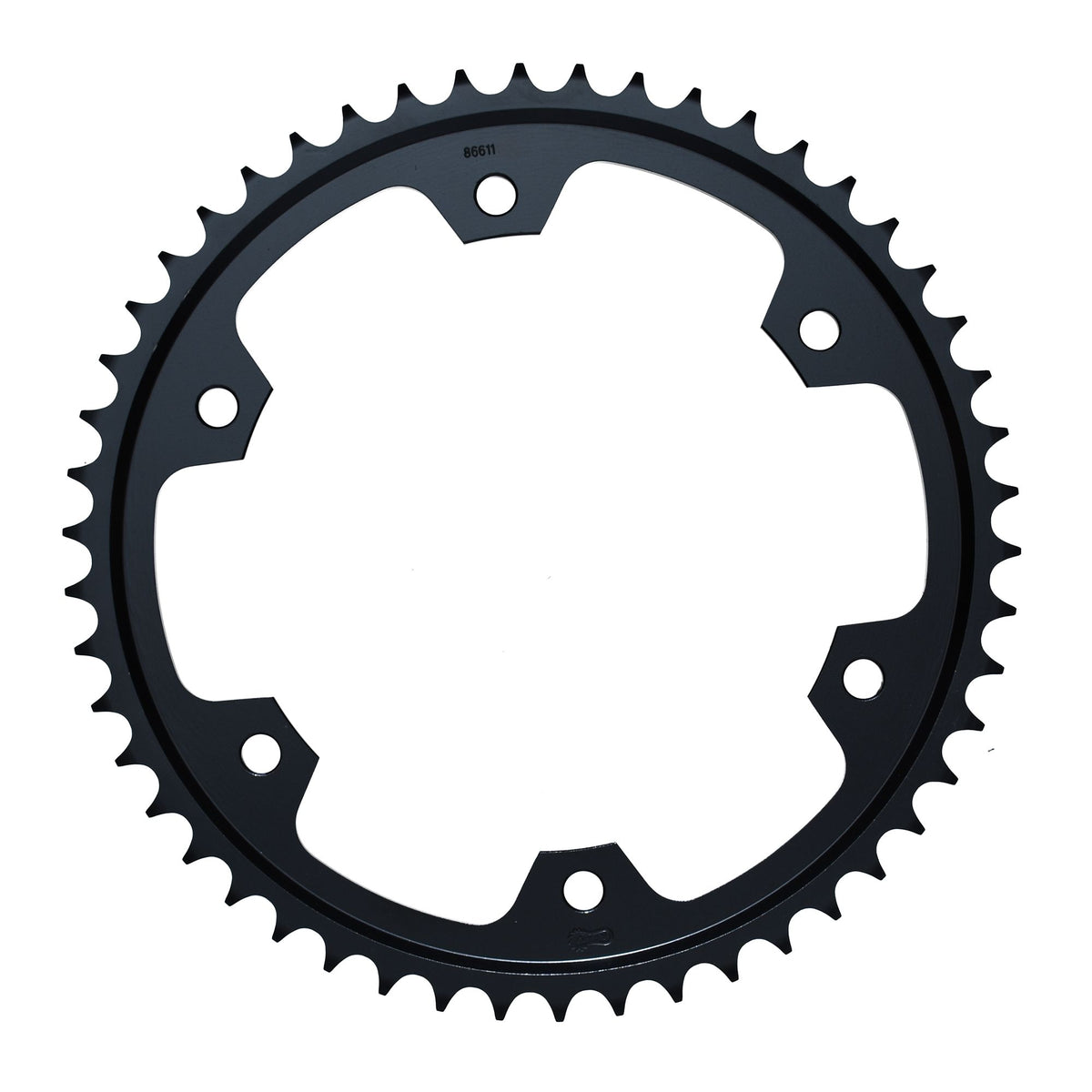

• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86611.50
• Gear ratio sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Inner link plate thickness: 2.2 mm
Outer link plate thickness: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Article number	KKF-77945

Suitable for

Triumph 751 - 1000 cc Tiger 900 GT ABS C080 2024
Triumph 751 - 1000 cc Tiger 900 GT ABS C080 2025
