AFAM chain kit for Triumph Tiger 900 Rally ABS 20-21 525 XHR3G chain kit

AFAM Chain Kit for Triumph Tiger 900 Rally ABS 20-21 525 XHR3G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Tiger 900 Rally ABS C7 2020-2021

• Front sprocket: AFAM front sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 122 links w. rivet link - a525xhr3.g.122

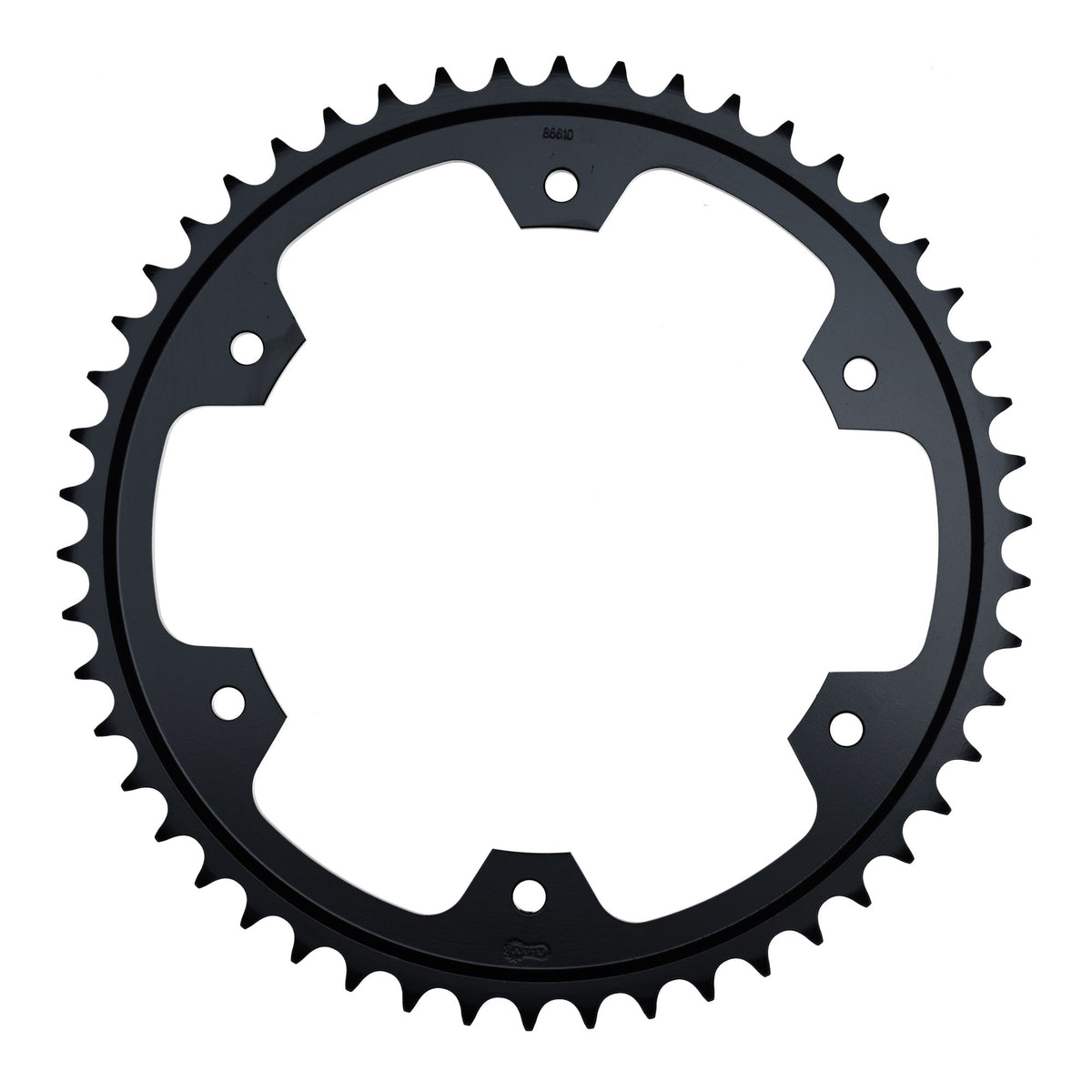

• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86610.50
• Gear ratio front sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-29657

Suitable for

Triumph 751 - 1000 cc Tiger 900 Rally ABS C7 2020
Triumph 751 - 1000 cc Tiger 900 Rally ABS C7 2021
