AFAM chain kit for Triumph Tiger 900 Rally ABS 20-21 525 XSR2G chain kit

AFAM Chain Kit for Triumph Tiger 900 Rally ABS 20-21 525 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Tiger 900 Rally ABS C7 2020-2021

• Front sprocket: AFAM sprocket #525 16 teeth - a28401.16
• Chain: AFAM chain 525 XSR2-G Xs-ring 122 with rivet link - a525xsr2.g.122

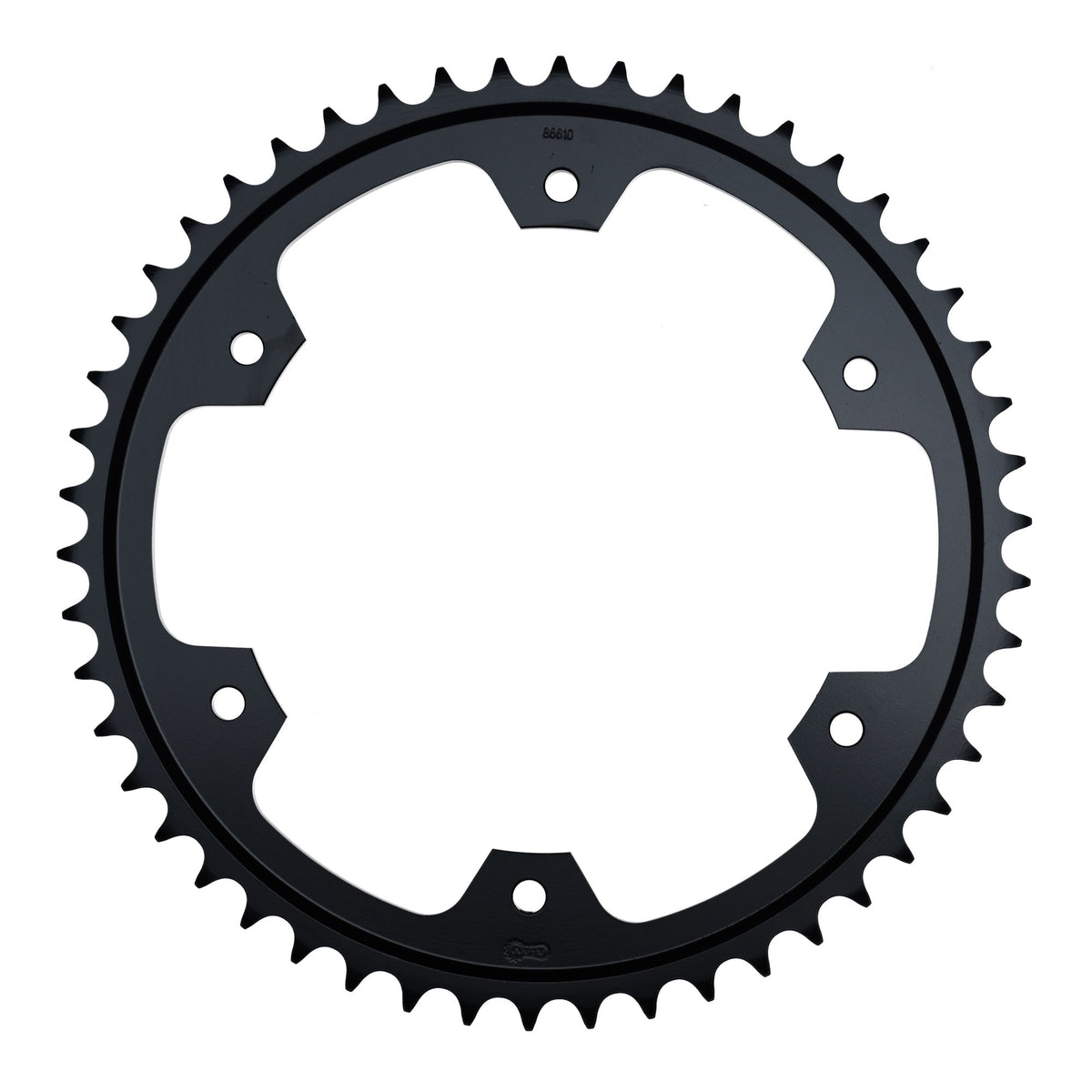

• Rear sprocket: AFAM steel sprocket #525 50 teeth - a86610.50
• Gear ratio sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical specifications:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-51279

Suitable for

Triumph 751 - 1000 cc Tiger 900 Rally ABS C7 2020
Triumph 751 - 1000 cc Tiger 900 Rally ABS C7 2021
