AFAM chain kit for Triumph Tiger 900 Rally Pro ABS 20-21 525 XHR3G chain kit

AFAM chain kit for Triumph Tiger 900 Rally Pro ABS 20-21 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Tiger 900 Rally Pro ABS C7 2020-2021

• Sprocket: AFAM sprocket 28401-16 rubber #525 16 teeth - a28401oem.16
• Chain: AFAM chain 525 XHR3-G Xs-ring 122 w. rivet link - a525xhr3.g.122

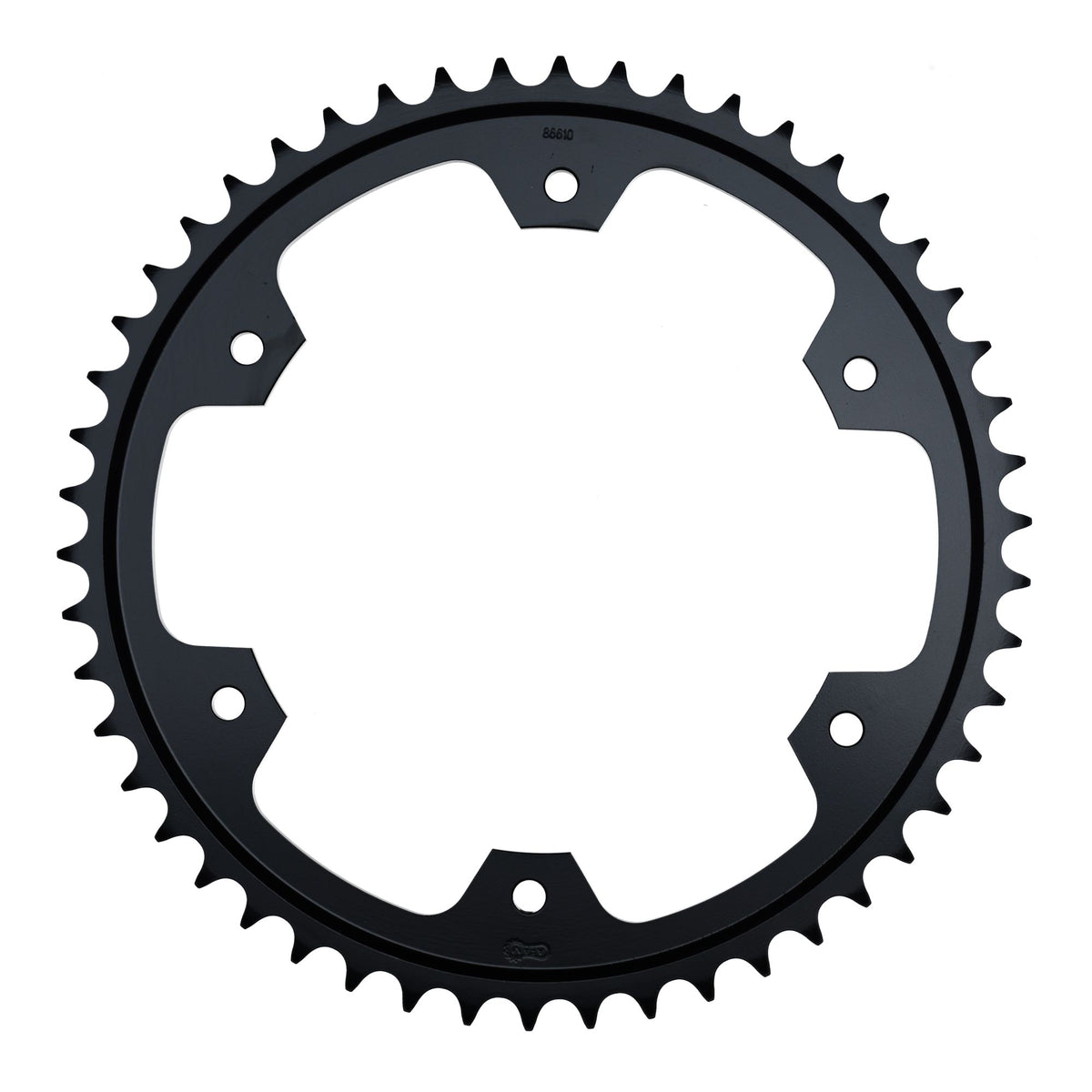

• Rear sprocket: AFAM rear sprocket STEEL #525 50 teeth - a86610.50
• Gear ratio sprocket-chain-rear sprocket: 16-122-50

AFAM 525 XHR3-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-51283

Suitable for

Triumph 751 - 1000 ccm Tiger 900 Rally Pro ABS C7 2020
Triumph 751 - 1000 ccm Tiger 900 Rally Pro ABS C7 2021
