AFAM chain kit for Triumph Tiger 955 i 01-04 530 XHR2G chain kit

AFAM chain kit for Triumph Tiger 955 i 01-04 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Tiger 955 i 709EN 2001-2004

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 114 w. rivet link - a530xhr2.g.114

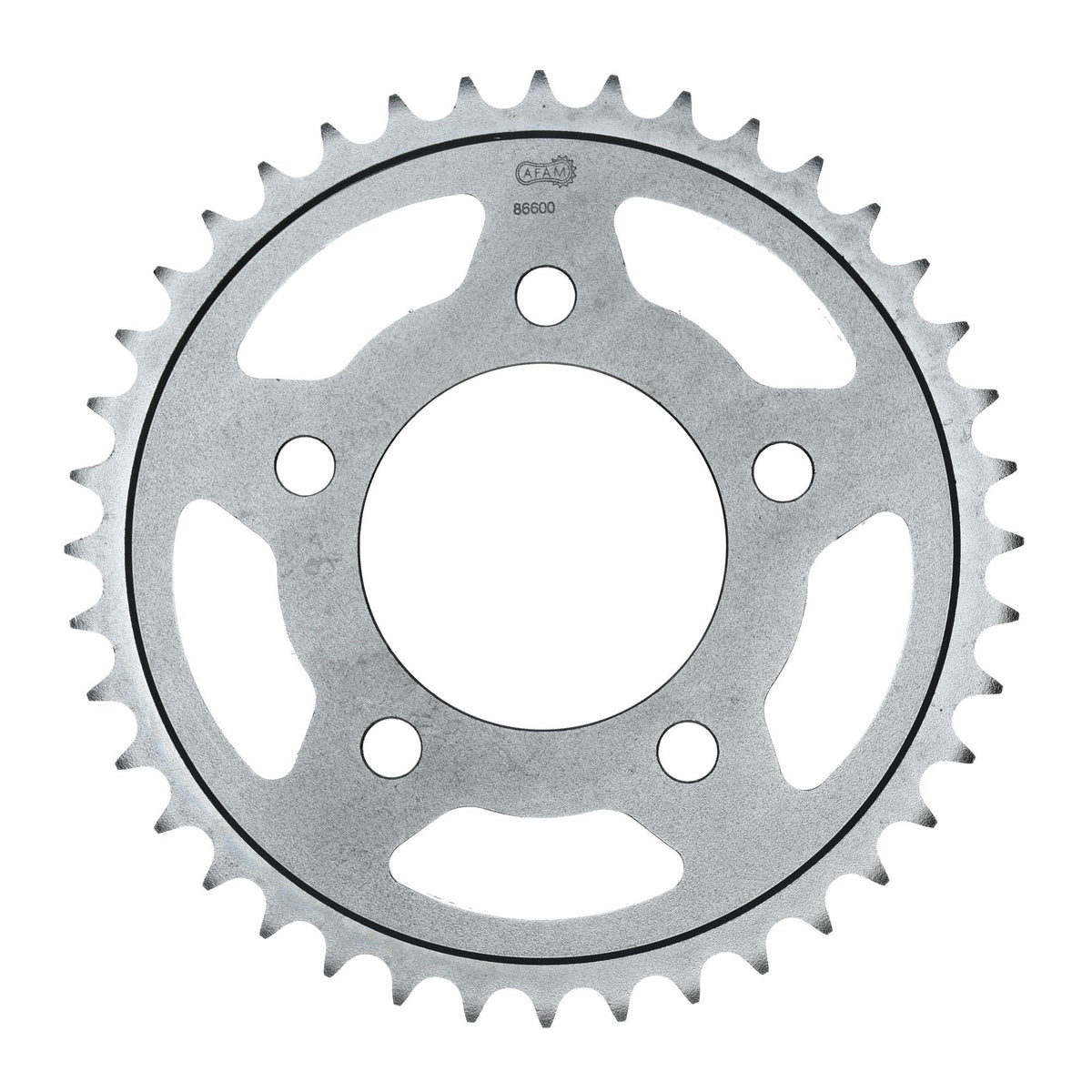

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a86600.46
• Gear ratio sprocket-chain-rear sprocket: 18-114-46

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-17638

Suitable for

Triumph 751 - 1000 cc Tiger 955 i 709EN 2001
Triumph 751 - 1000 cc Tiger 955 i 709EN 2002
Triumph 751 - 1000 cc Tiger 955 i 709EN 2003
Triumph 751 - 1000 cc Tiger 955 i 709EN 2004
