AFAM chain kit for Triumph Tiger Sport 1050 ABS 14-15 530 XHR2G chain kit

AFAM chain kit for Triumph Tiger Sport 1050 ABS 14-15 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Tiger Sport 1050 ABS 115NG 2014-2015 chain kit

• Sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-Ring 120 with rivet link - a530xhr2.g.120

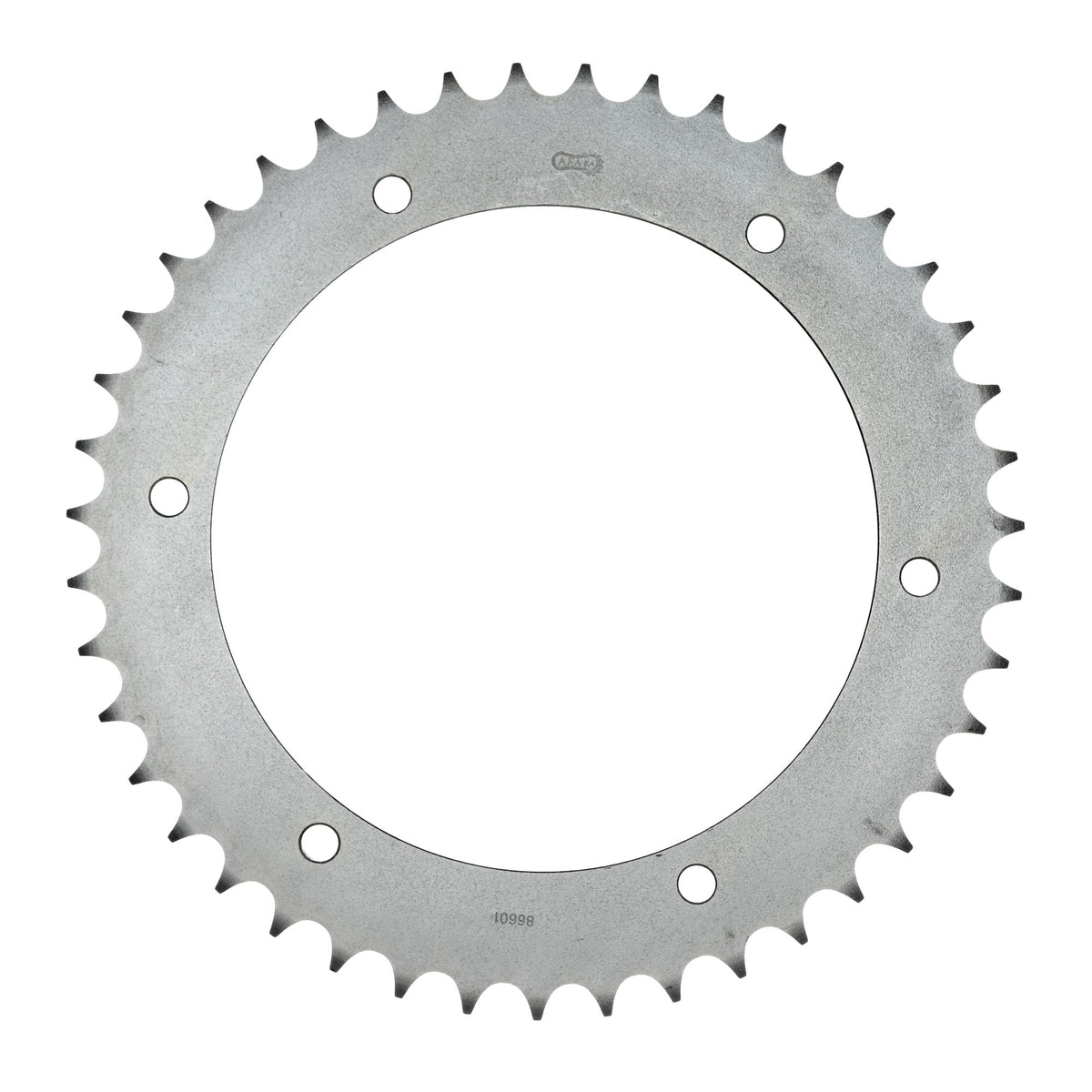

• Chainwheel: AFAM chainwheel STEEL #530 45 teeth - a86601.45
• Gear ratio sprocket-chain-chainwheel: 18-120-45

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer and was not produced on behalf of or with the permission of the motorcycle manufacturer. Mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51123

Suitable for

Triumph over 1001 cc Tiger Sport 1050 ABS 115NG 2014
Triumph over 1001 cc Tiger Sport 1050 ABS 115NG 2015
