AFAM chain kit for Triumph Tiger Sport 1050 ABS 17-18 530 XHR2G chain kit

AFAM chain kit for Triumph Tiger Sport 1050 ABS 17-18 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Tiger Sport 1050 ABS NH01 2017-2018

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 120 with rivet link - a530xhr2.g.120

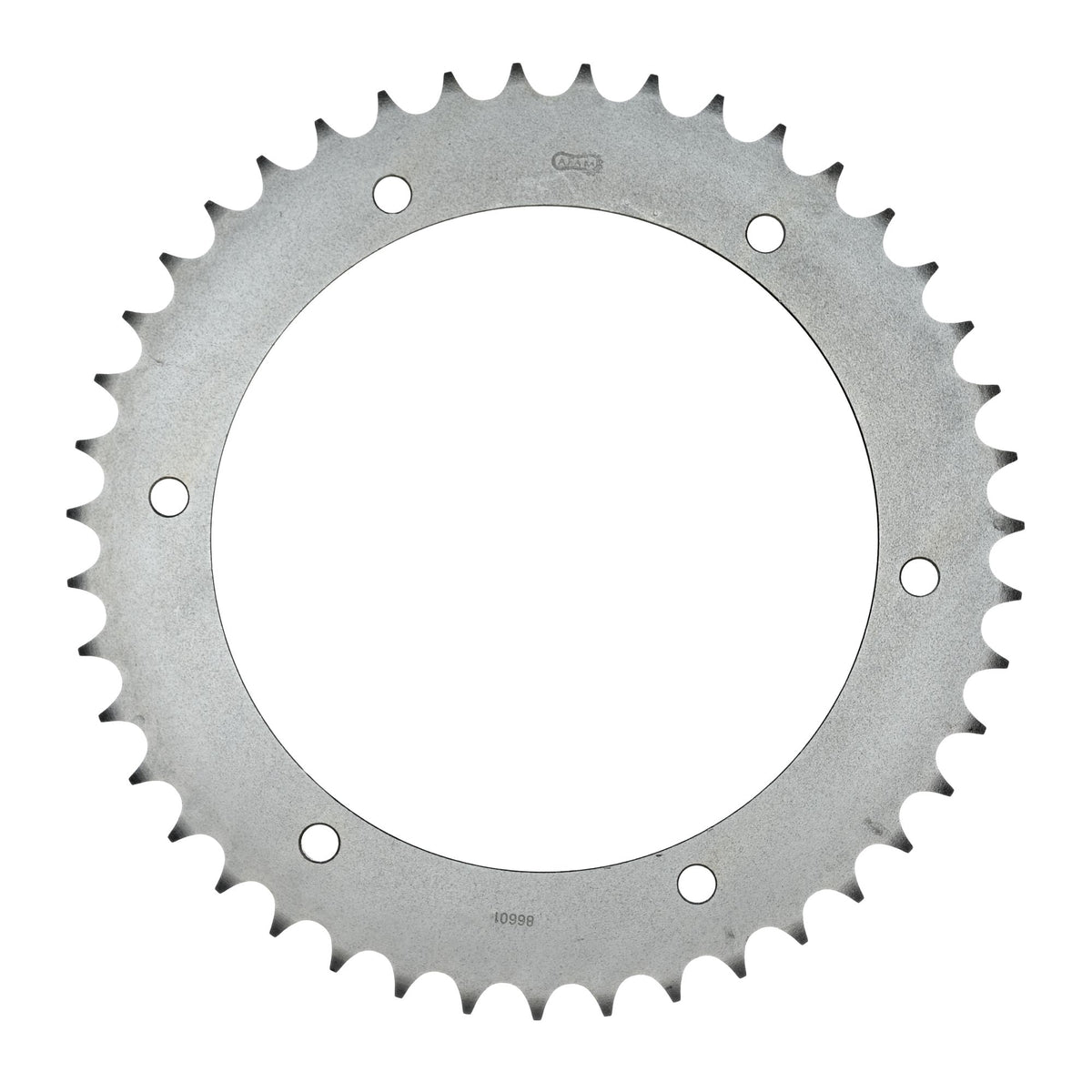

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a86601.45
• Gear ratio front sprocket-chain-rear sprocket: 18-120-45

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-17384

Suitable for

Triumph over 1001 cc Tiger Sport 1050 ABS NH01 2017
Triumph over 1001 cc Tiger Sport 1050 ABS NH01 2018
