AFAM chain kit for Triumph Tiger Sport 1050 ABS 2016 530 XSR2G chain kit

AFAM chain kit for Triumph Tiger Sport 1050 ABS 2016 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Triumph Tiger Sport 1050 ABS NH01 2016-2016

• Front sprocket: AFAM front sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XSR2-G Xs-ring 120 links. Rivet link - a530xsr2.g.120

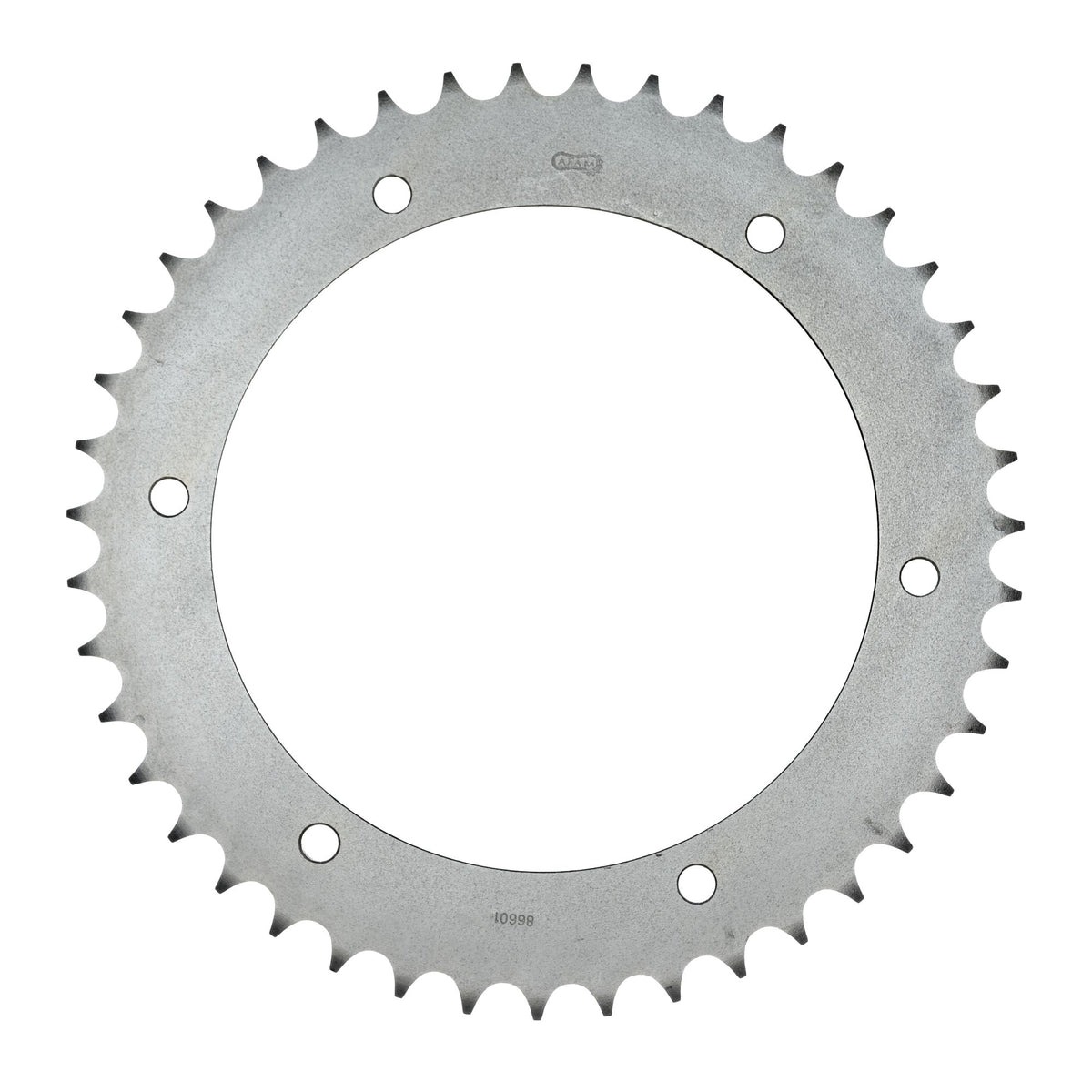

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a86601.45
• Gear ratio front sprocket-chain-rear sprocket: 18-120-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-29408

Suitable for

Triumph over 1001 cc Tiger Sport 1050 ABS NH01 2016
