AFAM chain kit for Triumph Tiger Sport 660 2025 520 MR2G chain kit

AFAM chain kit for Triumph Tiger Sport 660 2025 520 MR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Triumph Tiger Sport 660 LG22/LG23 2025-2025 chain kit

• Sprocket: AFAM sprocket #520 16 teeth - a27500.16
• Chain: AFAM chain 520 MR2-G w. clip master link - a520mr2.g.122

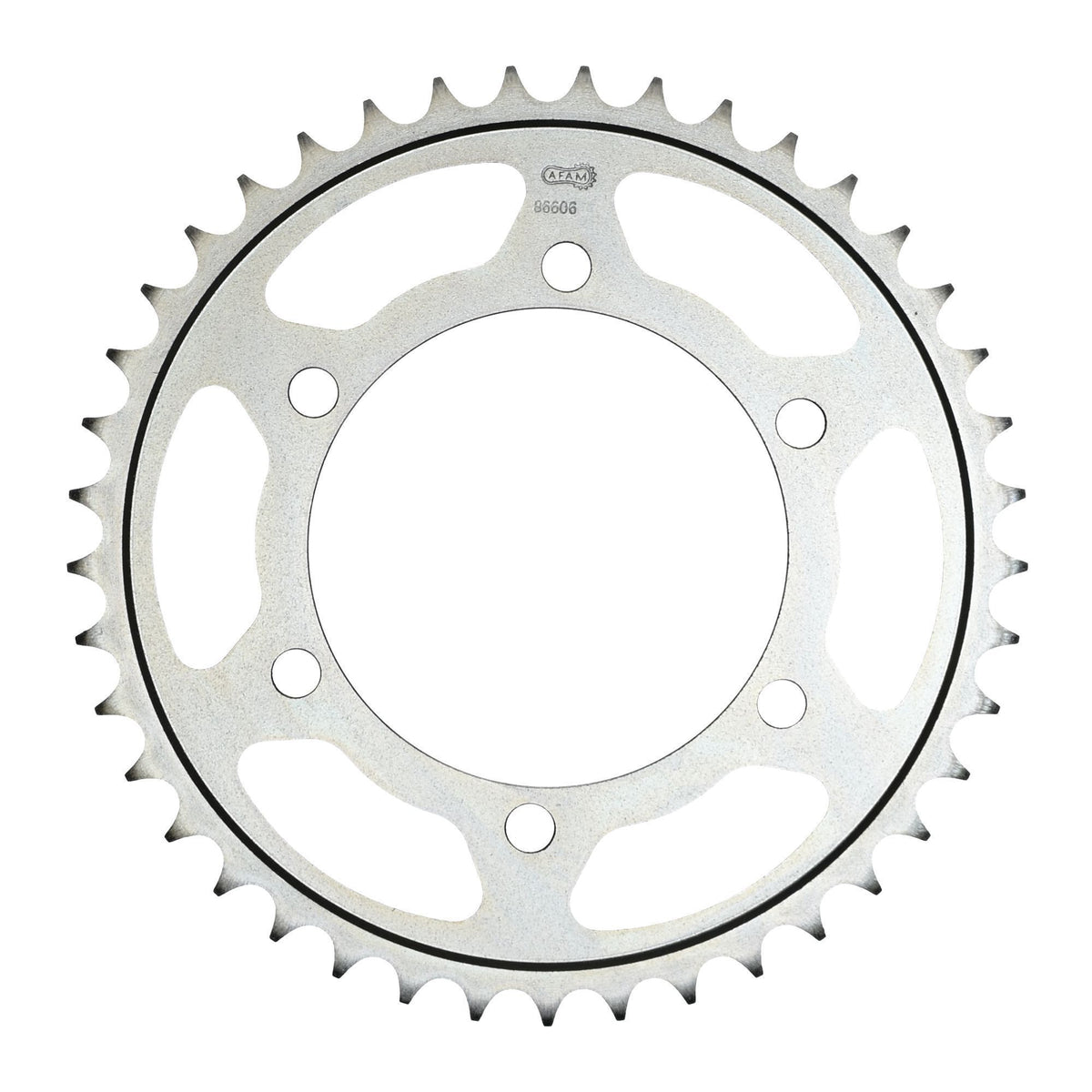

• Rear sprocket: AFAM STEEL rear sprocket #520 51 teeth - a86606.51
• Transmission ratio sprocket-chain-rear sprocket: 16-122-51

AFAM 520 MR2-G

Reinforced chain
Without O-rings
Color: Gold
Application by displacement: up to 250 cc / road, off-road, and motocross

Technical data:
Pitch: 520
Pin length: 18.9 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.64 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not manufactured on behalf of or with the approval of the motorcycle manufacturer. The brand name is used solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-78068

Suitable for

Triumph 501 - 750 cc Tiger Sport 660 LG22/LG23 2025
