AFAM chain kit for Triumph Trident 660 ABS 2025 520 XRR3G chain kit

AFAM chain kit for Triumph Trident 660 ABS 2025 520 XRR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit Triumph Trident 660 ABS LG22/23 2025-2025

• Front sprocket: AFAM front sprocket #520 16 teeth - a27500.16
• Chain: AFAM chain 520 XRR3-G Xs-ring 120 w. clip link - a520xrr3.g.120

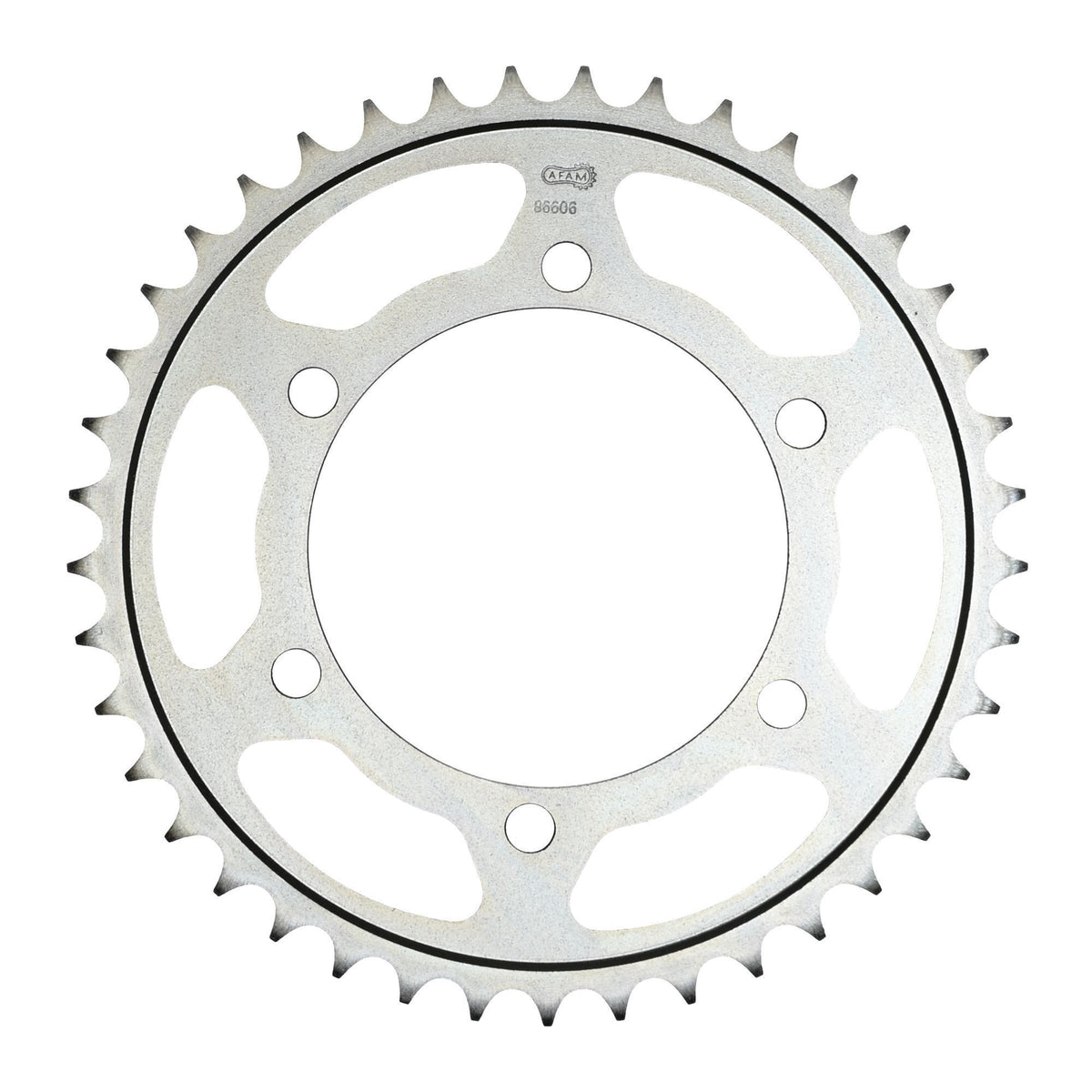

• Rear sprocket: AFAM rear sprocket STEEL #520 51 teeth - a86606.51
• Transmission ratio front sprocket-chain-rear sprocket: 16-120-51

AFAM 520 XRR3-G

Lightly reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by displacement: up to 500 cc / road and off-road

Technical data:
Pitch: 520
Pin length: 21.00 mm
Roller Ø: 10.16 mm
Plate thickness: inner: 2.0 mm
Plate thickness: outer: 2.0 mm
Tensile strength: 34.30 kN
Weight per 100 links: 1.58 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-77926

Fits

Triumph 501 - 750 cc Trident 660 ABS LG22/23 2025
