AFAM chain kit for Triumph Trident 900 94-98 530 XHR2G chain kit

AFAM chain kit for Triumph Trident 900 94-98 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Trident 900 T300C 1994-1998

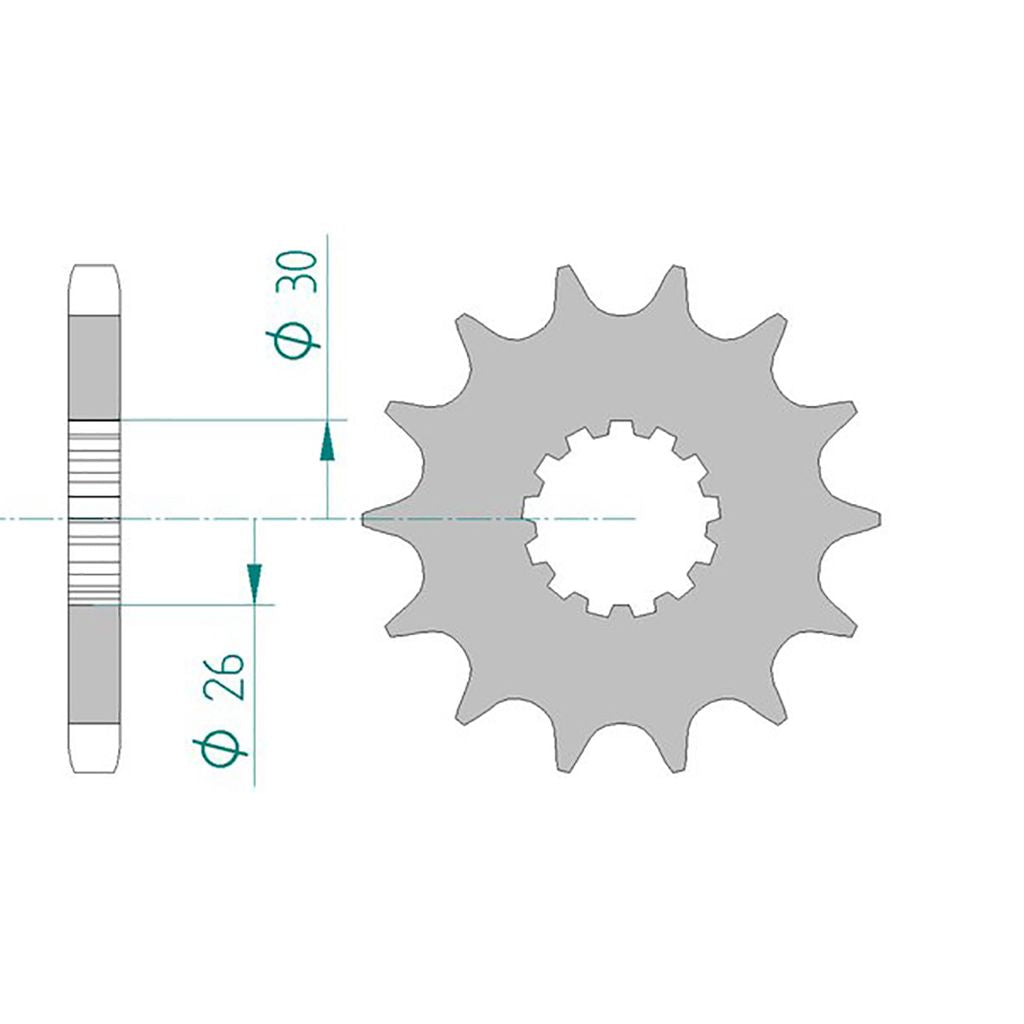

• Front sprocket: Esjot front sprocket 88800-17 #530 Sport 17 teeth - a88800s.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 112 with rivet link - a530xhr2.g.112

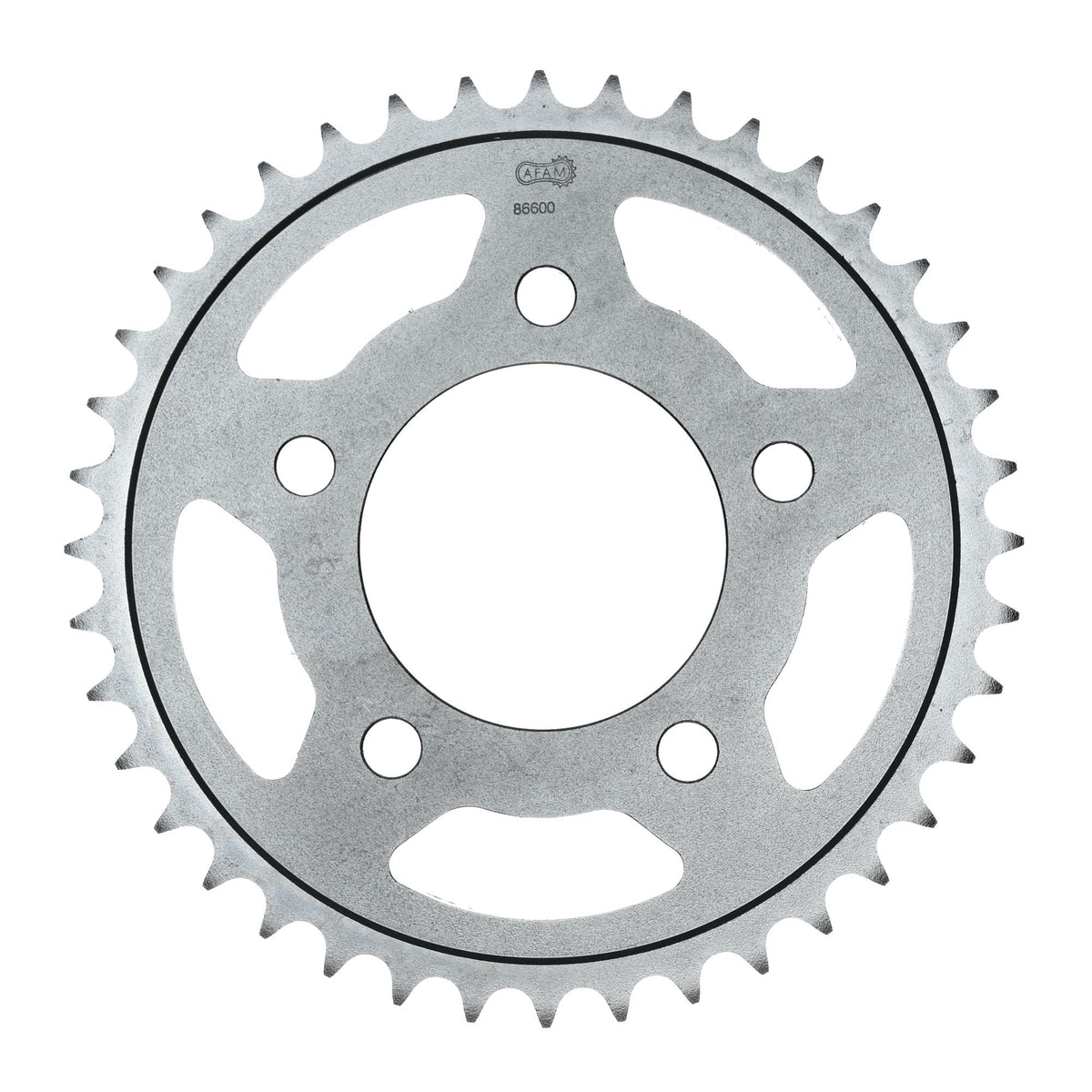

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a86600.46
• Gear ratio front sprocket-chain-rear sprocket: 17-112-46

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52934

Fits

Triumph 751 - 1000 cc Trident 900 T300C 1994
Triumph 751 - 1000 cc Trident 900 T300C 1995
Triumph 751 - 1000 cc Trident 900 T300C 1996
Triumph 751 - 1000 cc Trident 900 T300C 1997
Triumph 751 - 1000 cc Trident 900 T300C 1998
