AFAM chain kit for Triumph Trident 900 94-98 530 XSR2G chain kit

AFAM Chain Kit for Triumph Trident 900 94-98 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Trident 900 T300C 1994-1998

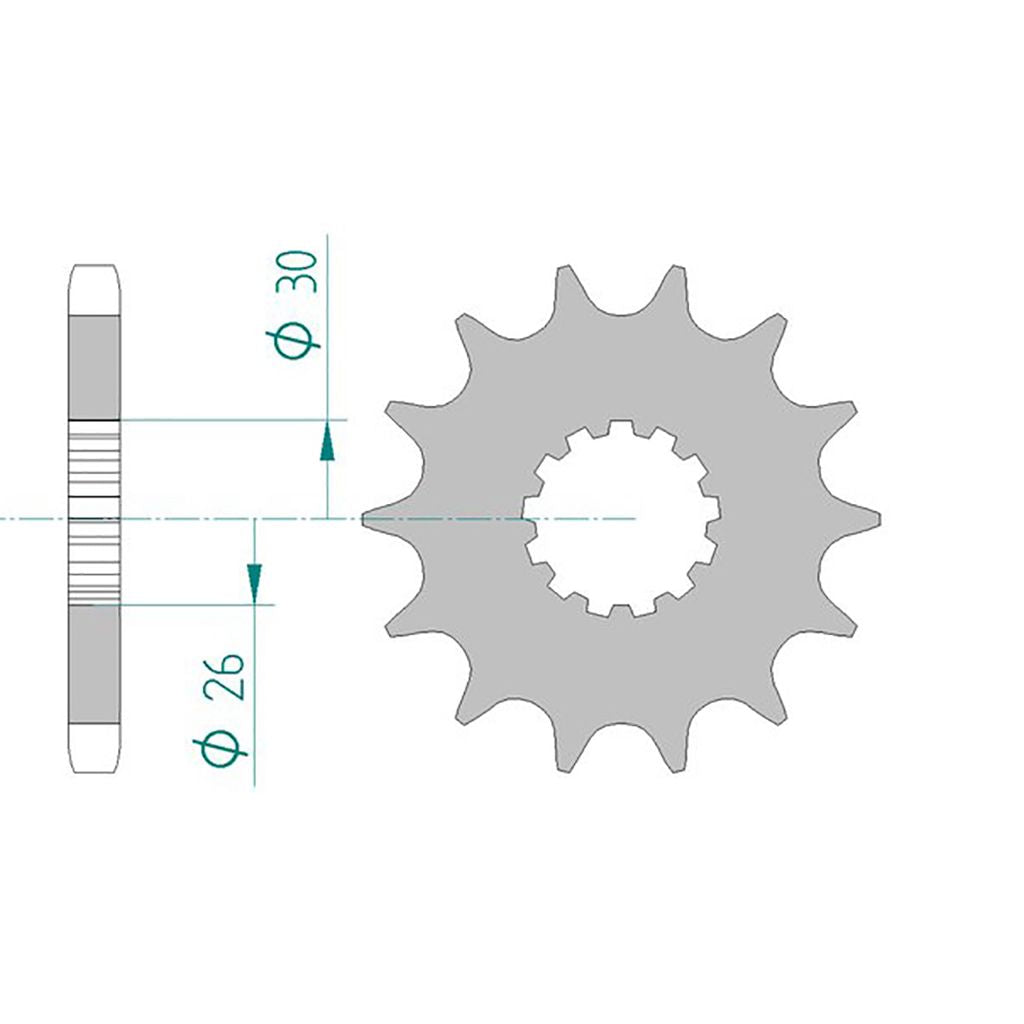

• Sprocket: Esjot sprocket 88800-17 #530 Sport 17 teeth - a88800s.17
• Chain: AFAM chain 530 XSR2-G Xs-Ring 112 with rivet link - a530xsr2.g.112
• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a86600.46
• Gear ratio sprocket-chain-rear sprocket: 17-112-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52935

Suitable for

Triumph 751 - 1000 cc Trident 900 T300C 1994
Triumph 751 - 1000 cc Trident 900 T300C 1995
Triumph 751 - 1000 cc Trident 900 T300C 1996
Triumph 751 - 1000 cc Trident 900 T300C 1997
Triumph 751 - 1000 cc Trident 900 T300C 1998
