AFAM chain kit for Triumph Trophy 1200 00-03 530 XHR2G chain kit

AFAM chain kit for Triumph Trophy 1200 00-03 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the Triumph Trophy 1200 342CSM 2000-2003 chain kit

• Sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 108 w. rivet link - a530xhr2.g.108

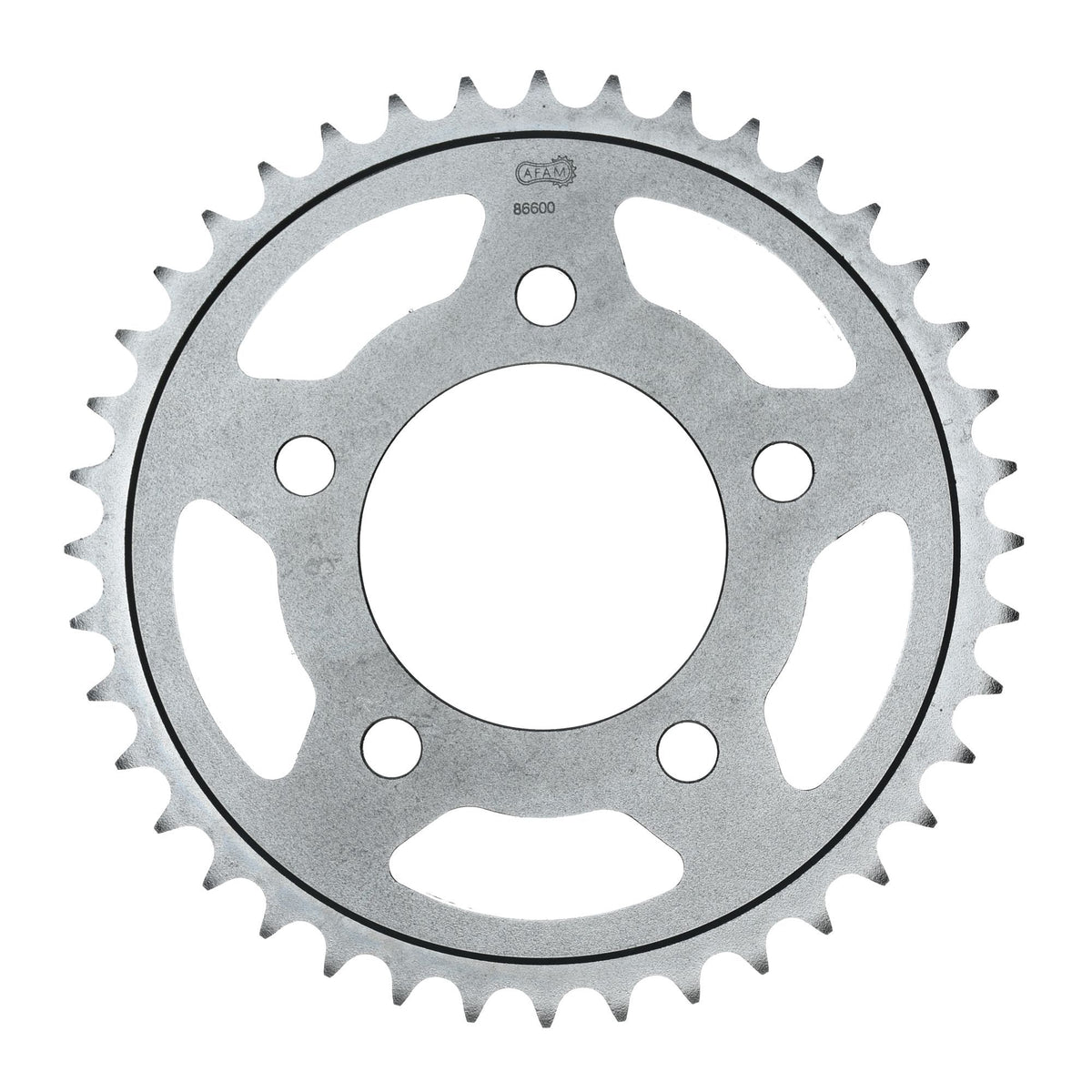

• Rear sprocket: AFAM STEEL rear sprocket #530 42 teeth - a86600.42
• Gear ratio sprocket-chain-rear sprocket: 18-108-42

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-37735

Fits

Triumph over 1001 cc Trophy 1200 342CSM 2000
Triumph over 1001 cc Trophy 1200 342CSM 2001
Triumph over 1001 cc Trophy 1200 342CSM 2002
Triumph over 1001 cc Trophy 1200 342CSM 2003
