AFAM chain kit for Triumph Trophy 1200 2001 530 XHR2G chain kit

AFAM Chain Kit for Triumph Trophy 1200 2001 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Chain Kit Triumph Trophy 1200 342CSM 2001-2001

• Sprocket: AFAM Sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM Chain 530 XHR2-G Xs-Ring 108 w. rivet link - a530xhr2.g.108

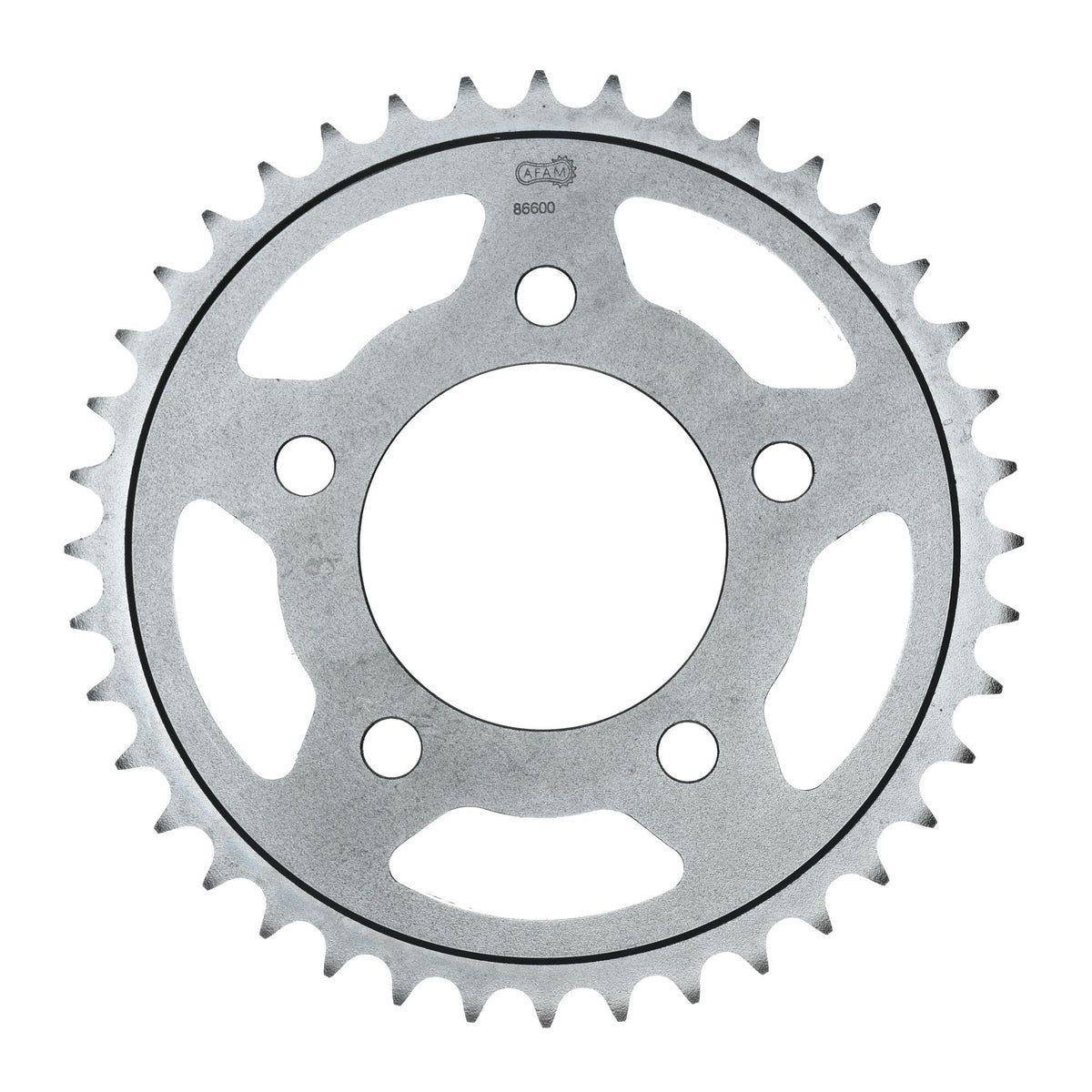

• Rear sprocket: AFAM Rear sprocket STEEL #530 40 teeth - a86600.40
• Gear ratio sprocket-chain-rear sprocket: 19-108-40

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-Ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand is exclusively for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-52623

Suitable for

Triumph over 1001 cc Trophy 1200 342CSM 2001
