AFAM chain kit for Triumph Trophy 1200 2001 530 XSR2G chain kit

AFAM Chain Kit for Triumph Trophy 1200 2001 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the Triumph Trophy 1200 342CSM 2001-2001 chain kit

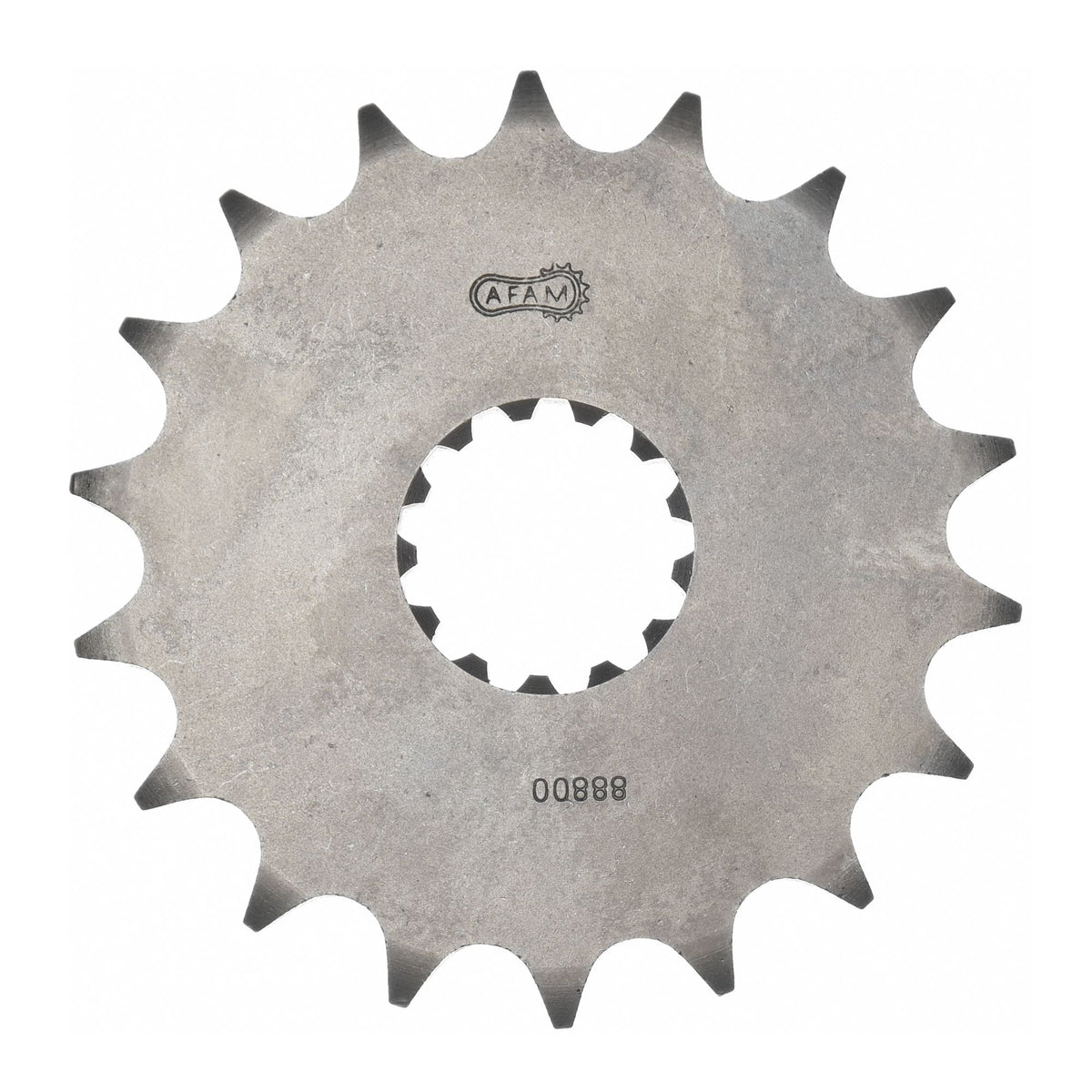

• Front sprocket: AFAM sprocket #530 TRI 900-1200 19 teeth - a88800.19
• Chain: AFAM chain 530 XSR2-G Xs-Ring 108 w. rivet link - a530xsr2.g.108

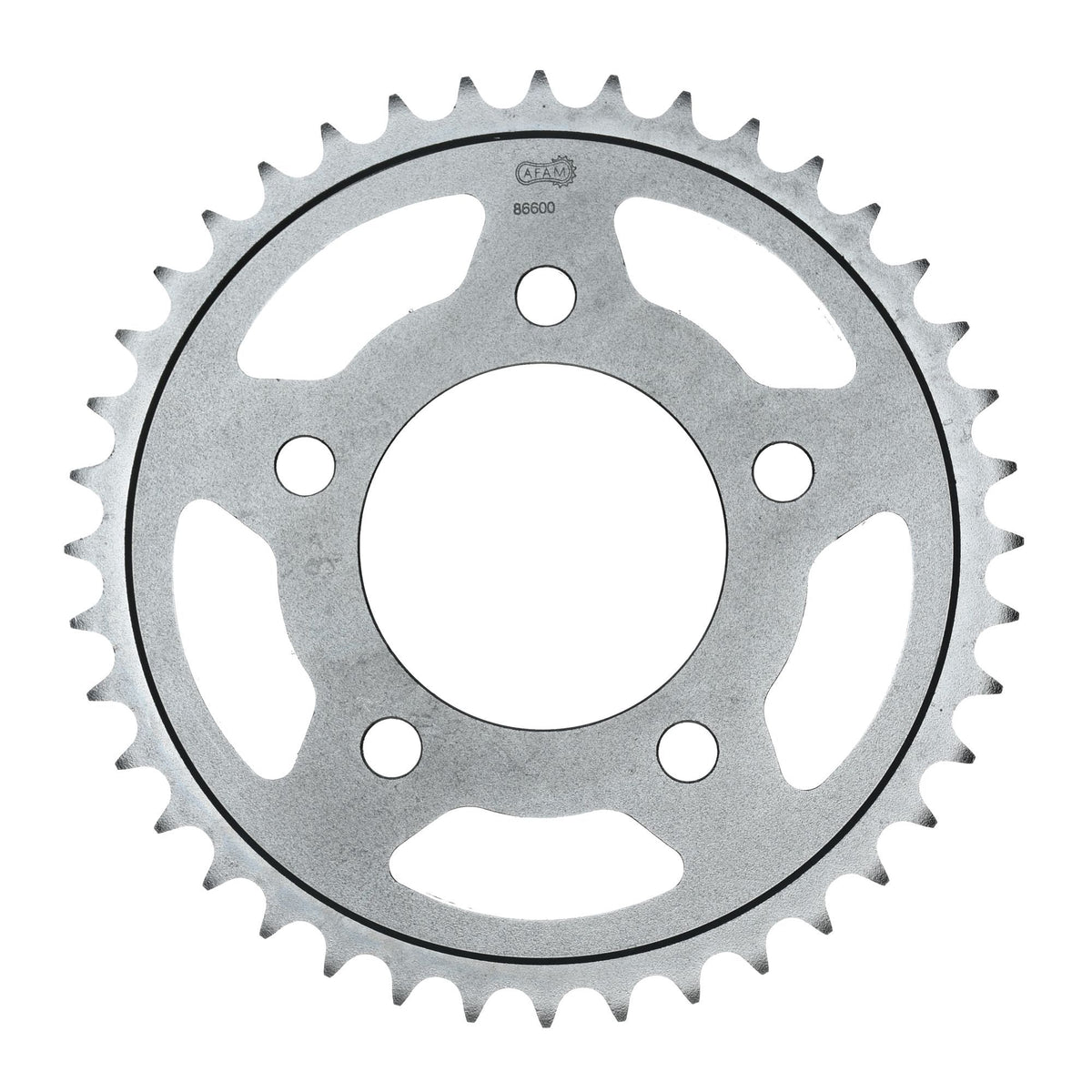

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a86600.40
• Gear ratio sprocket-chain-rear sprocket: 19-108-40

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-52624

Suitable for

Triumph over 1001 cc Trophy 1200 342CSM 2001
