AFAM chain kit for Triumph Trophy 1200 91-96 530 XHR2G chain kit

AFAM chain kit for Triumph Trophy 1200 91-96 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Triumph Trophy 1200 342CSM 1991-1996

• Front sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 112 with rivet link - a530xhr2.g.112

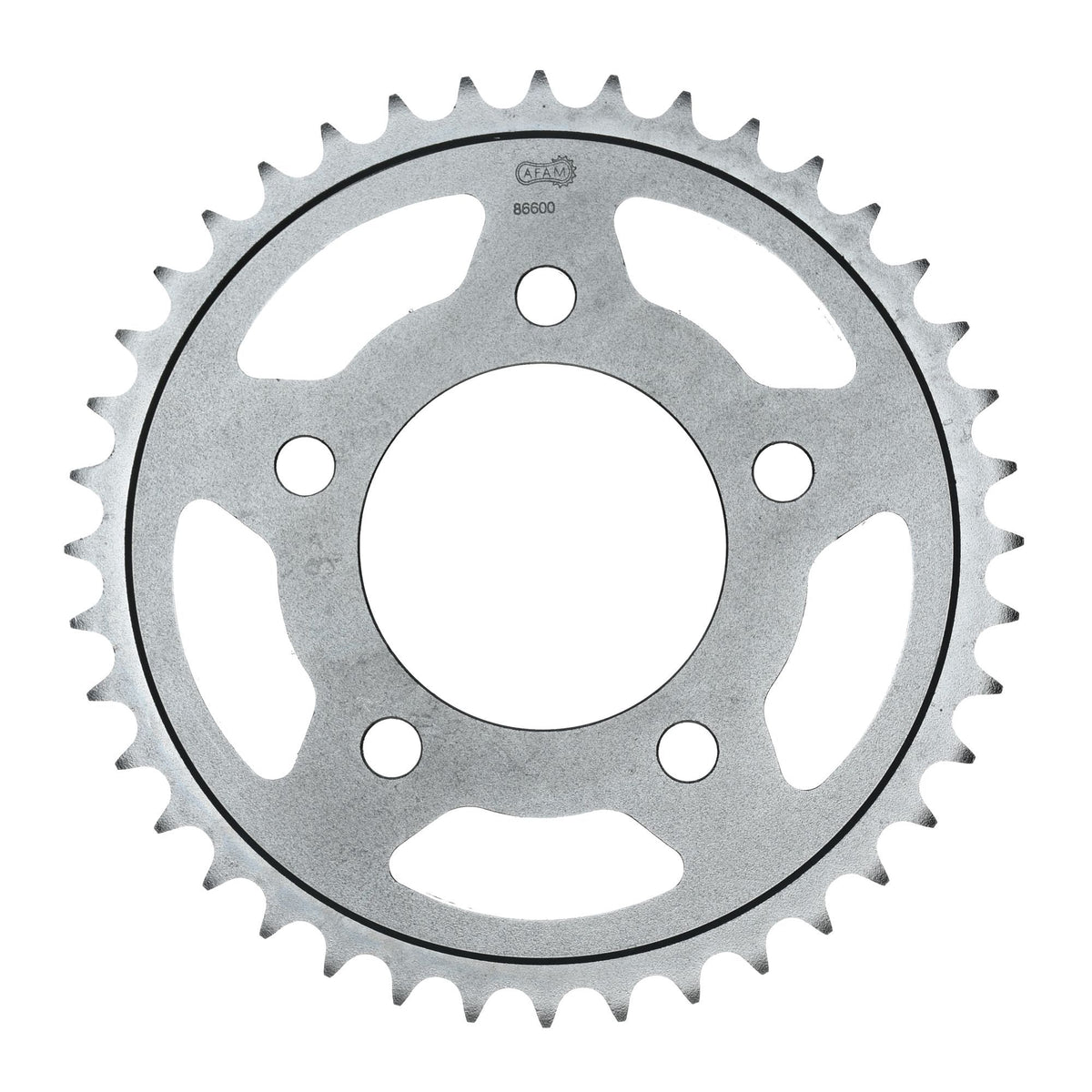

• Rear sprocket: AFAM STEEL rear sprocket #530 45 teeth - a86600.45
• Gear ratio sprocket-chain-rear sprocket: 18-112-45

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth running characteristics. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer and were not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-29438

Suitable for

Triumph over 1001 cc Trophy 1200 342CSM 1991
Triumph over 1001 cc Trophy 1200 342CSM 1992
Triumph over 1001 cc Trophy 1200 342CSM 1993
Triumph over 1001 cc Trophy 1200 342CSM 1994
Triumph over 1001 cc Trophy 1200 342CSM 1995
Triumph over 1001 cc Trophy 1200 342CSM 1996
