AFAM chain kit for Triumph Trophy 1200 97-99 530 XHR2G chain kit

AFAM chain kit for Triumph Trophy 1200 97-99 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph Trophy 1200 342CSM 1997-1999

• Sprocket: AFAM sprocket #530 TRI 900-1200 18 teeth - a88800.18
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 with rivet link - a530xhr2.g.110

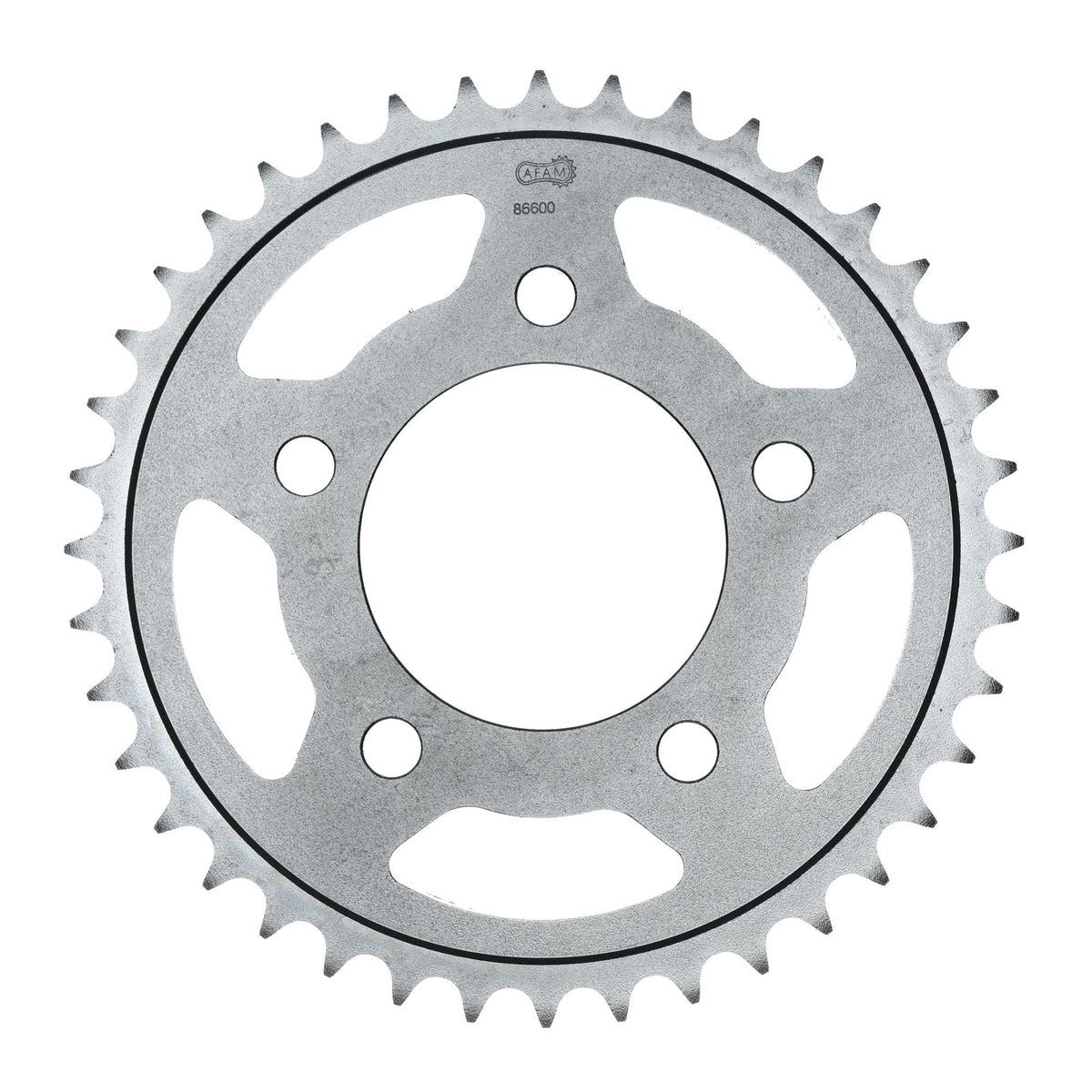

• Rear sprocket: AFAM rear sprocket STEEL #530 42 teeth - a86600.42
• Transmission ratio sprocket-chain-rear sprocket: 18-110-42

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer that was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51141

Fits

Triumph over 1001 cc Trophy 1200 342CSM 1997
Triumph over 1001 cc Trophy 1200 342CSM 1998
Triumph over 1001 cc Trophy 1200 342CSM 1999
