AFAM chain kit for Triumph Trophy 900 94-01 530 XHR2G chain kit

AFAM chain kit for Triumph Trophy 900 94-01 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned for compatibility purposes only!

Components of the chain kit Triumph Trophy 900 T300E 1994-2001

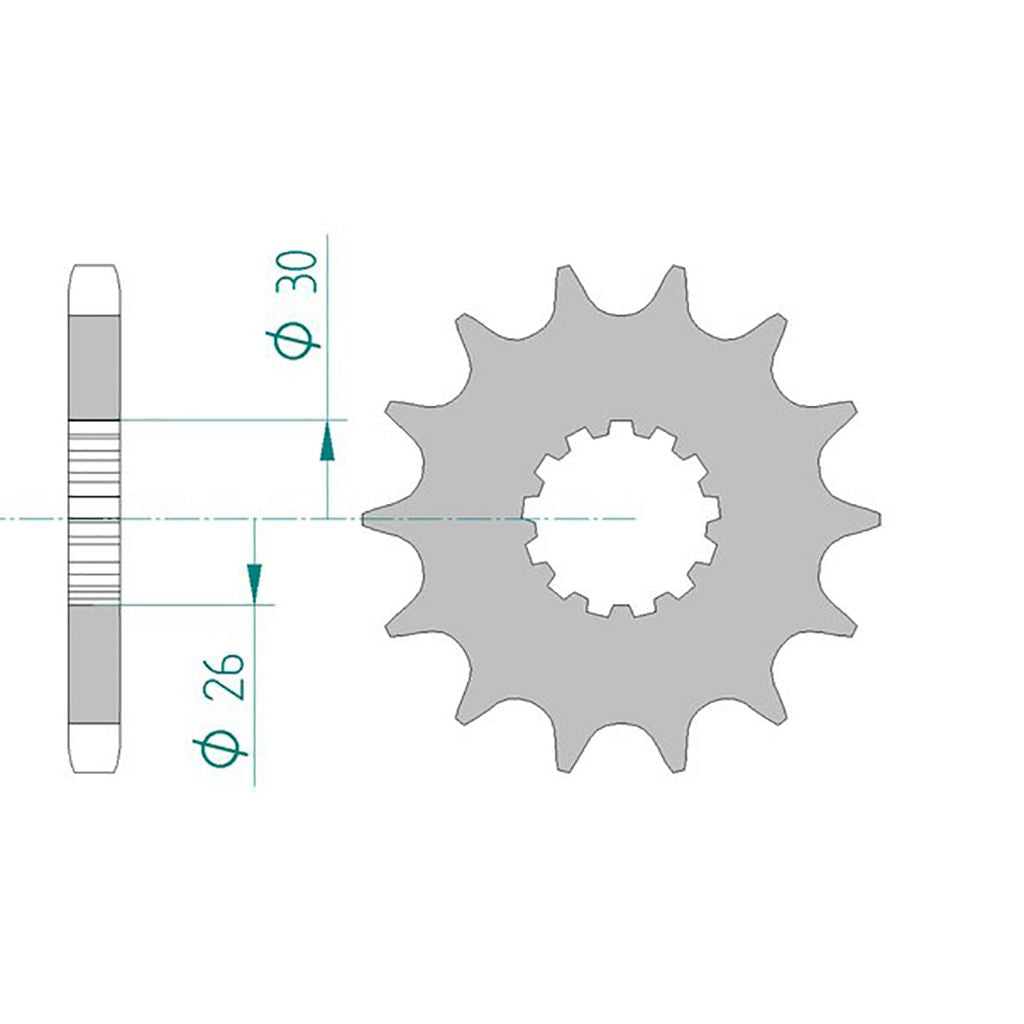

• Front sprocket: Esjot front sprocket 88800-17 #530 Sport 17 teeth - a88800s.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 w. rivet link - a530xhr2.g.110
• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86600.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 530 XHR2-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered goods are an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52940

Suitable for

Triumph 751 - 1000 cc Trophy 900 T300E 1994
Triumph 751 - 1000 cc Trophy 900 T300E 1995
Triumph 751 - 1000 cc Trophy 900 T300E 1996
Triumph 751 - 1000 cc Trophy 900 T300E 1997
Triumph 751 - 1000 cc Trophy 900 T300E 1998
Triumph 751 - 1000 cc Trophy 900 T300E 1999
Triumph 751 - 1000 cc Trophy 900 T300E 2000
Triumph 751 - 1000 cc Trophy 900 T300E 2001
