AFAM chain kit for Triumph Trophy 900 94-01 530 XMR3 chain kit

AFAM chain kit for Triumph Trophy 900 94-01 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding connecting link.

Unless otherwise stated: No original part - Manufacturer names are only for the purpose of illustrating compatibility!

Components of the Triumph Trophy 900 T300E 1994-2001 chain kit

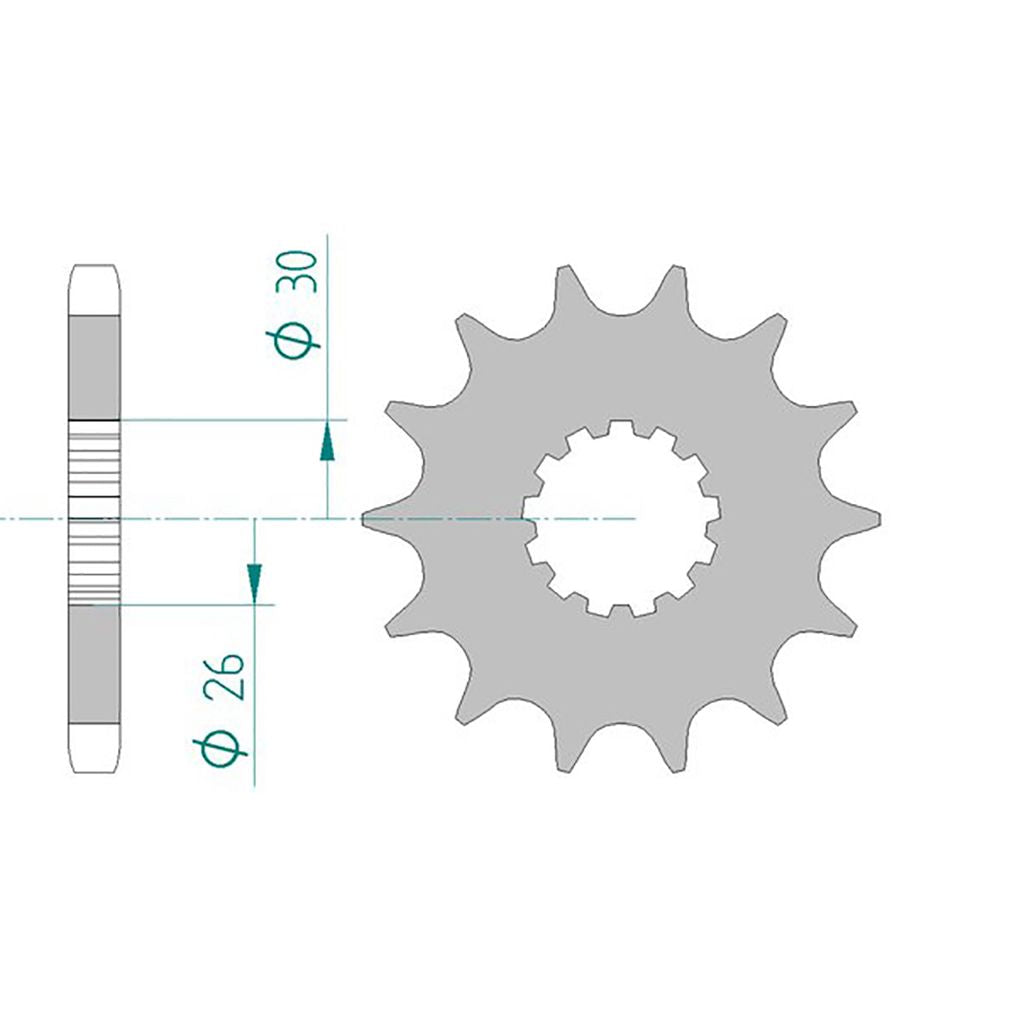

• Front sprocket: Esjot front sprocket 88800-17 #530 Sport 17 teeth - a88800s.17
• Chain: AFAM chain 530 XMR3 Xs-ring 110 w. rivet link - a530xmr3.110

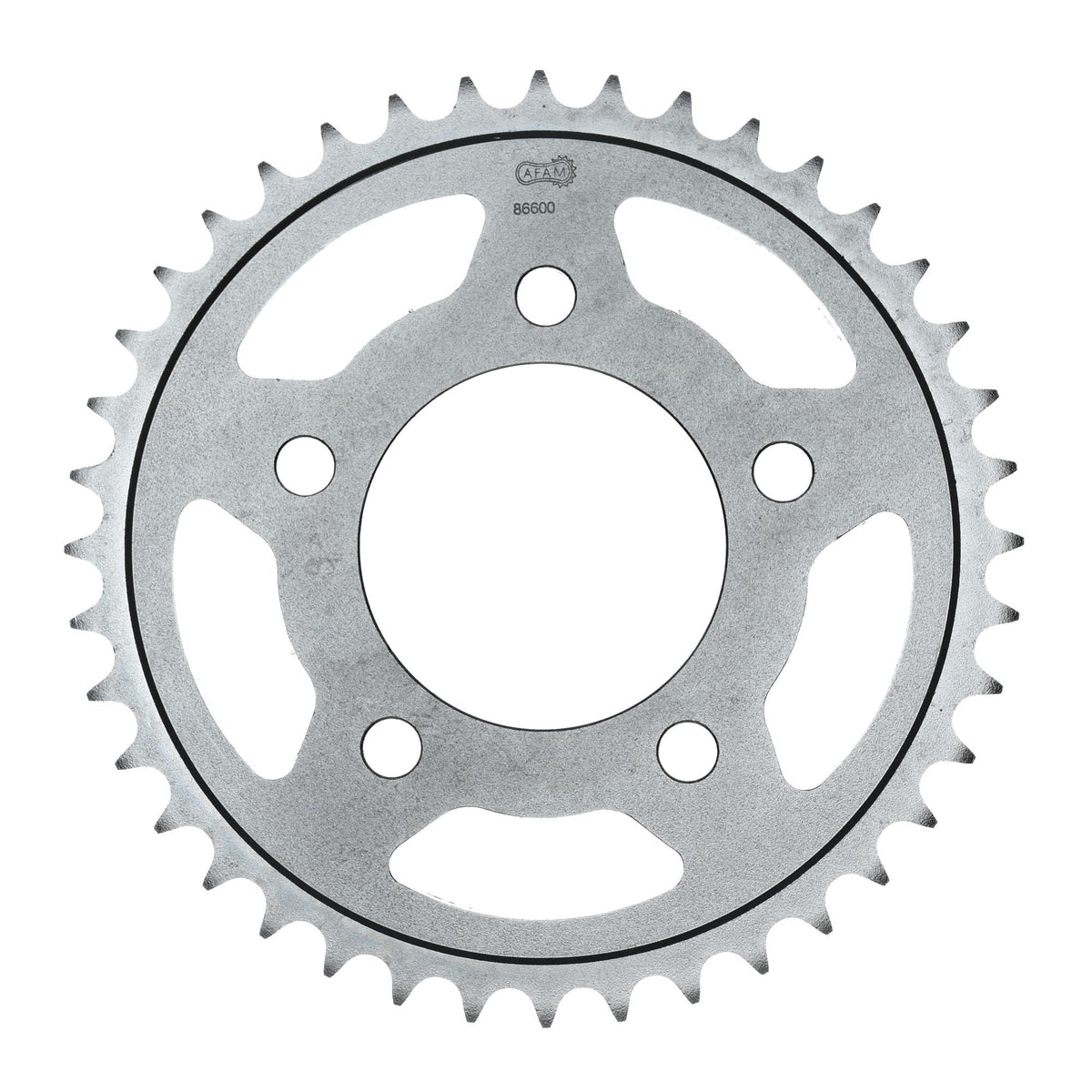

• Rear sprocket: AFAM rear sprocket STEEL #530 43 teeth - a86600.43
• Gear ratio front sprocket-chain-rear sprocket: 17-110-43

AFAM 530 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by displacement: up to 800 cc / road

Technical data:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-78085

Suitable for

Triumph 751 - 1000 cc Trophy 900 T300E 1994
Triumph 751 - 1000 cc Trophy 900 T300E 1995
Triumph 751 - 1000 cc Trophy 900 T300E 1996
Triumph 751 - 1000 cc Trophy 900 T300E 1997
Triumph 751 - 1000 cc Trophy 900 T300E 1998
Triumph 751 - 1000 cc Trophy 900 T300E 1999
Triumph 751 - 1000 cc Trophy 900 T300E 2000
Triumph 751 - 1000 cc Trophy 900 T300E 2001
