AFAM chain kit for Triumph TT 600 2004 525 XHR3G chain kit

AFAM Chain Kit for Triumph TT 600 2004 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is delivered open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are only used to indicate compatibility!

Components of the chain kit Triumph TT 600 from VIN 165717 2004-2004

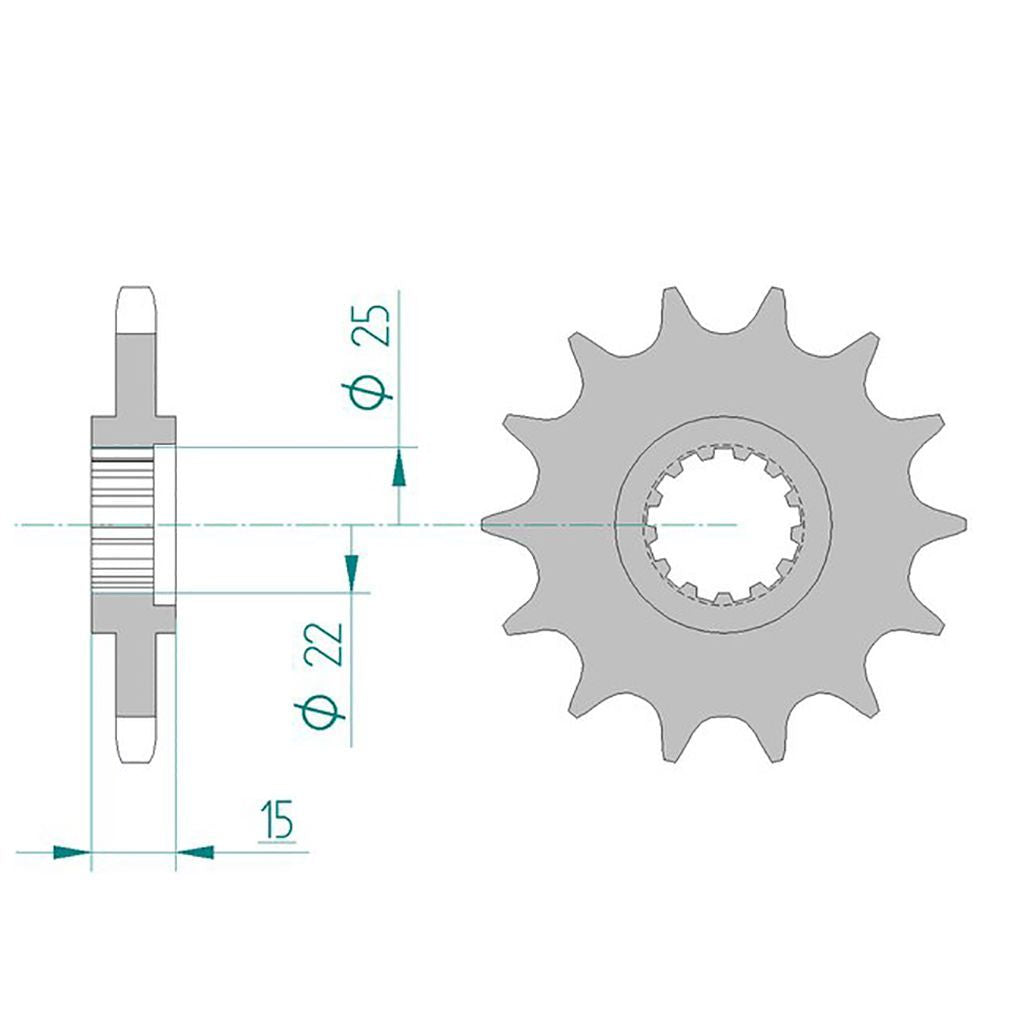

• Front sprocket: AFAM front sprocket #525 15 teeth - a24506.15
• Chain: AFAM chain 525 XHR3-G Xs-ring 106 with rivet link - a525xhr3.g.106

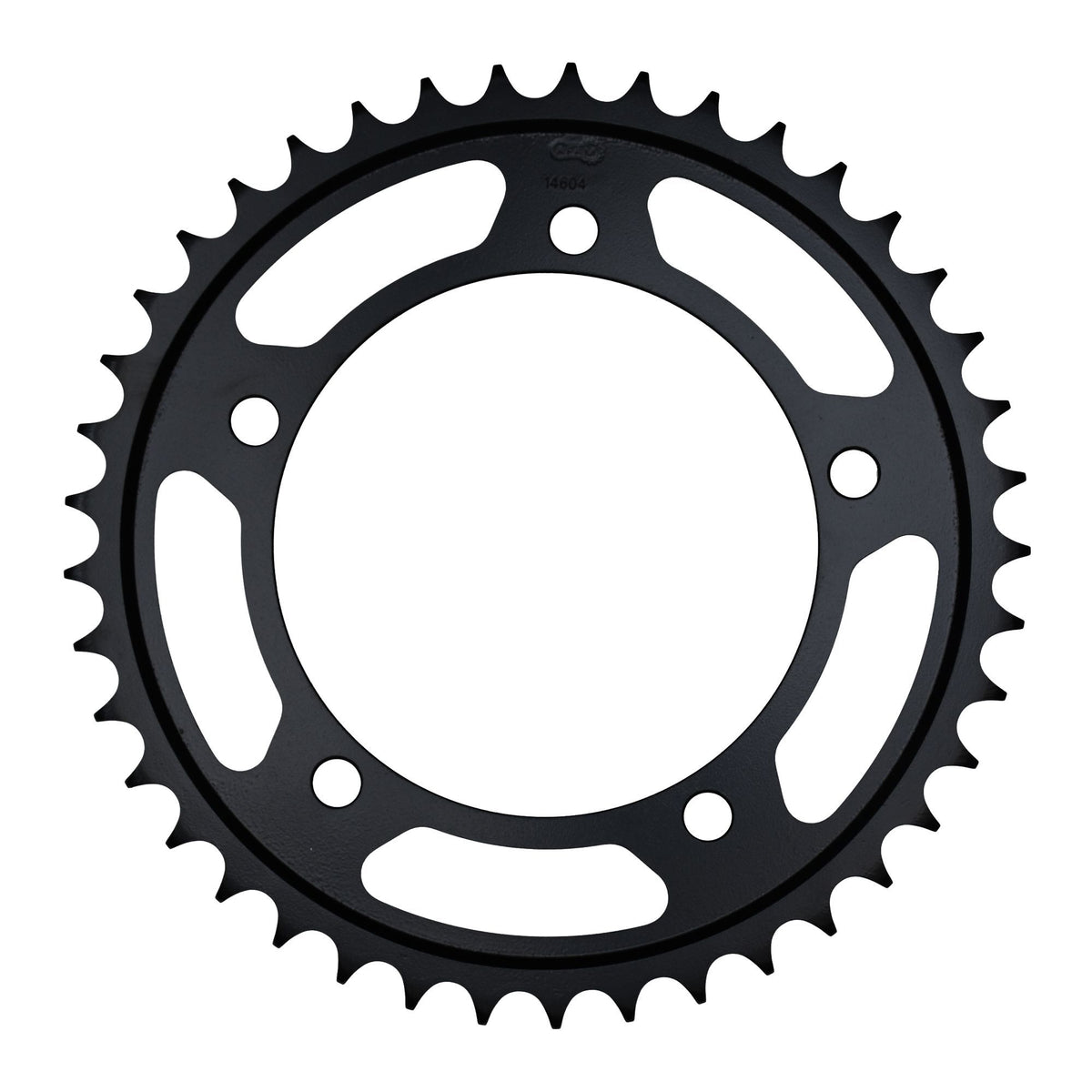

• Rear sprocket: AFAM rear sprocket STEEL #525 45 teeth - a14604.45
• Gear ratio front sprocket-chain-rear sprocket: 15-106-45

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical specifications:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Part number	KKF-51149

Suitable for

Triumph 501 - 750 cc TT 600 from VIN 165717 2004
