AFAM chain kit for Voxan Roadster 1000 99-07 525 XHR3G chain kit

AFAM chain kit for Voxan Roadster 1000 99-07 525 XHR3G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Voxan Roadster 1000 1999-2007 chain kit

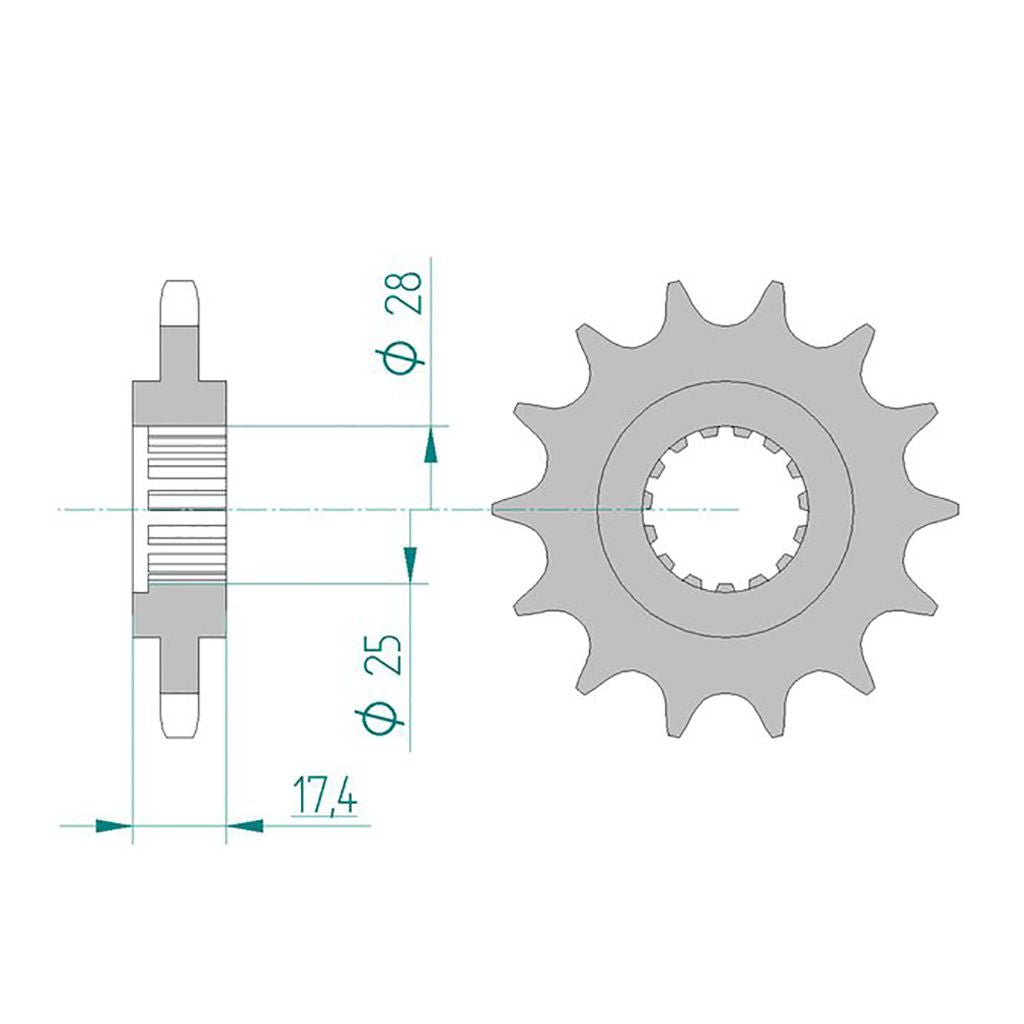

• Front sprocket: AFAM sprocket #525 18 teeth - a91800.18
• Chain: AFAM chain 525 XHR3-G Xs-ring 106 with rivet link - a525xhr3.g.106

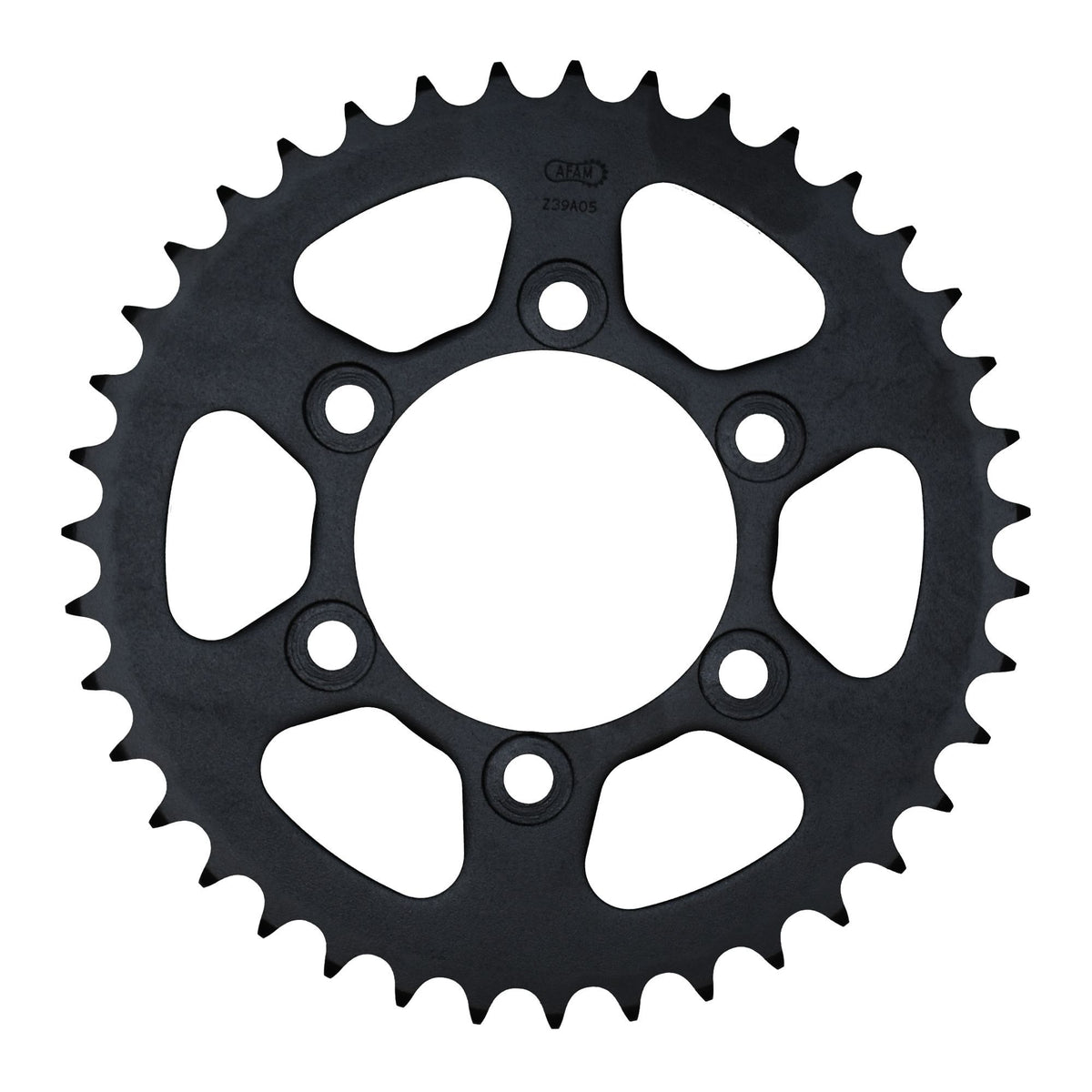

• Rear sprocket: AFAM sprocket STEEL #525 40 teeth - a92666.40
• Gear ratio sprocket-chain-rear sprocket: 18-106-40

AFAM 525 XHR3-G

Hyper-reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / street and sport

Technical data:
Pitch: 525
Pin length: 23.10 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.06 kg

Unless otherwise stated: The offered goods are accessory/spare parts from a third-party manufacturer, which were not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-51341

Fits

Voxan 751 - 1000 cc Roadster 1000 1999
Voxan 751 - 1000 cc Roadster 1000 2000
Voxan 751 - 1000 cc Roadster 1000 2001
Voxan 751 - 1000 cc Roadster 1000 2002
Voxan 751 - 1000 cc Roadster 1000 2003
Voxan 751 - 1000 cc Roadster 1000 2004
Voxan 751 - 1000 cc Roadster 1000 2005
Voxan 751 - 1000 cc Roadster 1000 2006
Voxan 751 - 1000 cc Roadster 1000 2007
