AFAM chain kit for Voxan Street Scrambler 1000 04-08 525 XSR2G chain kit

AFAM chain kit for Voxan Street Scrambler 1000 04-08 525 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a matching chain link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the Voxan Street Scrambler 1000 2004-2008 chain kit

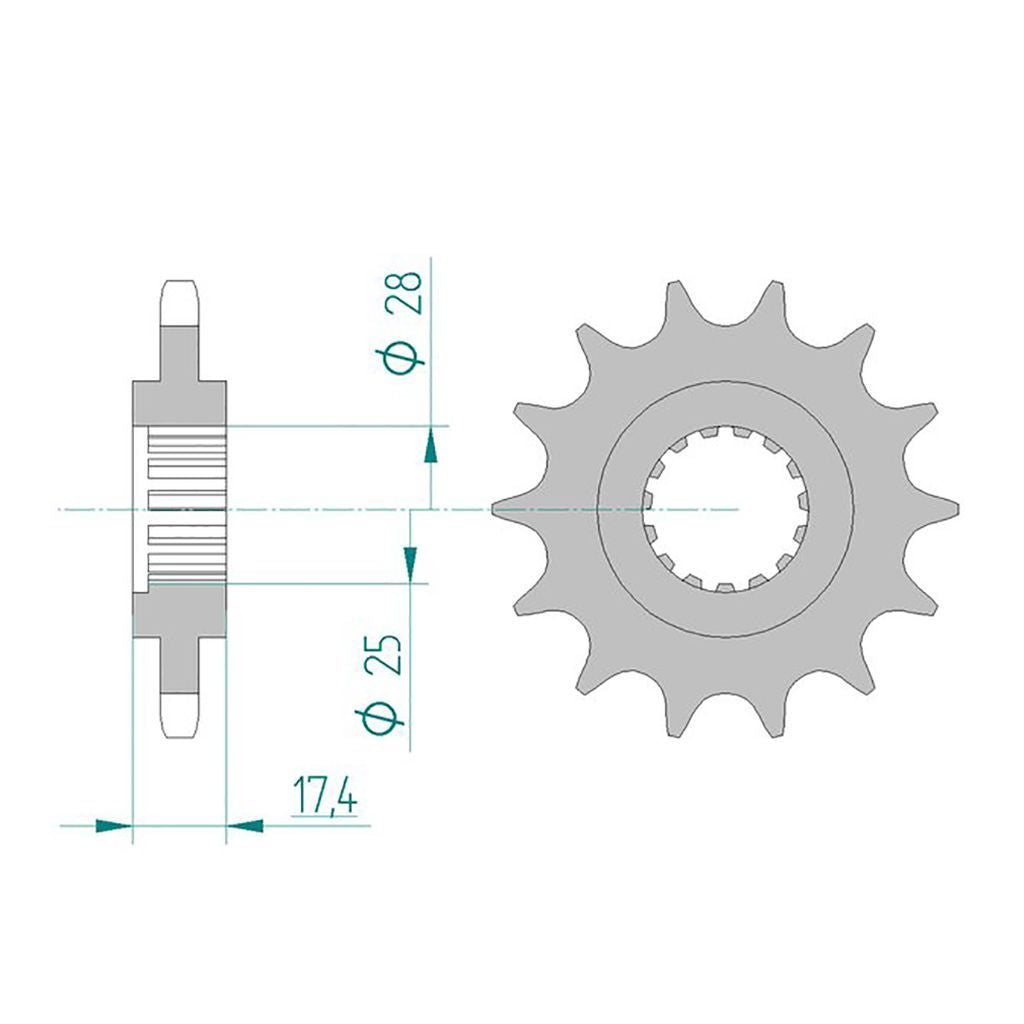

• Front sprocket: AFAM front sprocket #525 18 teeth - a91800.18
• Chain: AFAM chain 525 XSR2-G Xs-ring 106 with rivet link - a525xsr2.g.106

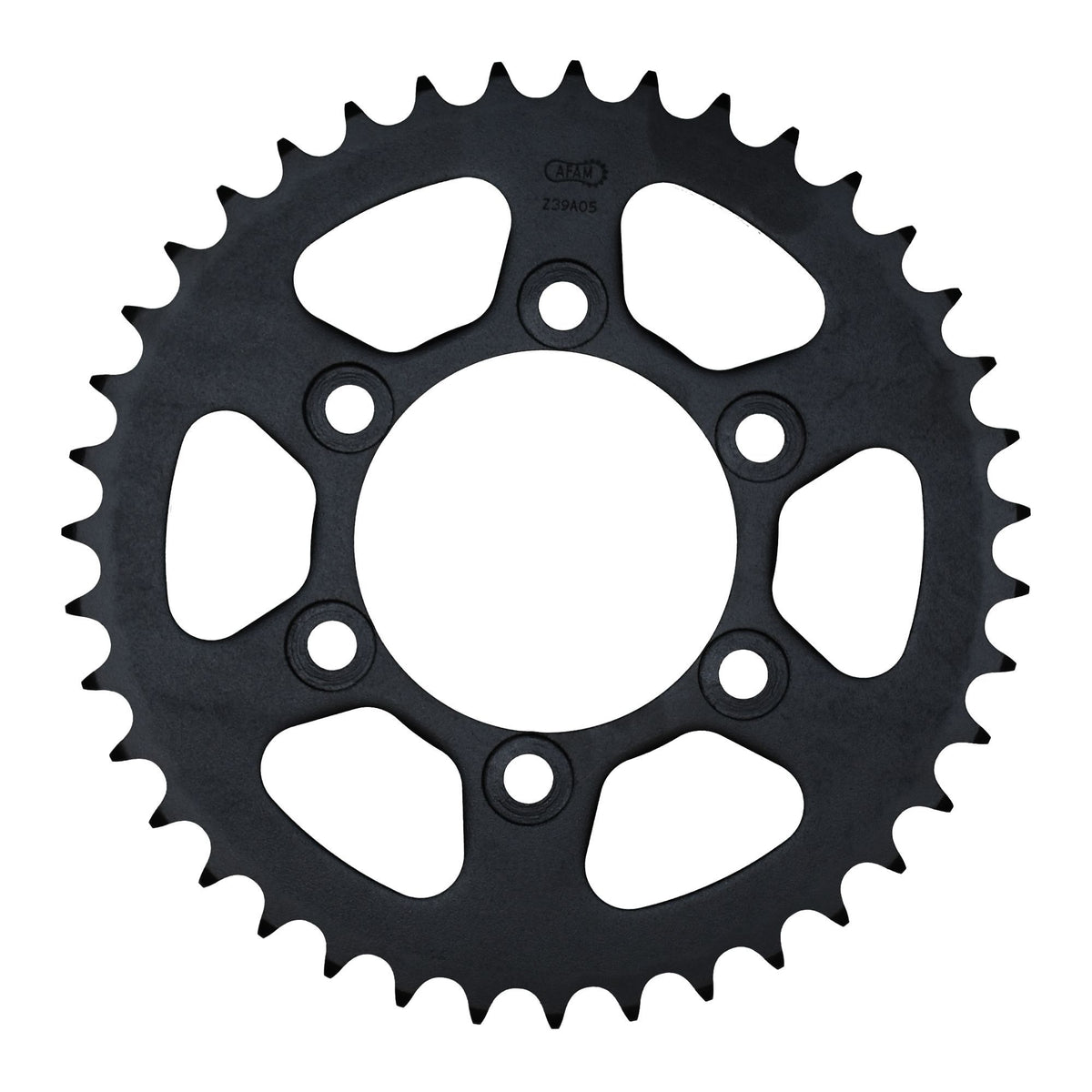

• Rear sprocket: AFAM rear sprocket STEEL #525 42 teeth - a92666.42
• Gear ratio sprocket-chain-rear sprocket: 18-106-42

AFAM 525 XSR2-G

Super reinforced chain with smooth-running properties
Xs-ring chain
Color: Gold
Application by displacement: up to 1000 cc / road and sport

Technical data:
Pitch: 525
Pin length: 22.75 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 1.90 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52990

Fits

Voxan 751 - 1000 cc Street Scrambler 1000 2004
Voxan 751 - 1000 cc Street Scrambler 1000 2005
Voxan 751 - 1000 cc Street Scrambler 1000 2006
Voxan 751 - 1000 cc Street Scrambler 1000 2007
Voxan 751 - 1000 cc Street Scrambler 1000 2008
