AFAM chain kit for Yamaha FJ 1200 86-87 530 XHR2G chain kit

AFAM Chain Kit for Yamaha FJ 1200 86-87 530 XHR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit for Yamaha FJ 1200 1XJ 1986-1987

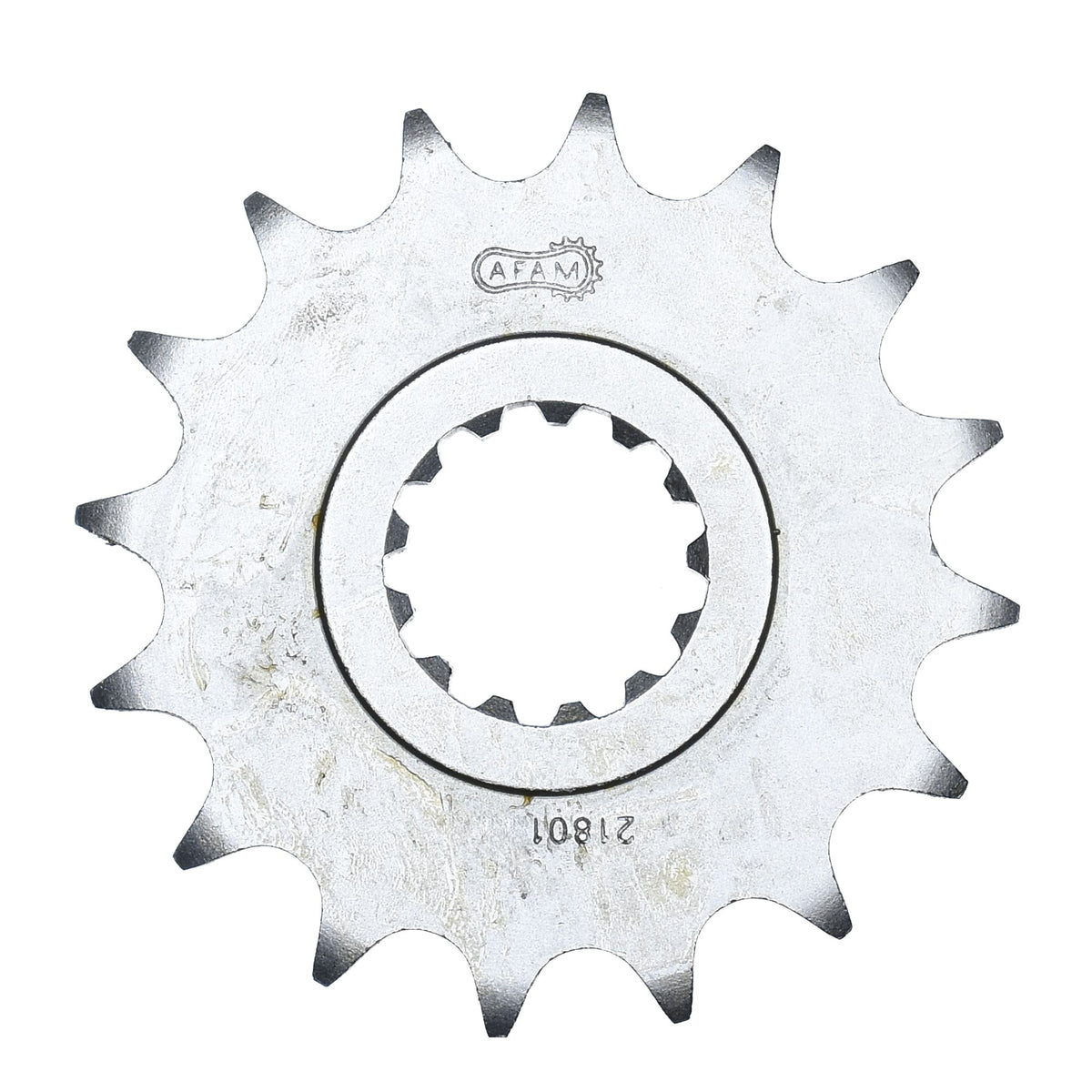

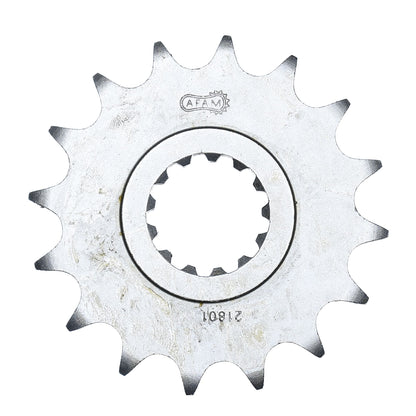

• Front sprocket: AFAM front sprocket #530 17 teeth - a21801.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 110 with rivet link - a530xhr2.g.110

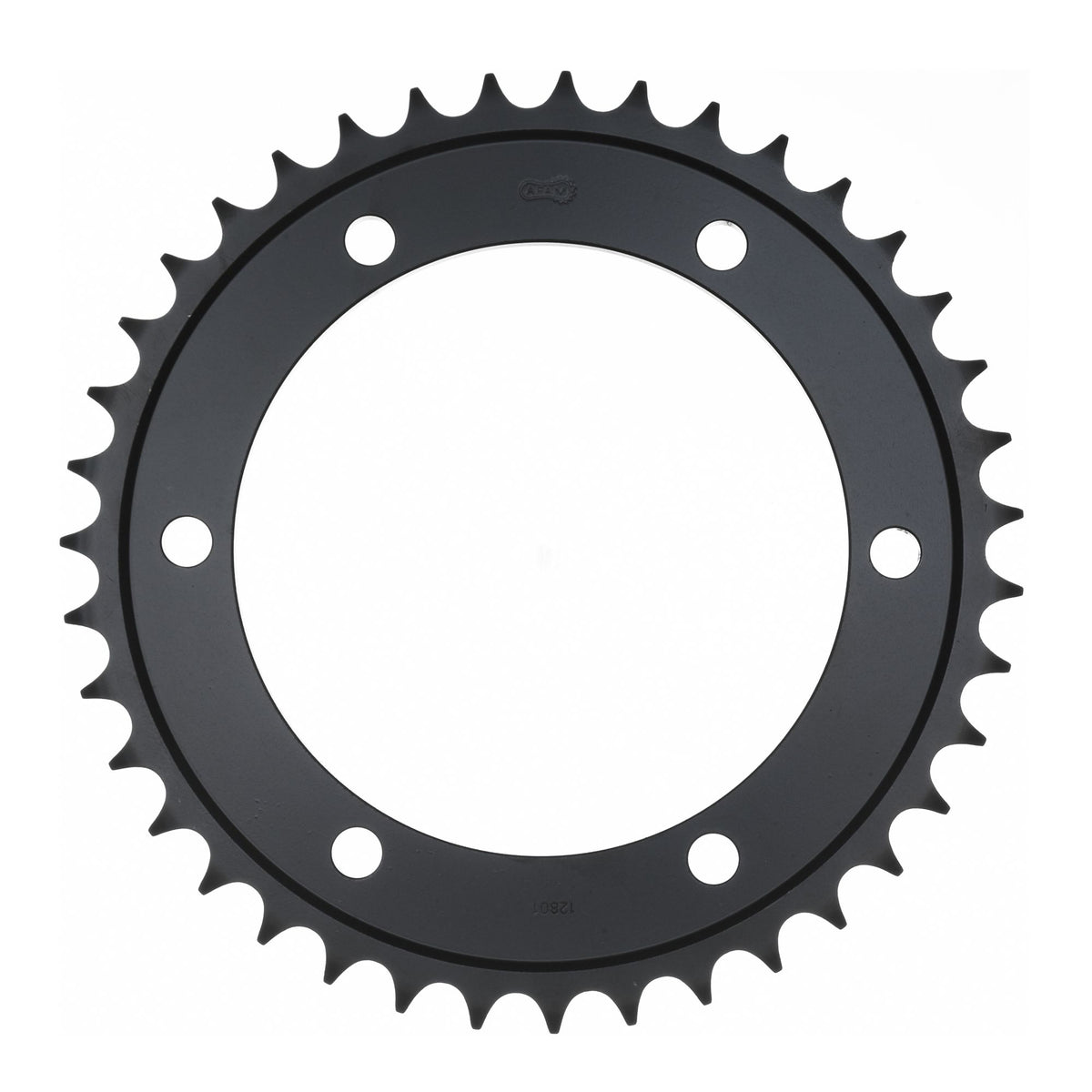

• Rear sprocket: AFAM rear sprocket STEEL #530 40 teeth - a12801.40
• Gear ratio front sprocket-chain-rear sprocket: 17-110-40

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name is solely for determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-51419

Suitable for

Yamaha over 1001 cc FJ 1200 1XJ 1986
Yamaha over 1001 cc FJ 1200 1XJ 1987
