AFAM chain kit for Yamaha FZ 750 Genesis 87-90 530 XMR3 chain kit

AFAM chain kit for Yamaha FZ 750 Genesis 87-90 530 XMR3 chain kit

Chain kit or chain set for the assigned model as per the item name. The chain kit consists of high-quality components. The chain is supplied open with an appropriate connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit for Yamaha FZ 750 Genesis 2KK 1987-1990

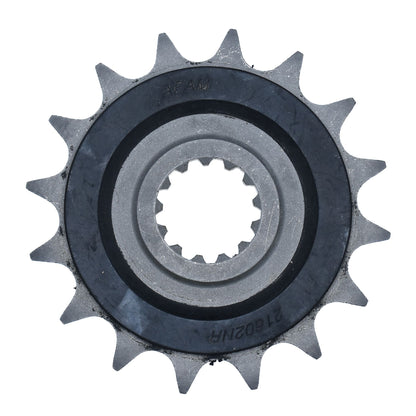

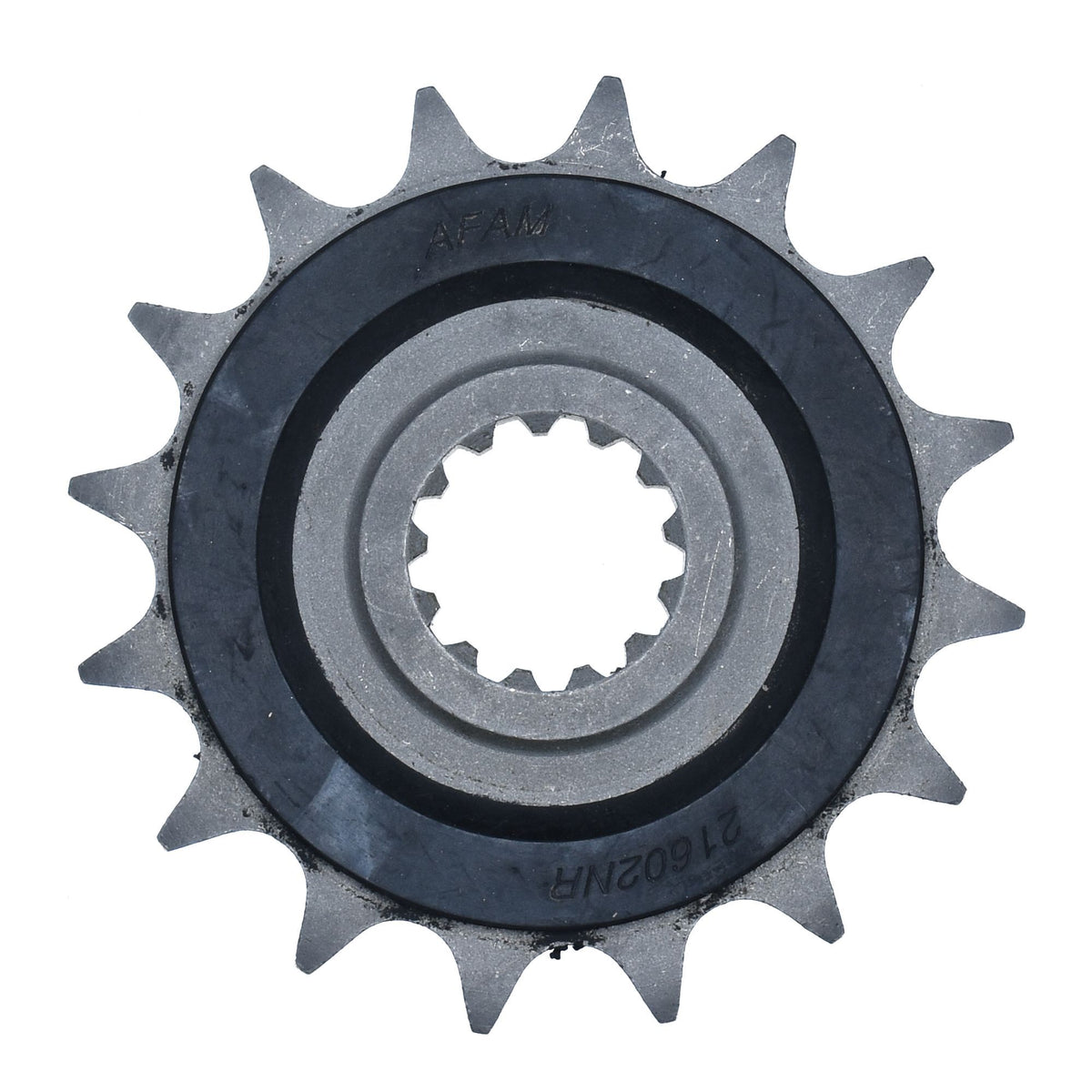

• Sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a21602oem.16
• Chain: AFAM chain 530 XMR3 Xs-ring 110 links w. rivet link - a530xmr3.110

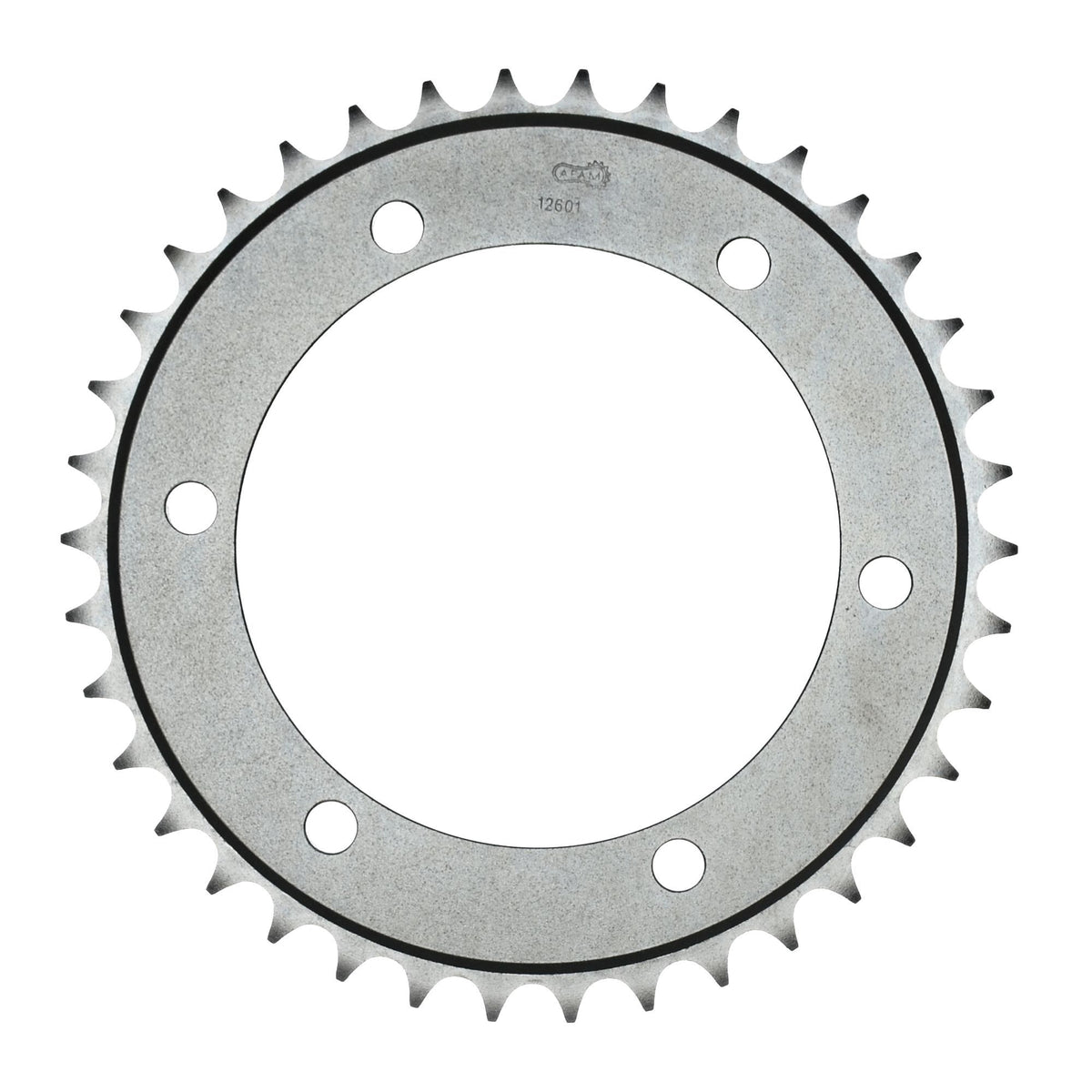

• Rear sprocket: AFAM STEEL rear sprocket #530 43 teeth - a12601.43
• Transmission ratio sprocket-chain-rear sprocket: 16-110-43

AFAM 530 XMR3

Reinforced chain with smooth-running properties
Xs-ring chain
Color: Steel
Application by engine displacement: up to 800 cc / street

Technical specifications:
Pitch: 530
Pin length: 25.50 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 43.00 kN
Weight per 100 links: 2.08 kg

Unless otherwise stated: The product offered is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The brand name is used exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical specifications

Brand	AFAM
Item number	KKF-48622

Suitable for

Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1987
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1988
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1989
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1990
