AFAM chain kit for Yamaha FZ 750 Genesis 87-90 530 XSR2G chain kit

AFAM chain kit for Yamaha FZ 750 Genesis 87-90 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding master link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha FZ 750 Genesis 2KK 1987-1990

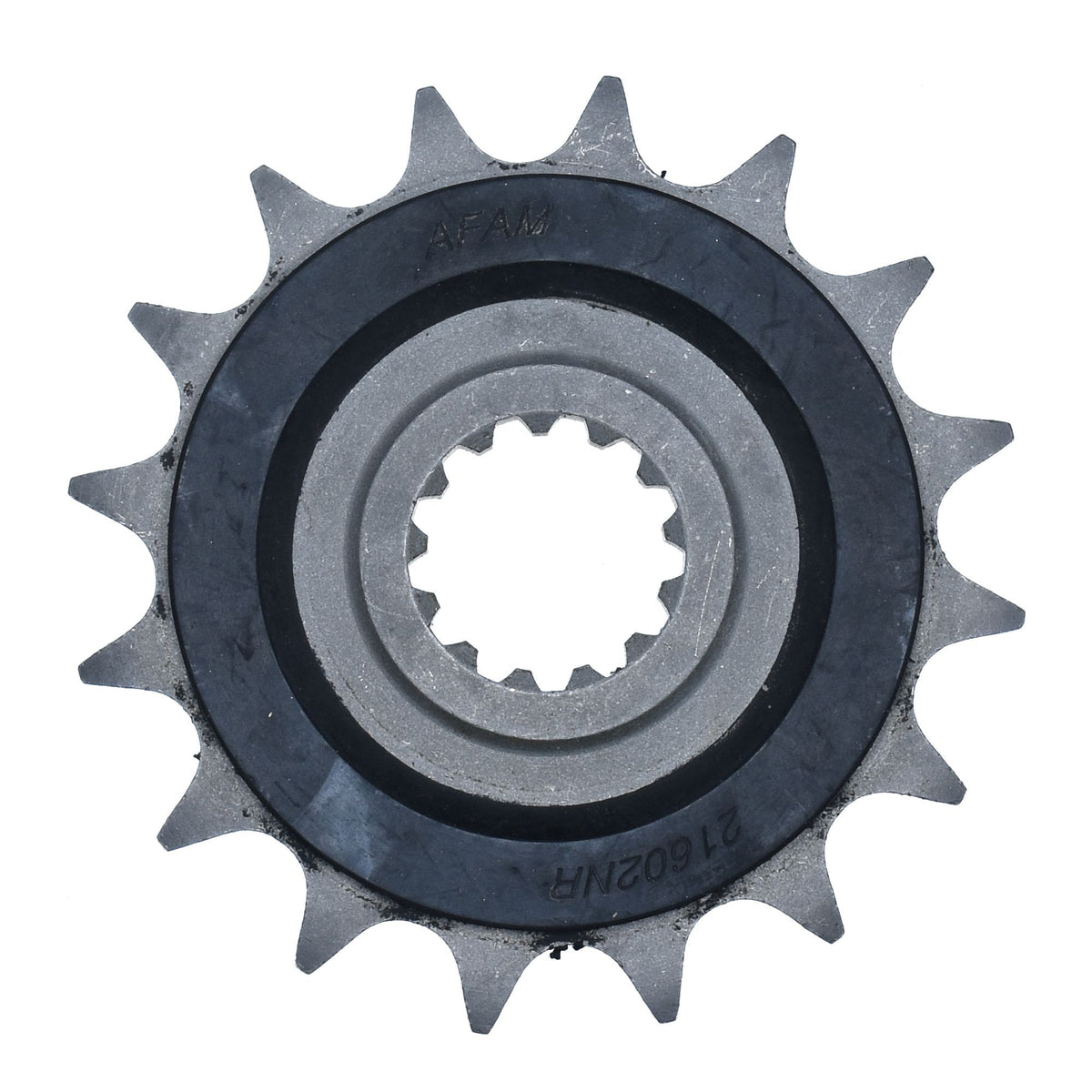

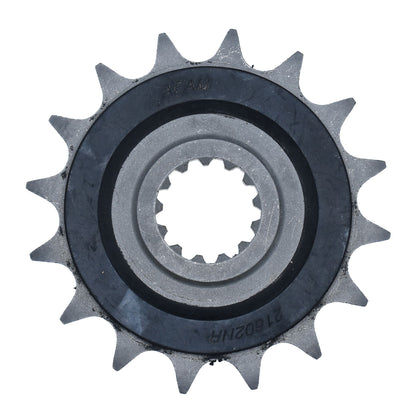

• Front sprocket: AFAM rubberized sprocket #530 Silent Sprocket 16 teeth - a21602oem.16
• Chain: AFAM chain 530 XSR2-G XS-ring 110 w. rivet link - a530xsr2.g.110

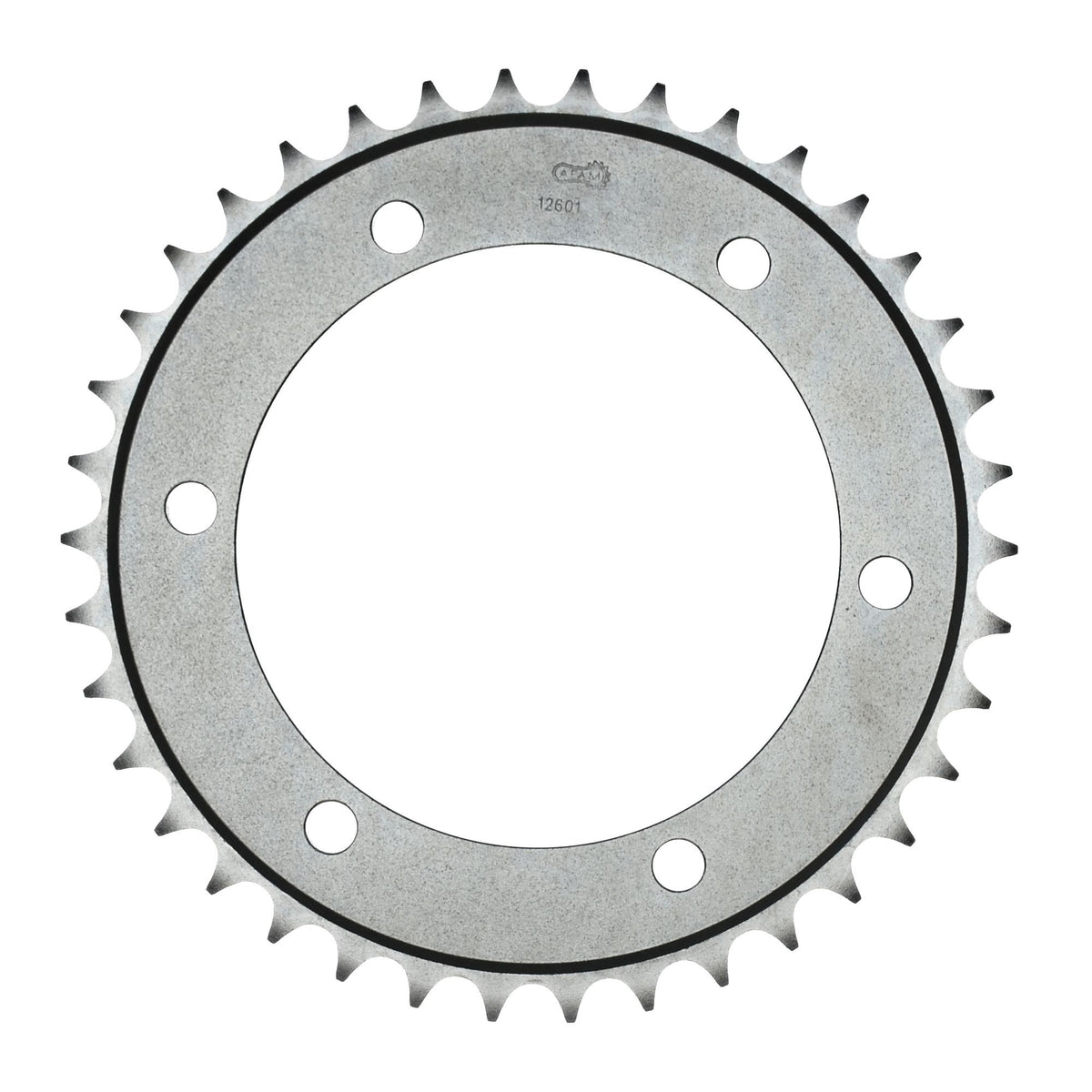

• Rear sprocket: AFAM STEEL sprocket #530 43 teeth - a12601.43
• Transmission ratio front sprocket-chain-rear sprocket: 16-110-43

AFAM 530 XSR2-G

Super reinforced chain with smooth-running properties
XS-ring chain
Color: Gold
Application by displacement: up to 1100 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, not produced on behalf of or with the approval of the motorcycle manufacturer. Mentioning the brand name is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-44514

Fits

Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1987
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1988
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1989
Yamaha 501 - 750 cc FZ 750 Genesis 2KK 1990
