AFAM chain kit for Yamaha FZ1 N 11-15 530 XHR2G chain kit

AFAM chain kit for Yamaha FZ1 N 11-15 530 XHR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility purposes only!

Components of the chain kit Yamaha FZ1 N RN16 2011-2015

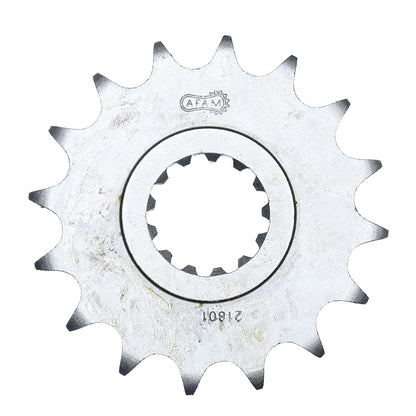

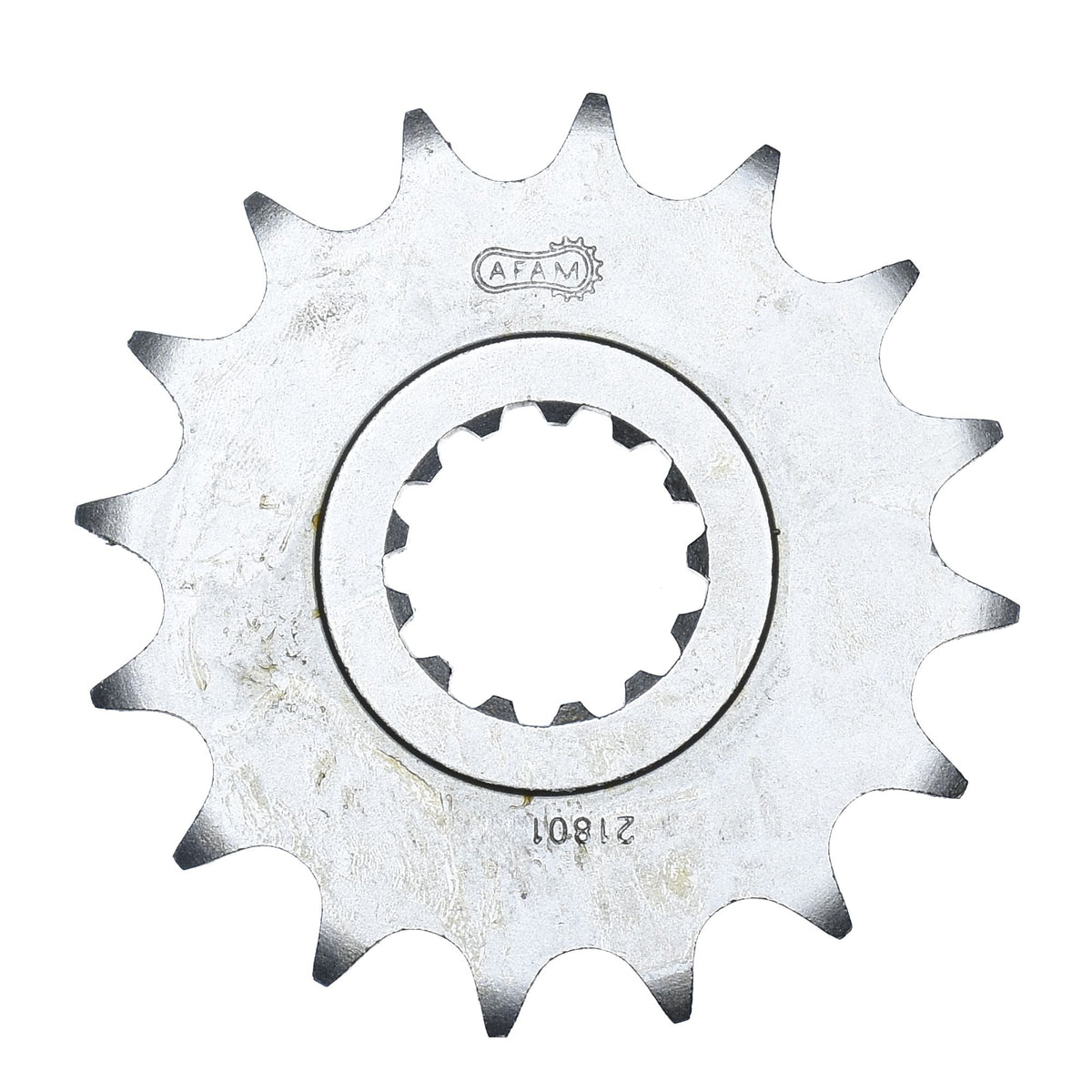

• Sprocket: AFAM sprocket #530 17 teeth - a21801.17
• Chain: AFAM chain 530 XHR2-G Xs-ring 122 links rivet link - a530xhr2.g.122

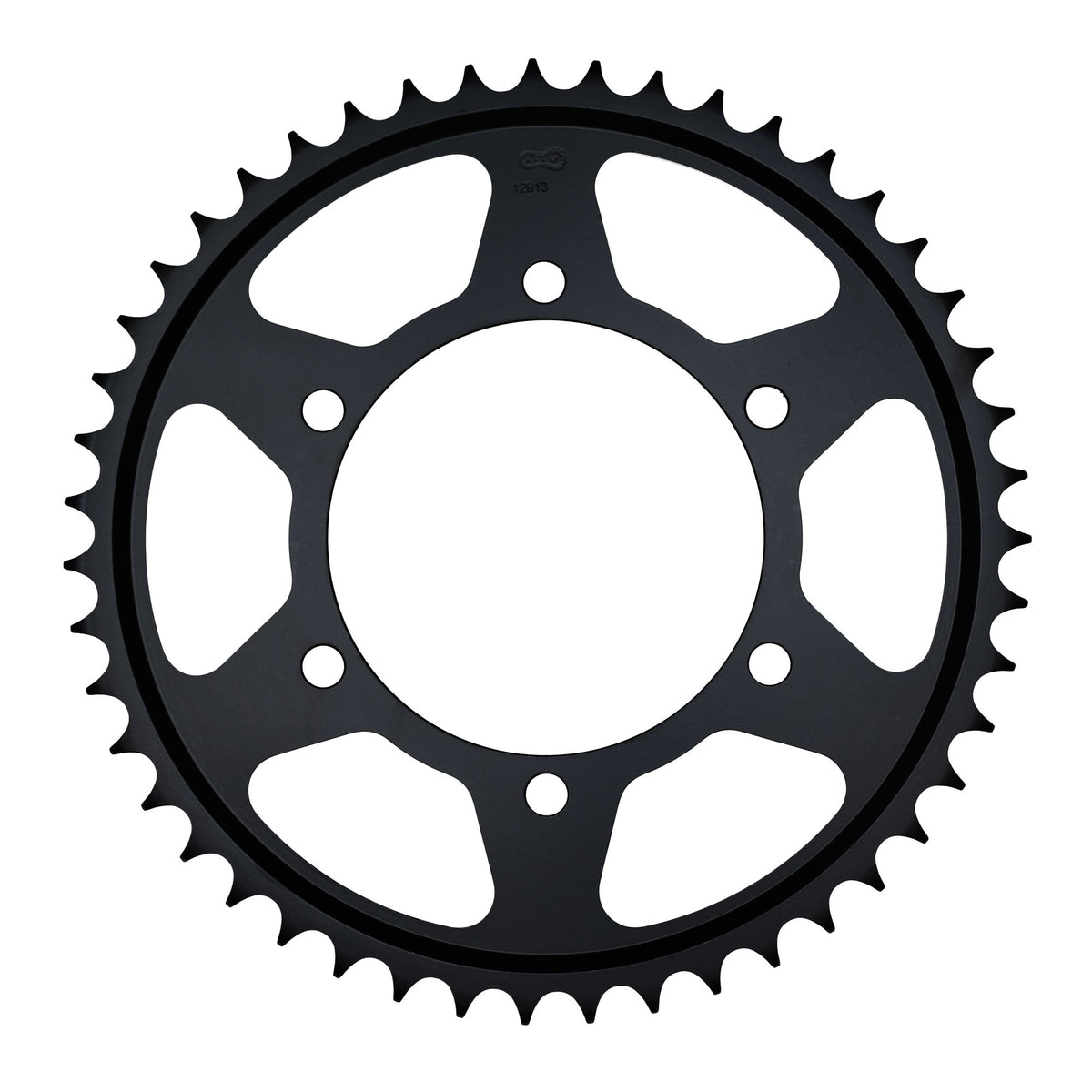

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a12813.45
• Gear ratio sprocket-chain-rear sprocket: 17-122-45

AFAM 530 XHR2-G

Hyper-reinforced chain with smooth-running properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by displacement: up to 1400 cc / road and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not manufactured on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is solely for the purpose of determining compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Article number	KKF-52997

Fits

Yamaha 751 - 1000 cc FZ1 N RN16 2011
Yamaha 751 - 1000 cc FZ1 N RN16 2012
Yamaha 751 - 1000 cc FZ1 N RN16 2013
Yamaha 751 - 1000 cc FZ1 N RN16 2014
Yamaha 751 - 1000 cc FZ1 N RN16 2015
