AFAM chain kit for Yamaha FZ1 S Fazer 08-15 530 XSR2G chain kit

AFAM Chain Kit for Yamaha FZ1 S Fazer 08-15 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - Manufacturer names are used solely to indicate compatibility!

Components of the chain kit for Yamaha FZ1 S Fazer RN16 2008-2015

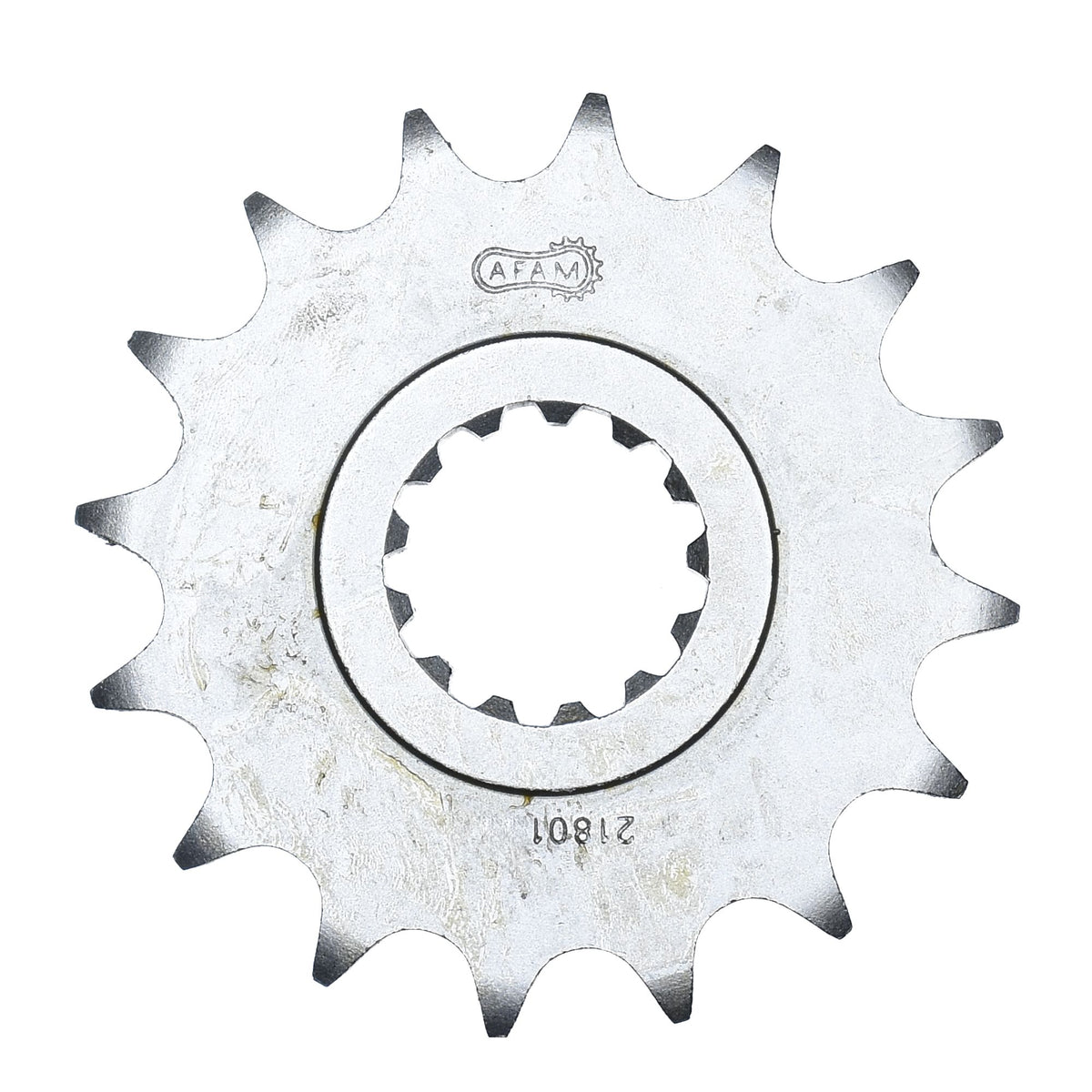

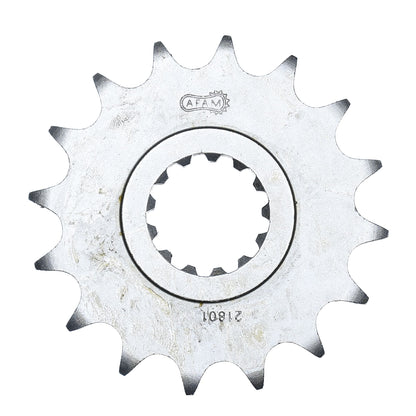

• Front sprocket: AFAM front sprocket #530 17 teeth - a21801.17
• Chain: AFAM chain 530 XSR2-G Xs-Ring 122 links w. rivet link - a530xsr2.g.122

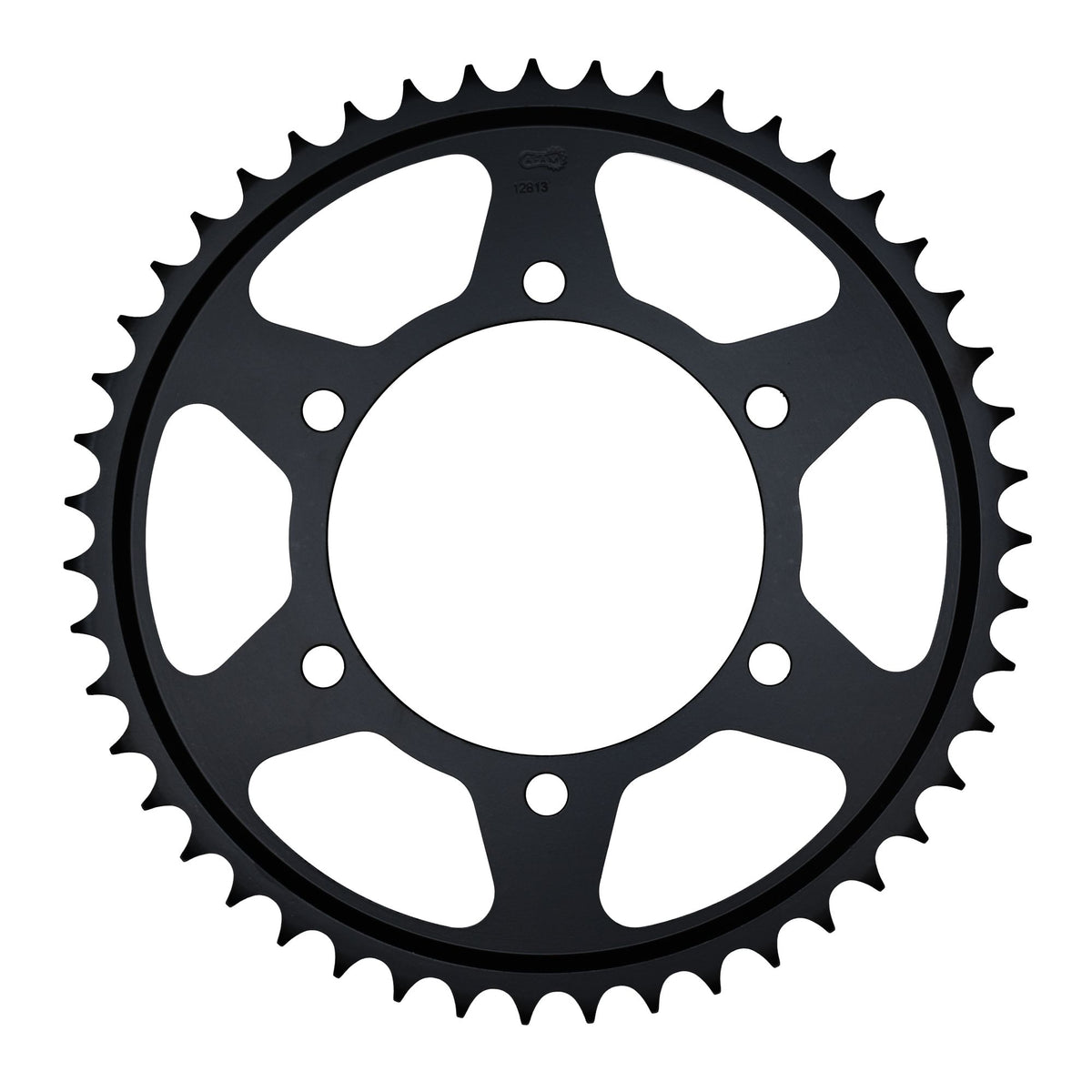

• Rear sprocket: AFAM rear sprocket STEEL #530 45 teeth - a12813.45
• Gear ratio front sprocket-chain-rear sprocket: 17-122-45

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-Ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-51356

Fits

Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2008
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2009
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2010
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2011
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2012
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2013
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2014
Yamaha 751 - 1000 cc FZ1 S Fazer RN16 2015
