AFAM chain kit for Yamaha FZ6 Fazer ABS 2006 530 XSR2G chain kit

AFAM Chain Kit for Yamaha FZ6 Fazer ABS 2006 530 XSR2G Chain Kit

Chain kit or chain set for the assigned model as per item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain master link.

Unless otherwise stated: Not an original part - manufacturer names are mentioned only to indicate compatibility!

Components of the chain kit Yamaha FZ6 Fazer ABS RJ076 2006-2006

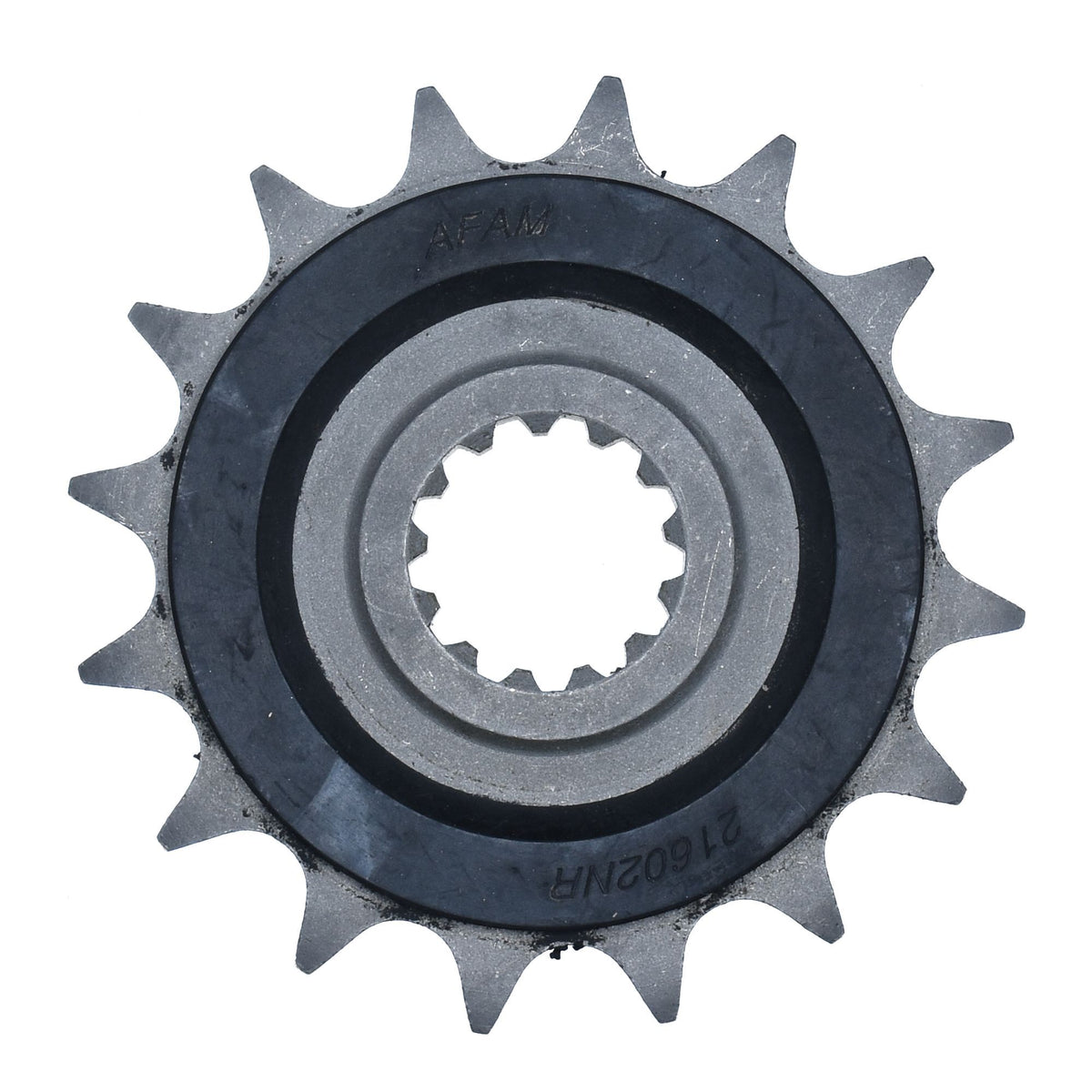

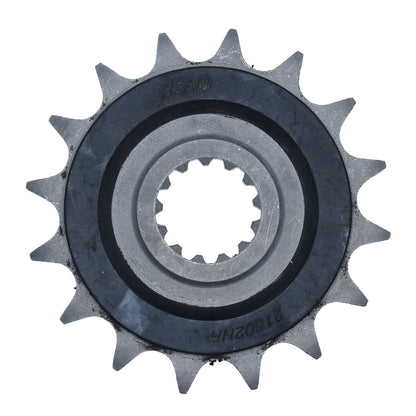

• Sprocket: AFAM sprocket rubber #530 Silent Sprocket 16 teeth - a21602oem.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 118 w. rivet link - a530xsr2.g.118

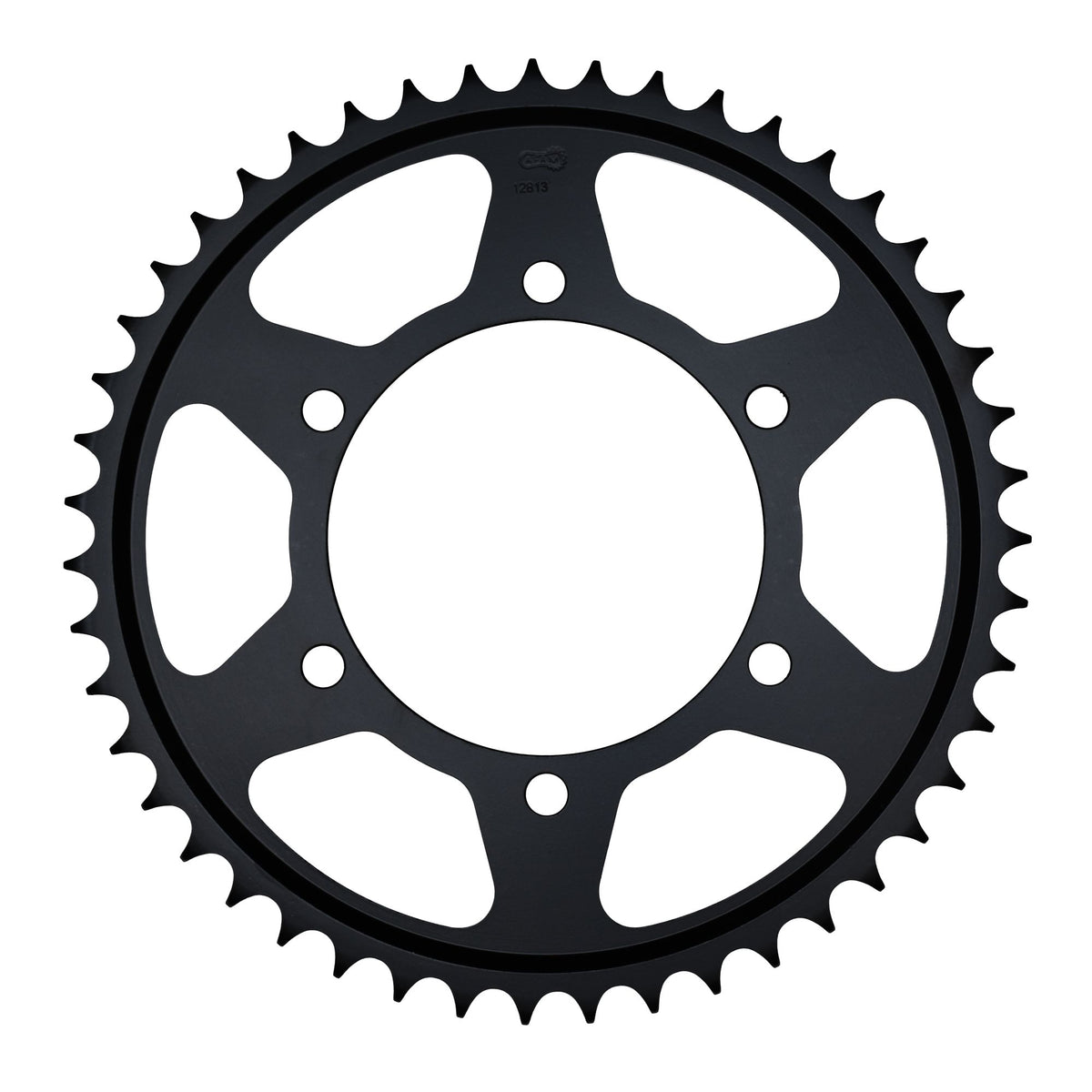

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a12813.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. Mention of the brand name serves exclusively to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Item number	KKF-43884

Suitable for

Yamaha 501 - 750 cc FZ6 Fazer ABS RJ076 2006
