AFAM chain kit for Yamaha FZ6 N 04-06 530 XHR2G chain kit

AFAM chain kit for Yamaha FZ6 N 04-06 530 XHR2G chain kit

Chain kit or chain set for the assigned model according to the item name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding chain link.

Unless otherwise stated: Not an original part - manufacturer names are used only to indicate compatibility!

Components of the chain kit Yamaha FZ6 N RJ074 2004-2006

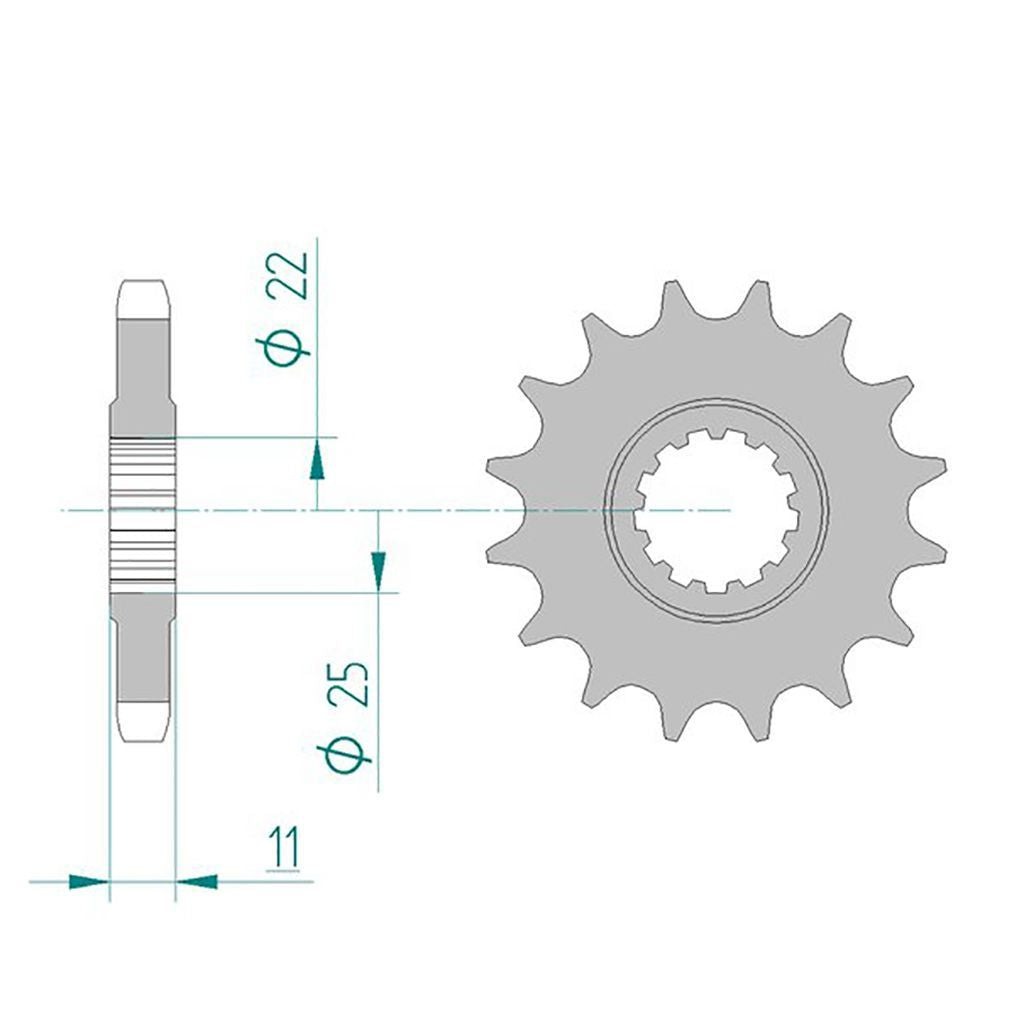

• Front sprocket: AFAM front sprocket #530 16 teeth - a21602.16
• Chain: AFAM chain 530 XHR2-G Xs-ring 118 with rivet link - a530xhr2.g.118

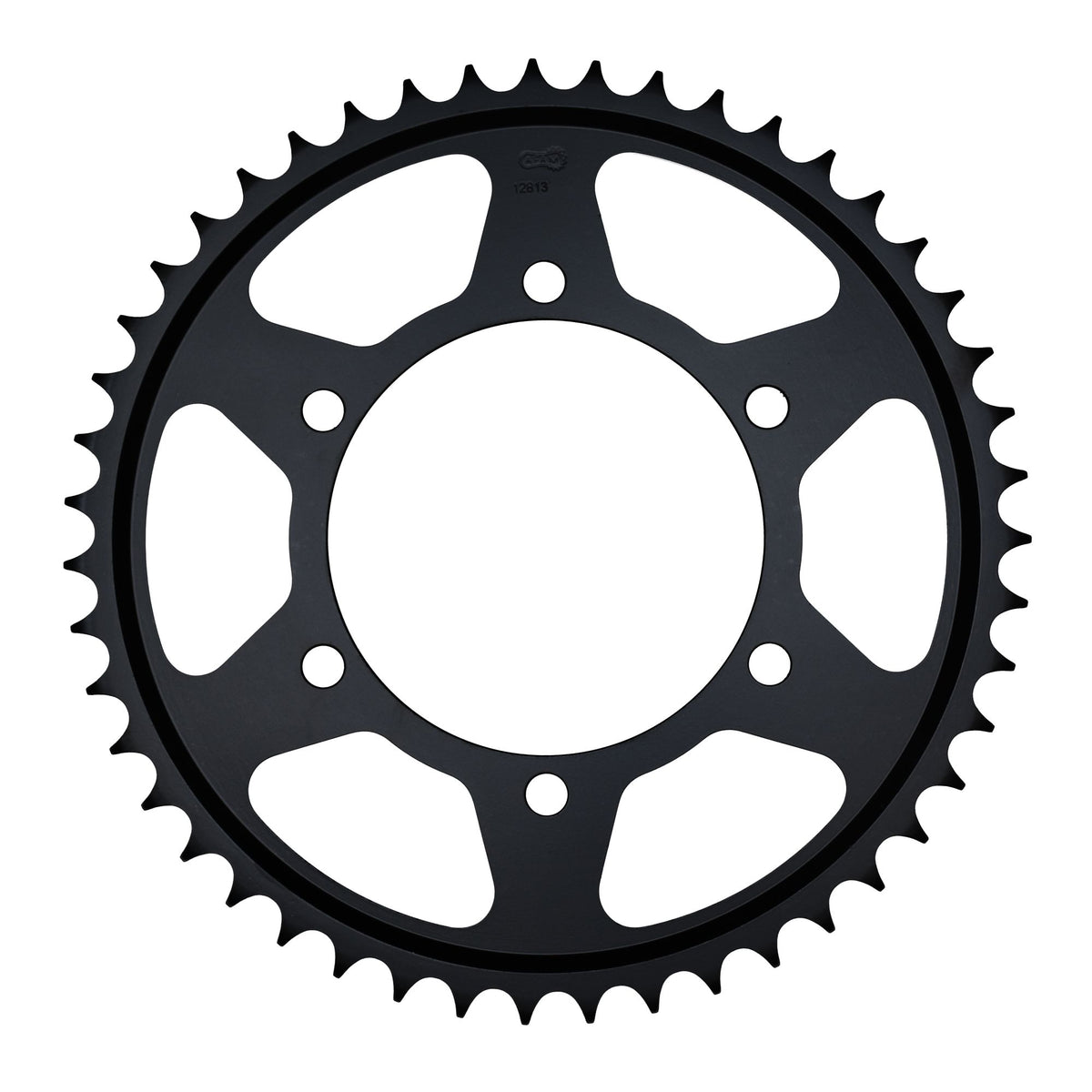

• Rear sprocket: AFAM rear sprocket STEEL #530 46 teeth - a12813.46
• Gear ratio sprocket-chain-rear sprocket: 16-118-46

AFAM 530 XHR2-G

Hyper reinforced chain with low-friction properties. The "all-rounder"!
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1400 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.70 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.4 mm
Plate thickness: outer: 2.6 mm
Tensile strength: 48.90 kN
Weight per 100 links: 2.16 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand name serves solely to determine compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-54330

Fits

Yamaha 501 - 750 cc FZ6 N RJ074 2004
Yamaha 501 - 750 cc FZ6 N RJ074 2005
Yamaha 501 - 750 cc FZ6 N RJ074 2006
