AFAM chain kit for Yamaha FZ6 NS 05-06 530 XSR2G chain kit

AFAM chain kit for Yamaha FZ6 NS 05-06 530 XSR2G chain kit

Chain kit or chain set for the assigned model as per the article name. The chain kit consists of high-quality components. The chain is supplied open with a corresponding connecting link.

Unless otherwise stated: Not an original part - manufacturer names are used for compatibility representation only!

Components of the chain kit for Yamaha FZ6 NS RJ074 2005-2006

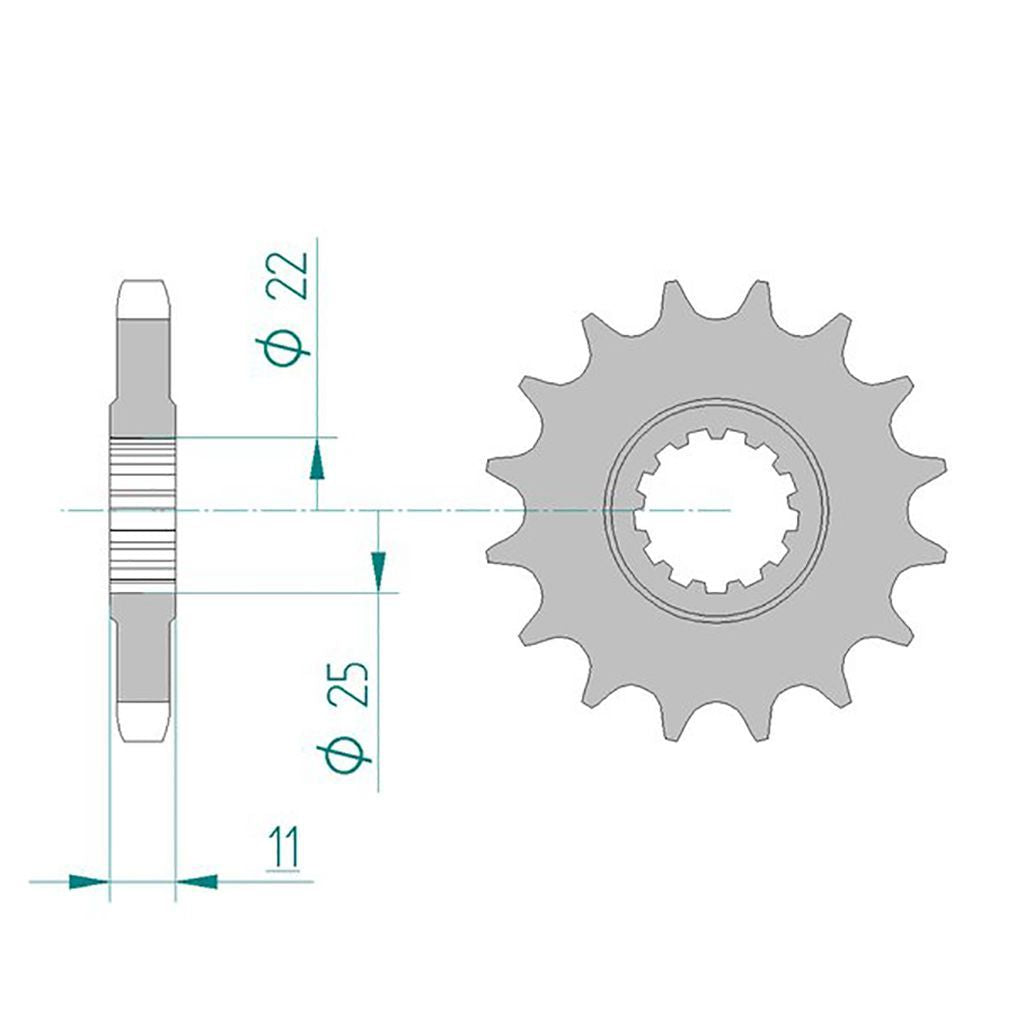

• Front sprocket: AFAM sprocket #530 16 teeth - a21602.16
• Chain: AFAM chain 530 XSR2-G Xs-ring 118 with rivet link - a530xsr2.g.118

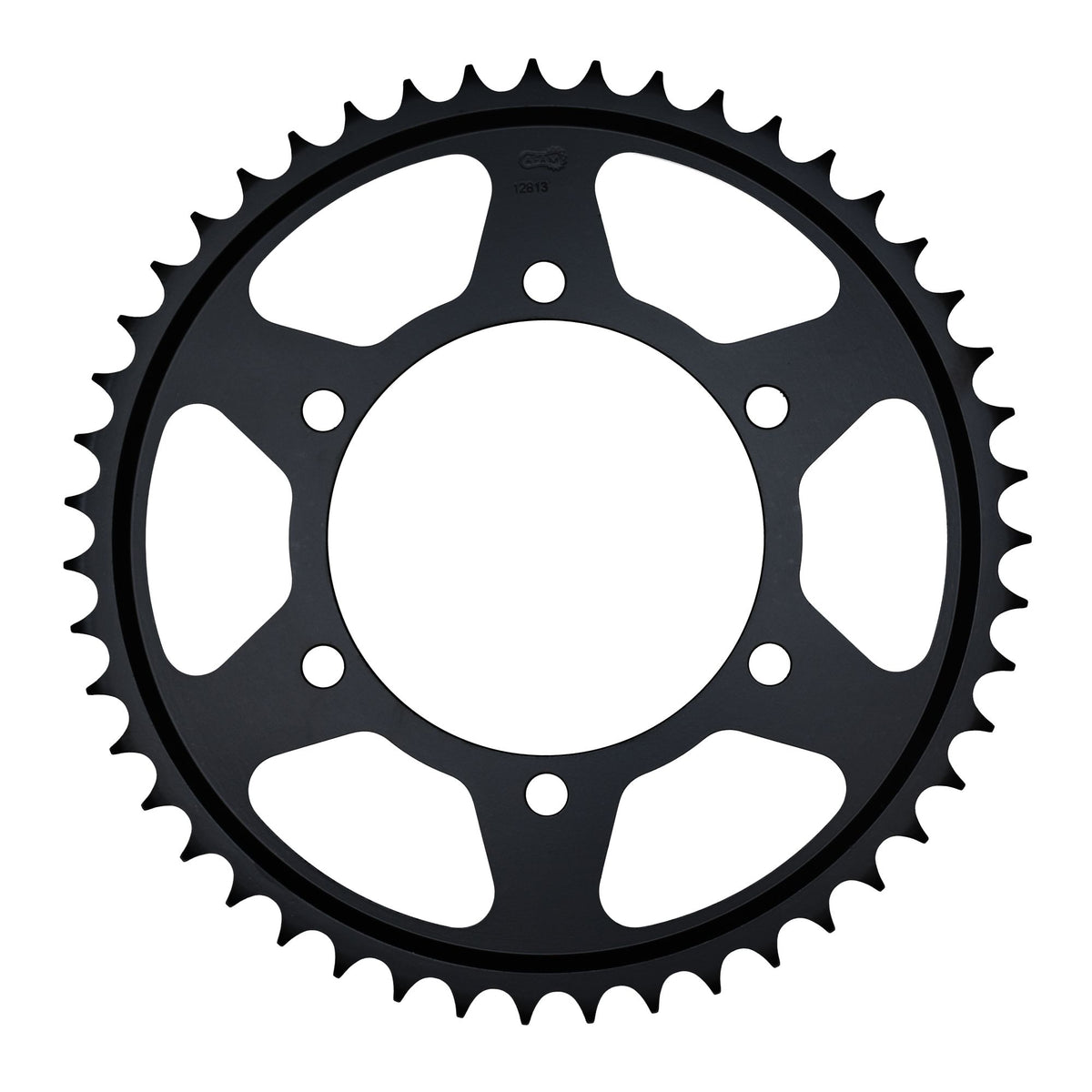

• Rear sprocket: AFAM steel sprocket #530 46 teeth - a12813.46
• Gear ratio front sprocket-chain-rear sprocket: 16-118-46

AFAM 530 XSR2-G

Super reinforced chain with low-friction properties
Xs-ring chain
Color: Gold
Application by engine displacement: up to 1100 cc / street and sport

Technical data:
Pitch: 530
Pin length: 24.40 mm
Roller Ø: 10.20 mm
Plate thickness: inner: 2.2 mm
Plate thickness: outer: 2.4 mm
Tensile strength: 41.80 kN
Weight per 100 links: 2.05 kg

Unless otherwise stated: The offered product is an accessory/spare part from a third-party manufacturer, which was not produced on behalf of or with the approval of the motorcycle manufacturer. The mention of the brand is exclusively for the determination of compatibility.

DC-AFAM NV, Venecoweg 22A , 9810 Nazareth BE, service@afam.com

Technical data

Brand	AFAM
Part number	KKF-54342

Suitable for

Yamaha 501 - 750 cc FZ6 NS RJ074 2005
Yamaha 501 - 750 cc FZ6 NS RJ074 2006
